Connector Terminal Identification
>>
C100 To C603
>>
C501 (Utility W/O RKE)
C501 (Utility W/O RKE)

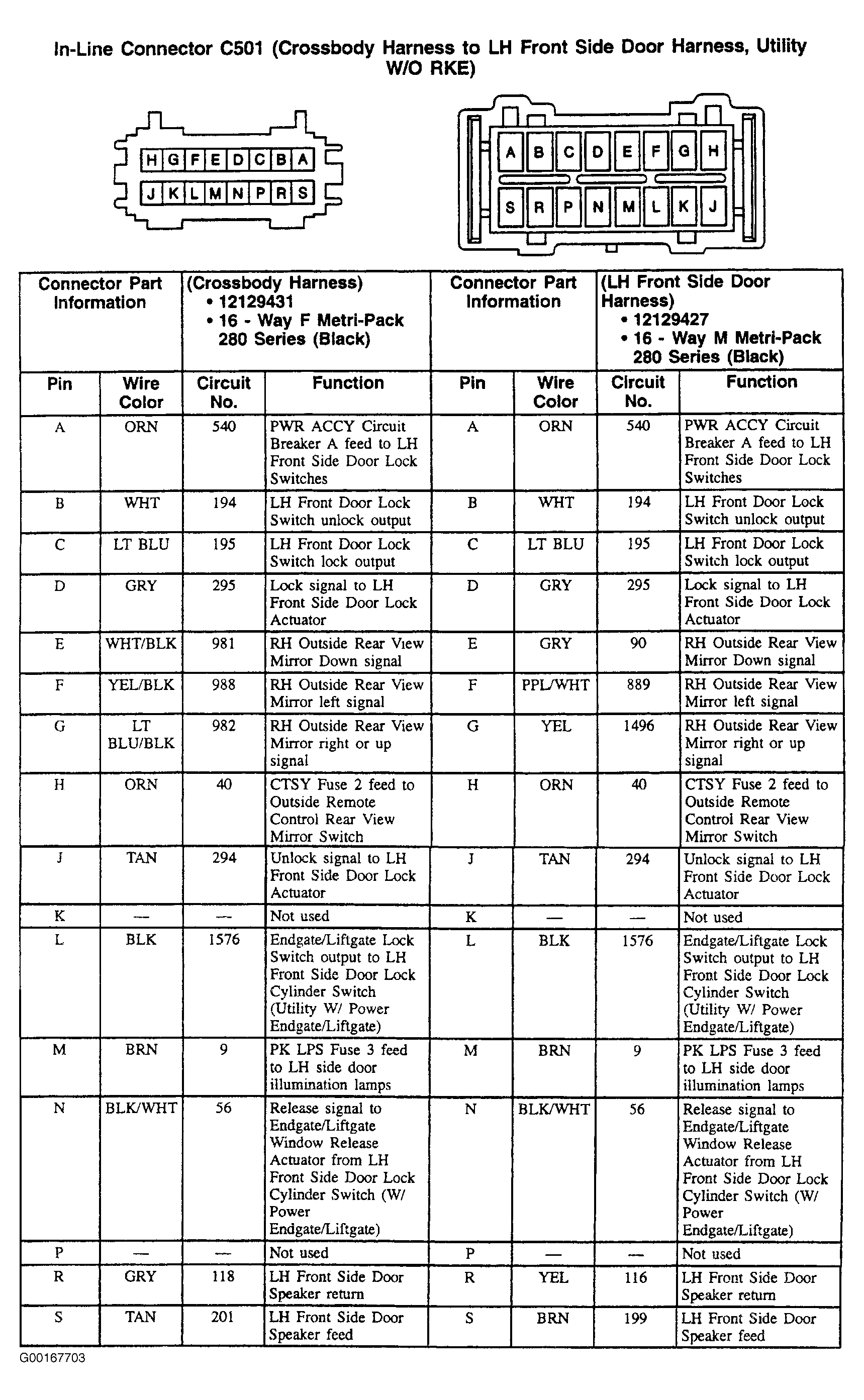

Fig 1: C501 (Utility W/O RKE) - 16-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
