Fuse Block

Fuse block is located at driver's end of instrument panel.

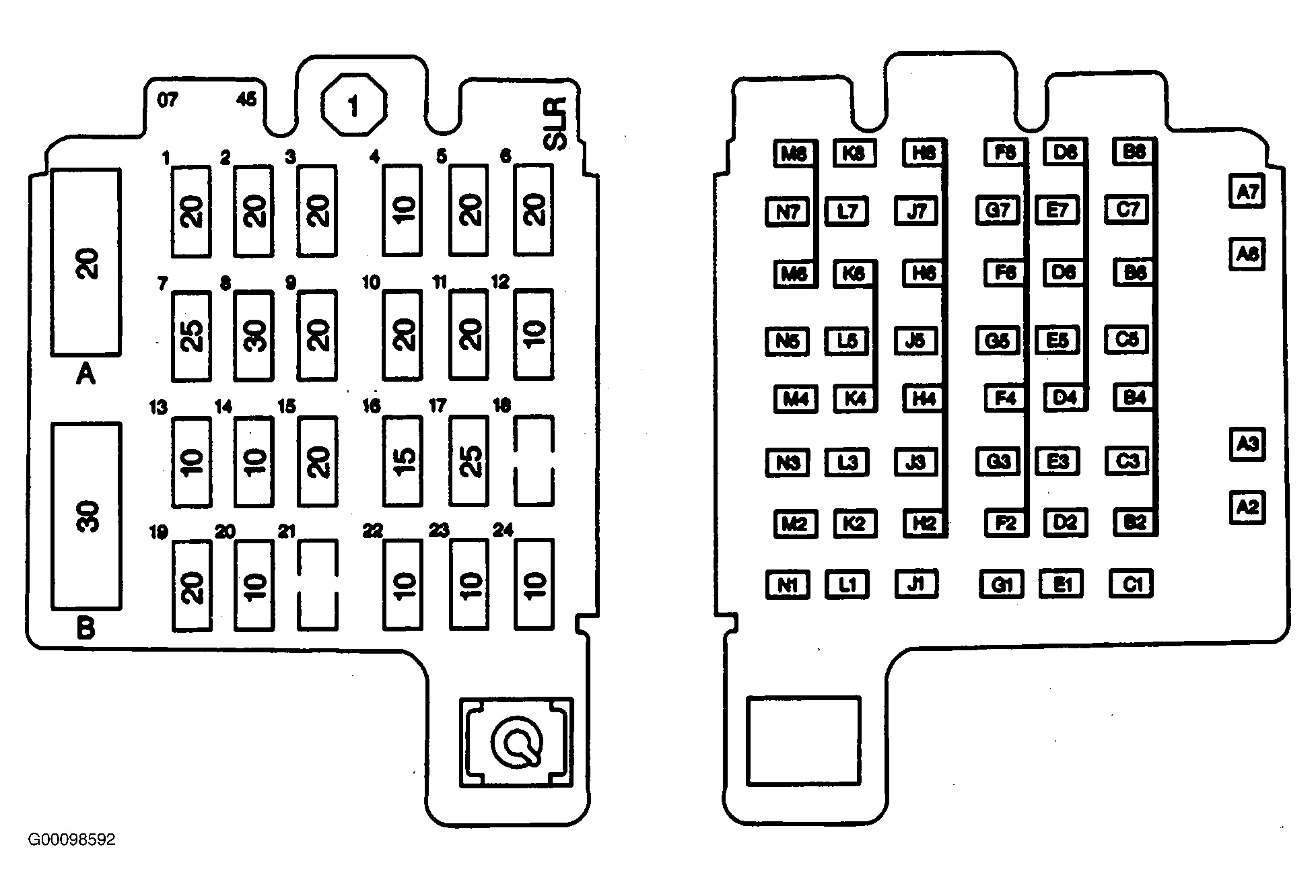

Fig 1: Fuse Block View
G00098592Courtesy of GENERAL MOTORS CORP.

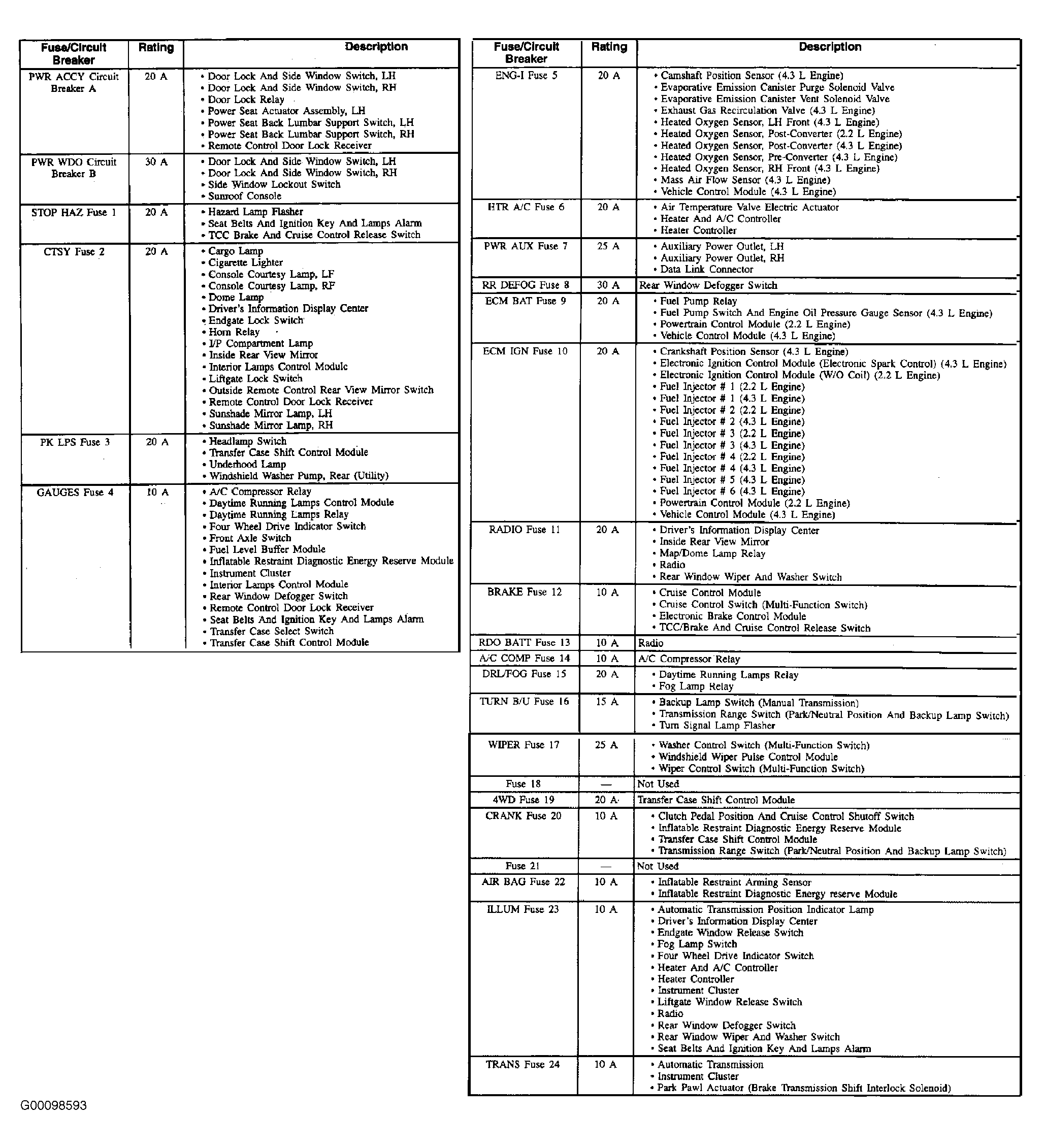

Fig 2: Fuse Block Identification
G00098593Courtesy of GENERAL MOTORS CORP.
