VCM 32-Pin Connector

Fig 1: VCM 32-Pin Connector - Terminal Identification (1 Of 4)
G00153552Courtesy of GENERAL MOTORS CORP.

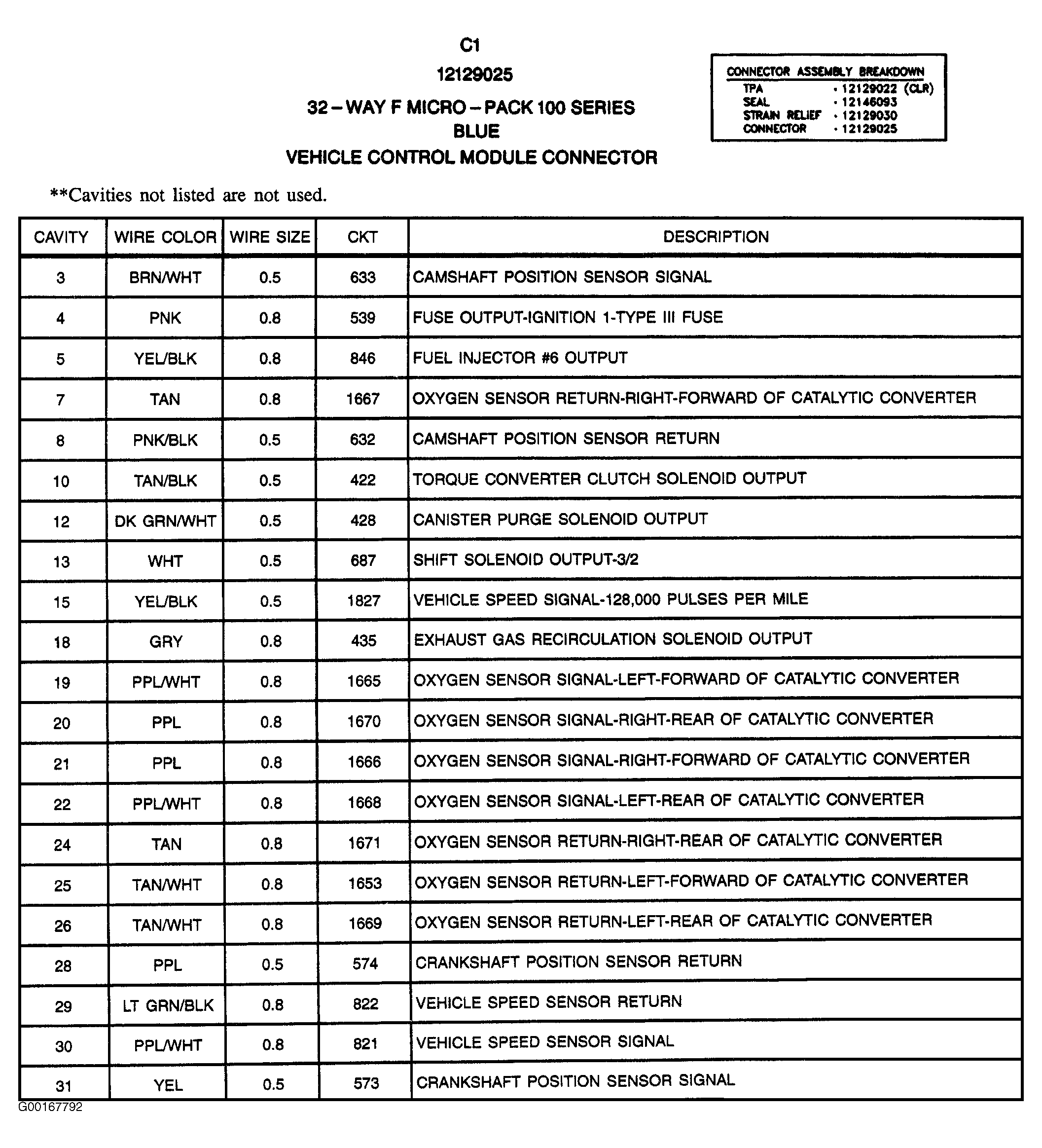

Fig 2: VCM 32-Pin Connector C1 (Blue) - Legend (2 Of 4)
G00167792Courtesy of GENERAL MOTORS CORP.

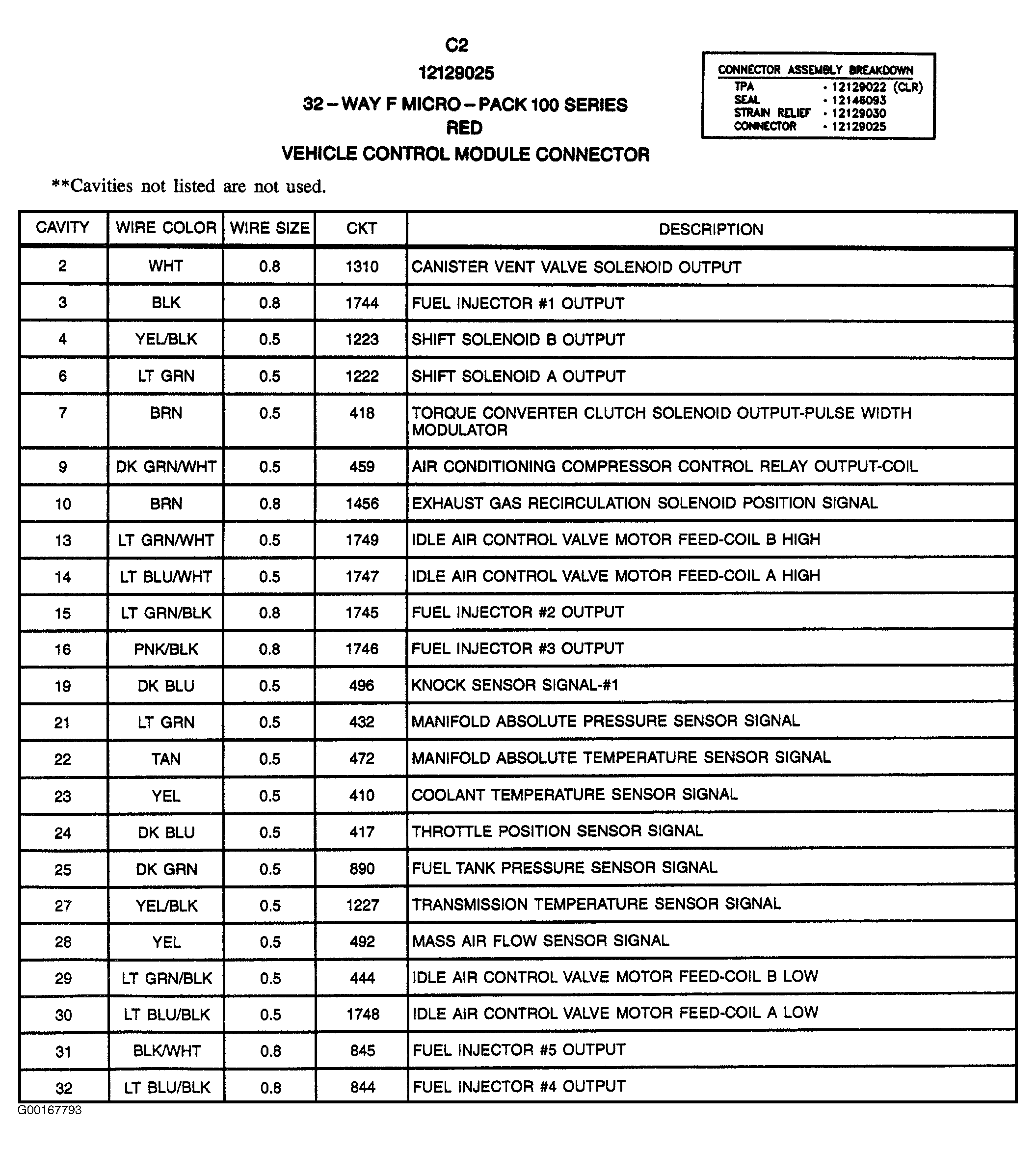

Fig 3: VCM 32-Pin Connector C2 (Red) - Legend (3 Of 4)
G00167793Courtesy of GENERAL MOTORS CORP.

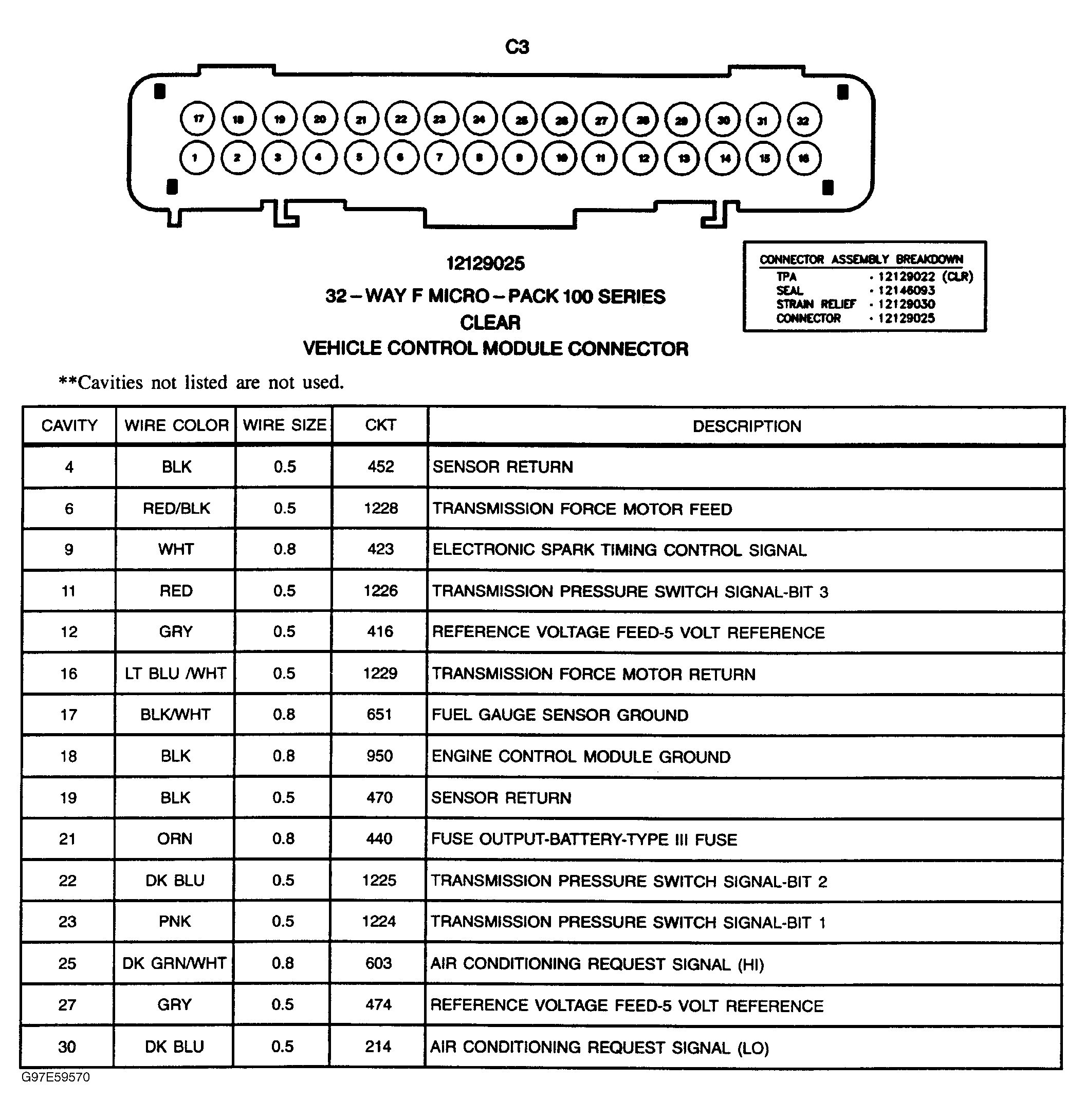

Fig 4: VCM 32-Pin Connector C3 (Clear) - Legend (4 Of 4)
G97E59570Courtesy of GENERAL MOTORS CORP.
