VCM 24-Pin Connector

Fig 1: VCM 24-Pin Connector - Terminal Identification (1 Of 2)
G00153556Courtesy of GENERAL MOTORS CORP.

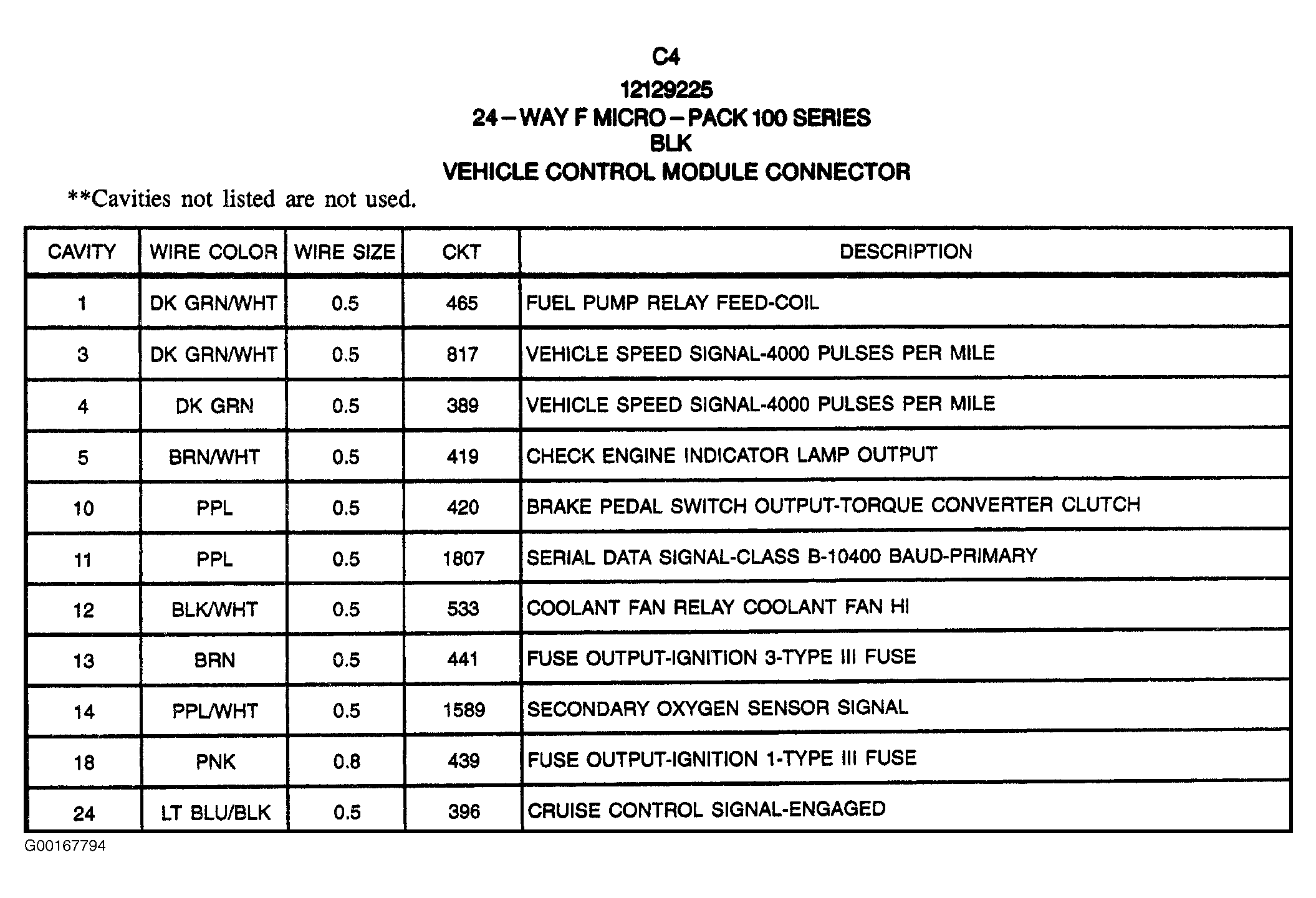

Fig 2: VCM 24-Pin Connector C4 (Black) - Legend (2 Of 2)
G00167794Courtesy of GENERAL MOTORS CORP.
