Connector Terminal Identification
>>
Fuel Pump & Sender
Fuel Pump & Sender

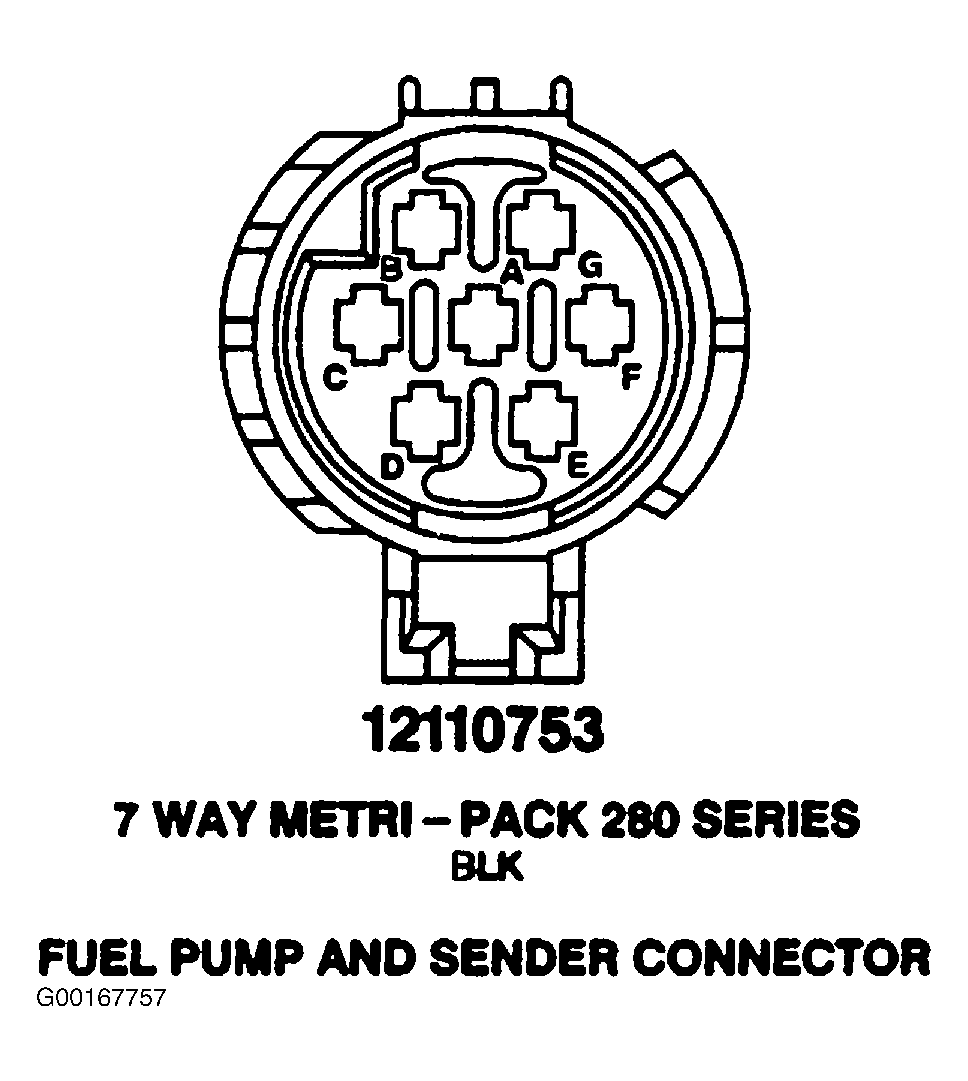

Fig 1: Fuel Pump & Sender - 7-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
