Connectors C100 To C301: C300

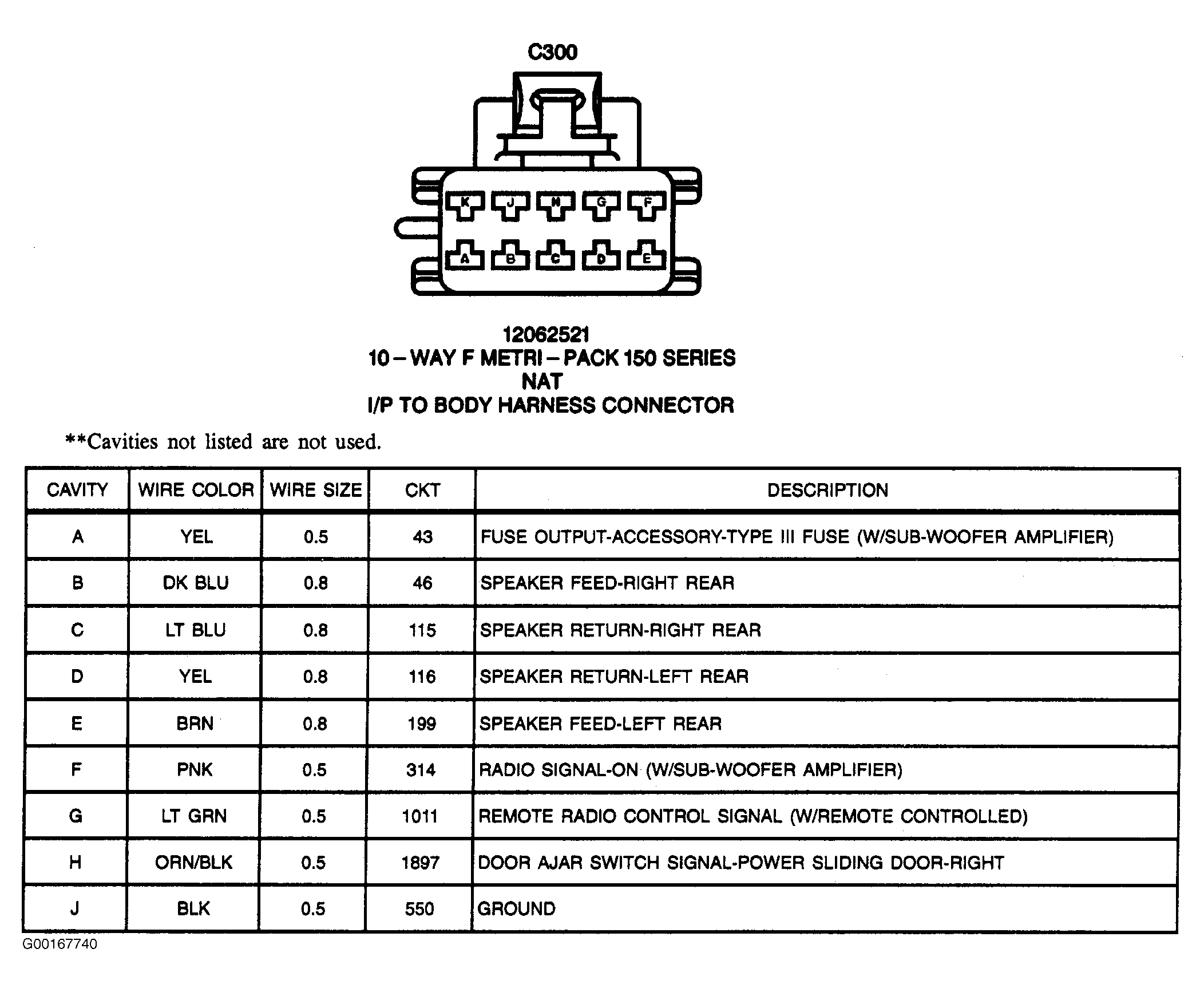

Fig 1: C300 - 10-Pin Connector, Natural

G00167740

Courtesy of GENERAL MOTORS CORP.
