Instrument Panel: Description: Notes

Instrument cluster uses analog speedometer and gauges. See Fig 1. Indicator lights, plugged into back of cluster, are serviceable, but no other components on cluster are serviceable. If any component on cluster is faulty, replace cluster.

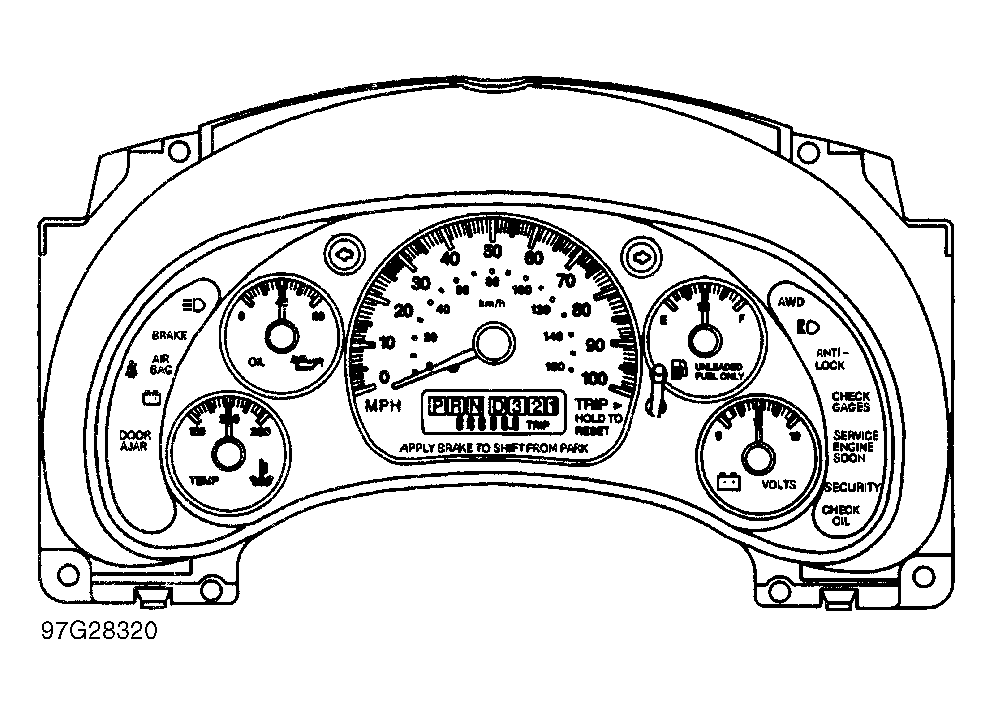

Fig 1: Identifying Instrument Components
G97G28320Courtesy of GENERAL MOTORS CORP.
WARNING: If BRAKE light is on, ensure brake hydraulic system is okay before driving vehicle.
