Test D: Scan Tool Will Not Communicate With EVO

Refer to flowchart. See Fig 1 .

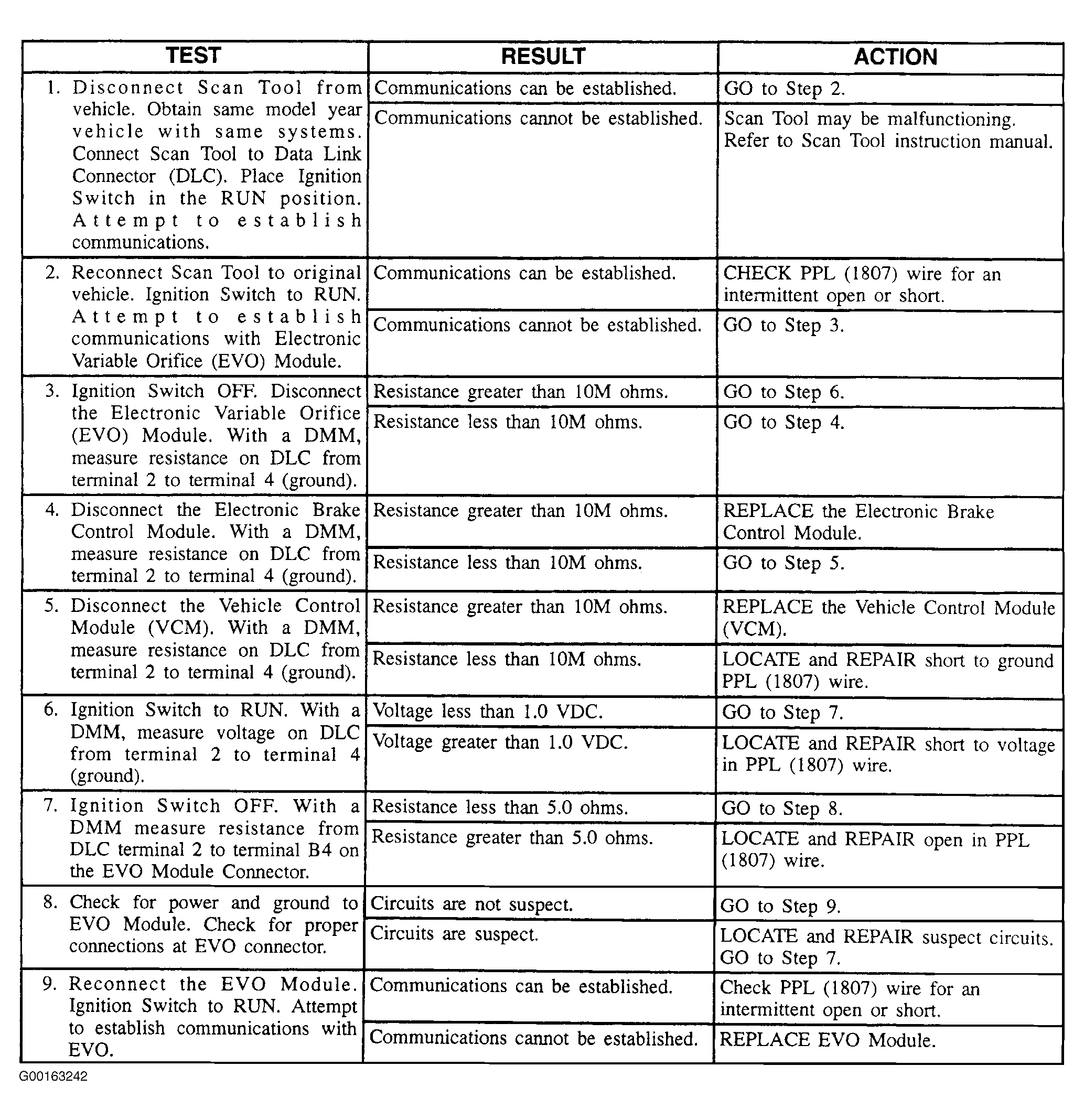

Fig 1: Scan Tool Will Not Communicate With EVO
G00163242Courtesy of GENERAL MOTORS CORP.
