Test C: Scan Tool Will Not Communicate With EBCM

Refer to flowchart. See Fig 1 .

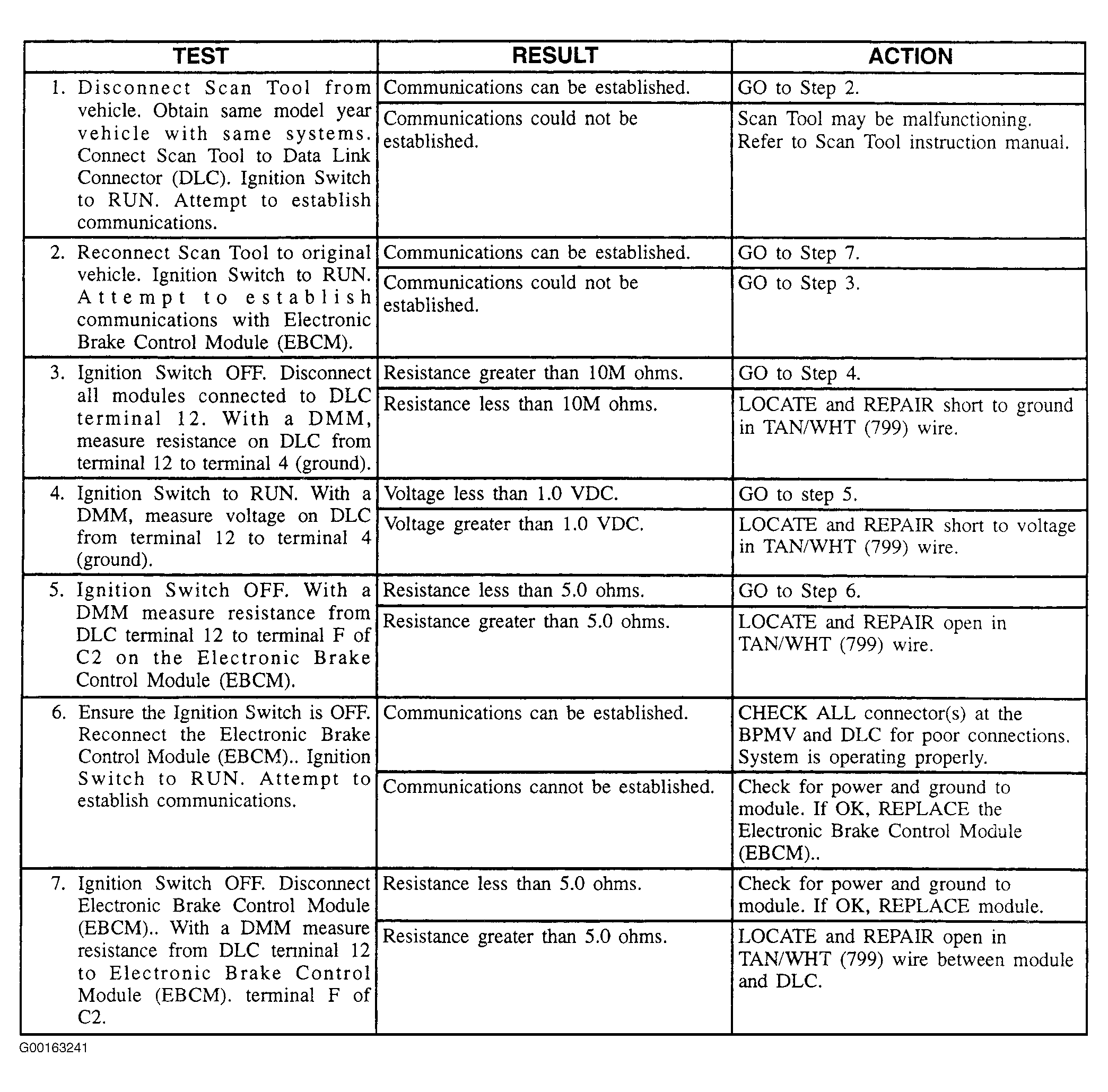

Fig 1: Scan Tool Will Not Communicate With EBCM
G00163241Courtesy of GENERAL MOTORS CORP.
