Engine Compartment Fuse Block

NOTE: Engine compartment fuse block is located in left rear corner of the engine compartment, to right of cruise control servo. See Fig 1 .

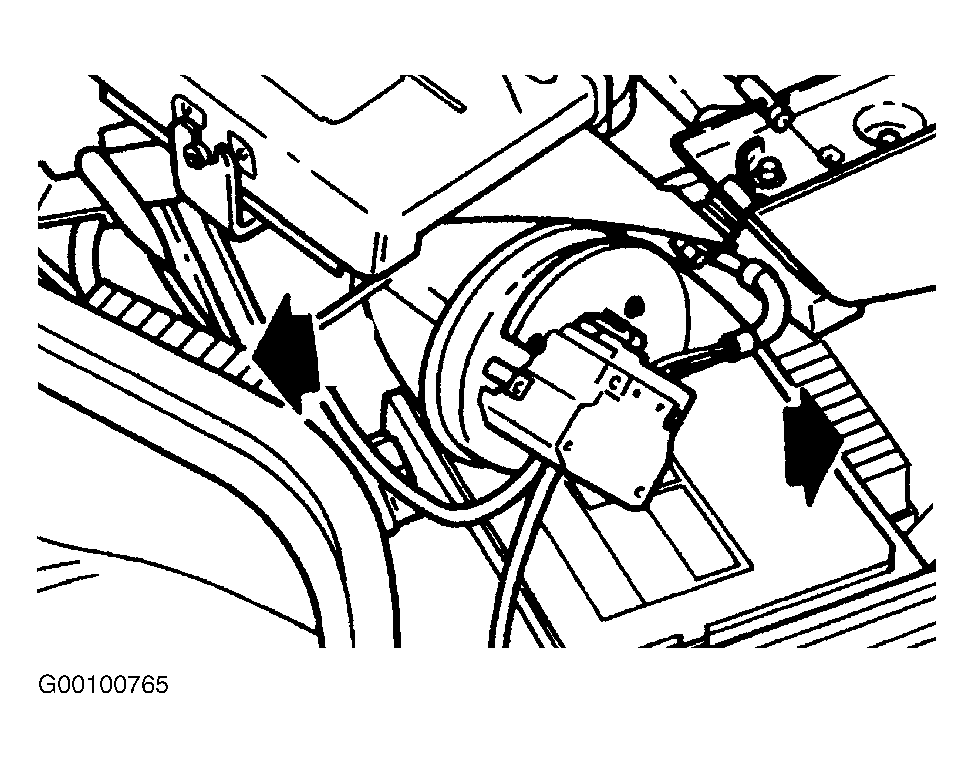

Fig 1: Locating Engine Compartment Fuse Block & Forward Lamp Wiring Harness
G00100765Courtesy of GENERAL MOTORS CORP.

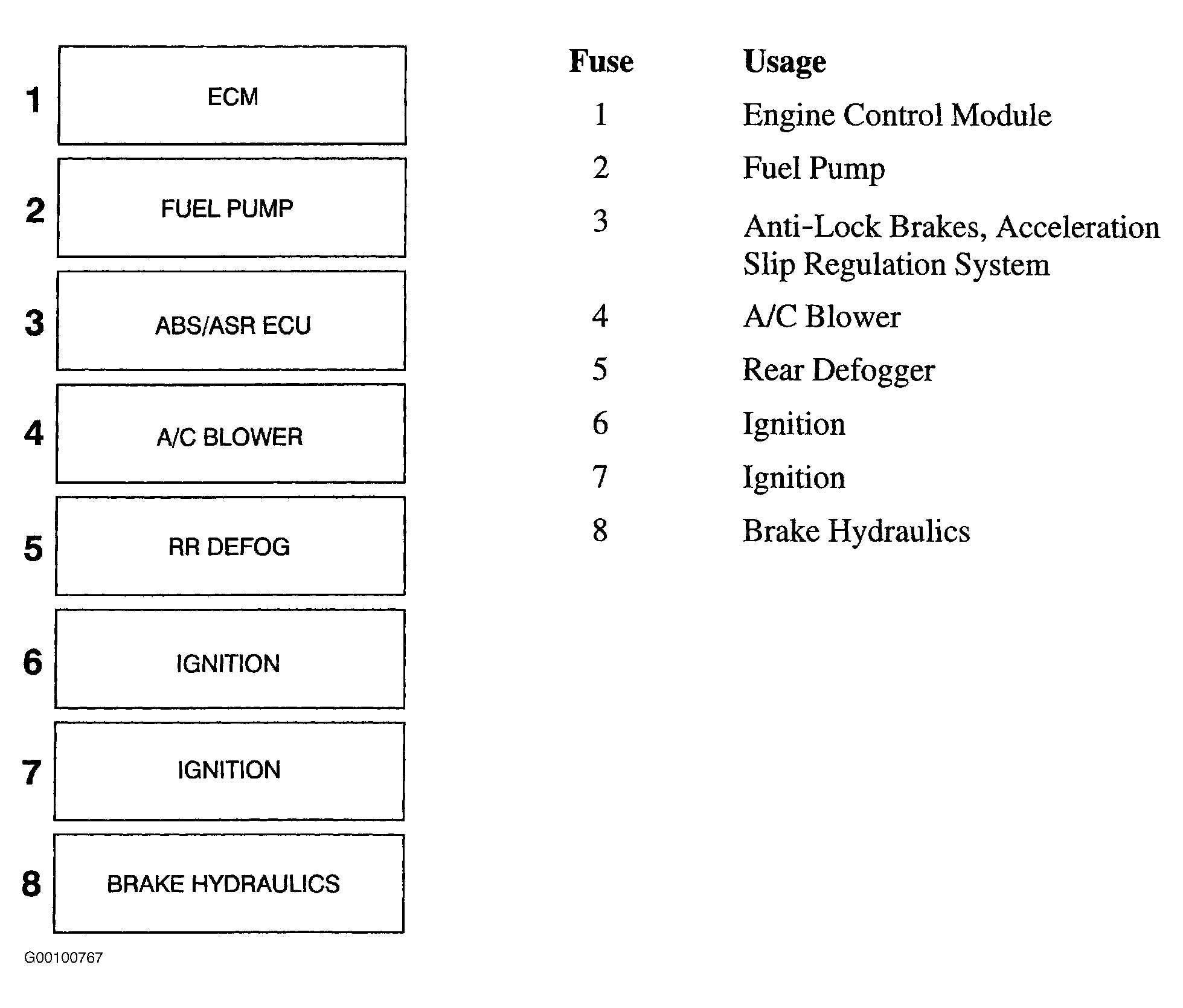

Fig 2: Identifying Engine Compartment Fuse Block Components
G00100767Courtesy of GENERAL MOTORS CORP.
