Chevy Express G2500, Van Cargo Extended, 4L60E/M30
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - System & Component Testing - G Series (Diesel)
>>
Component Locations
Component Locations

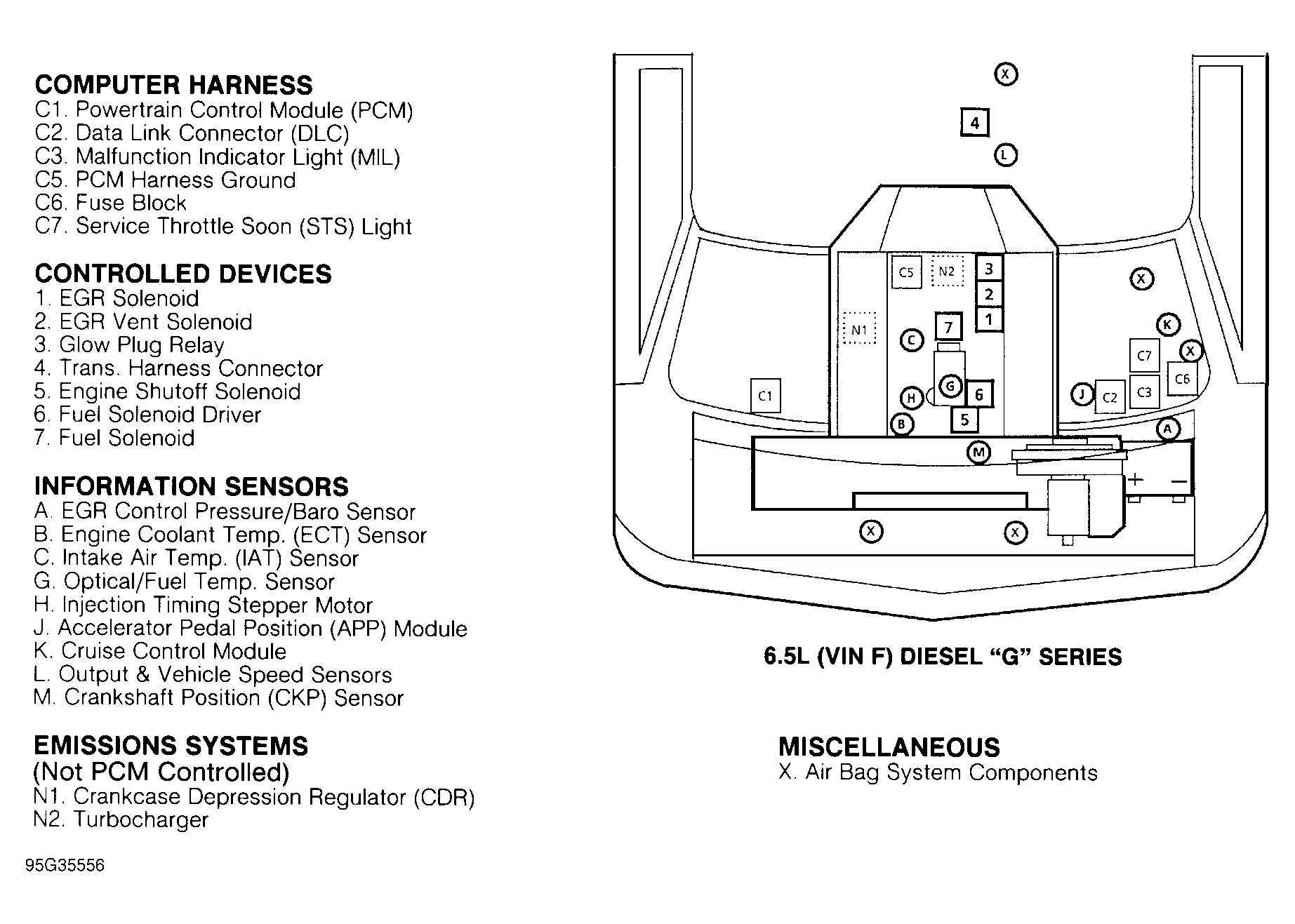

Fig 1: Component Locations - 6.5L (VIN F) Diesel "G" Series
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
