Chevy Express G1500, Van Cargo
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - System & Component Testing - G Series (Gasoline)
>>
Component Locations
Component Locations

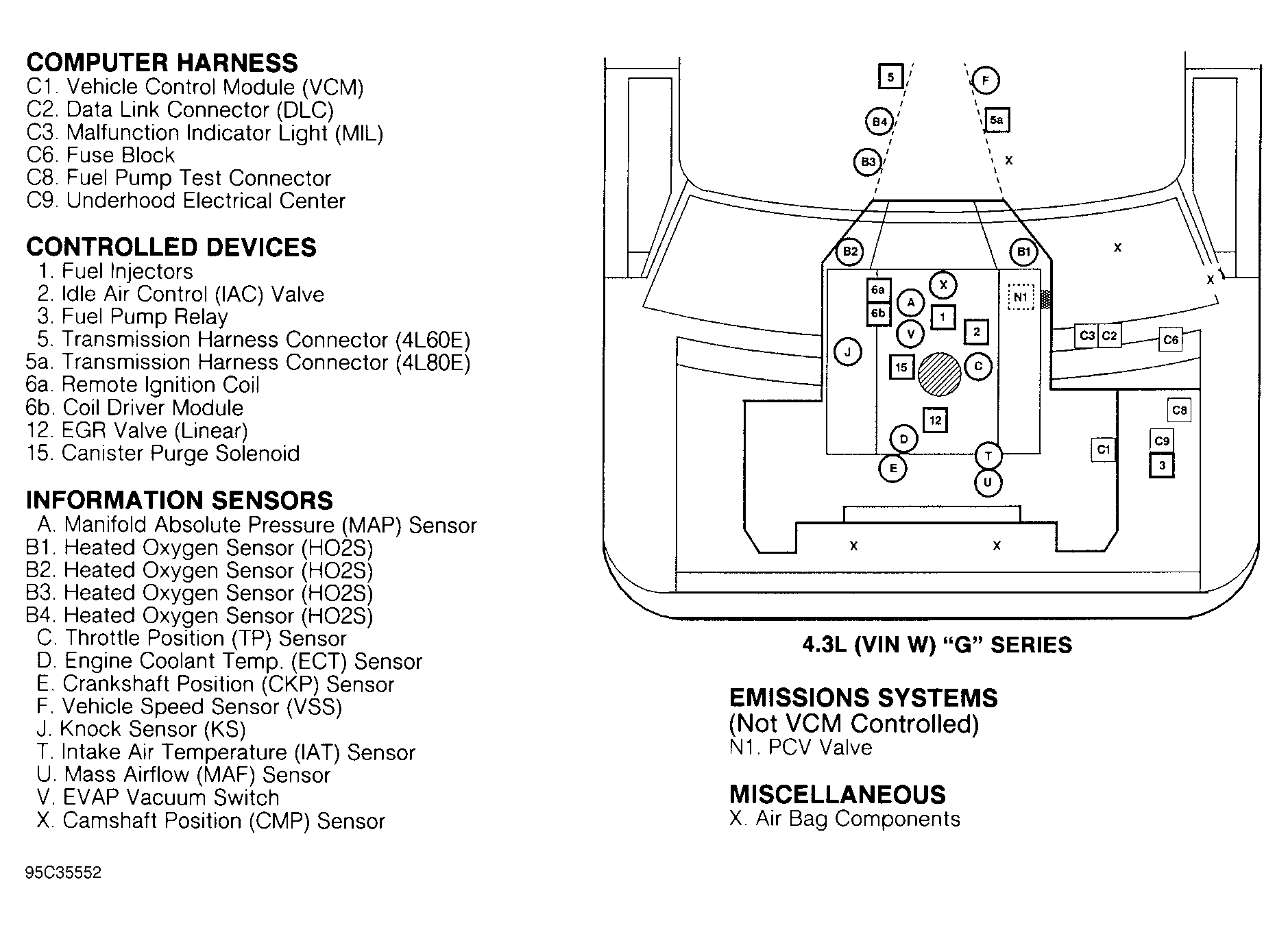

Fig 1: Component Locations - 4.3L (VIN W)
Courtesy of GENERAL MOTORS CORP.

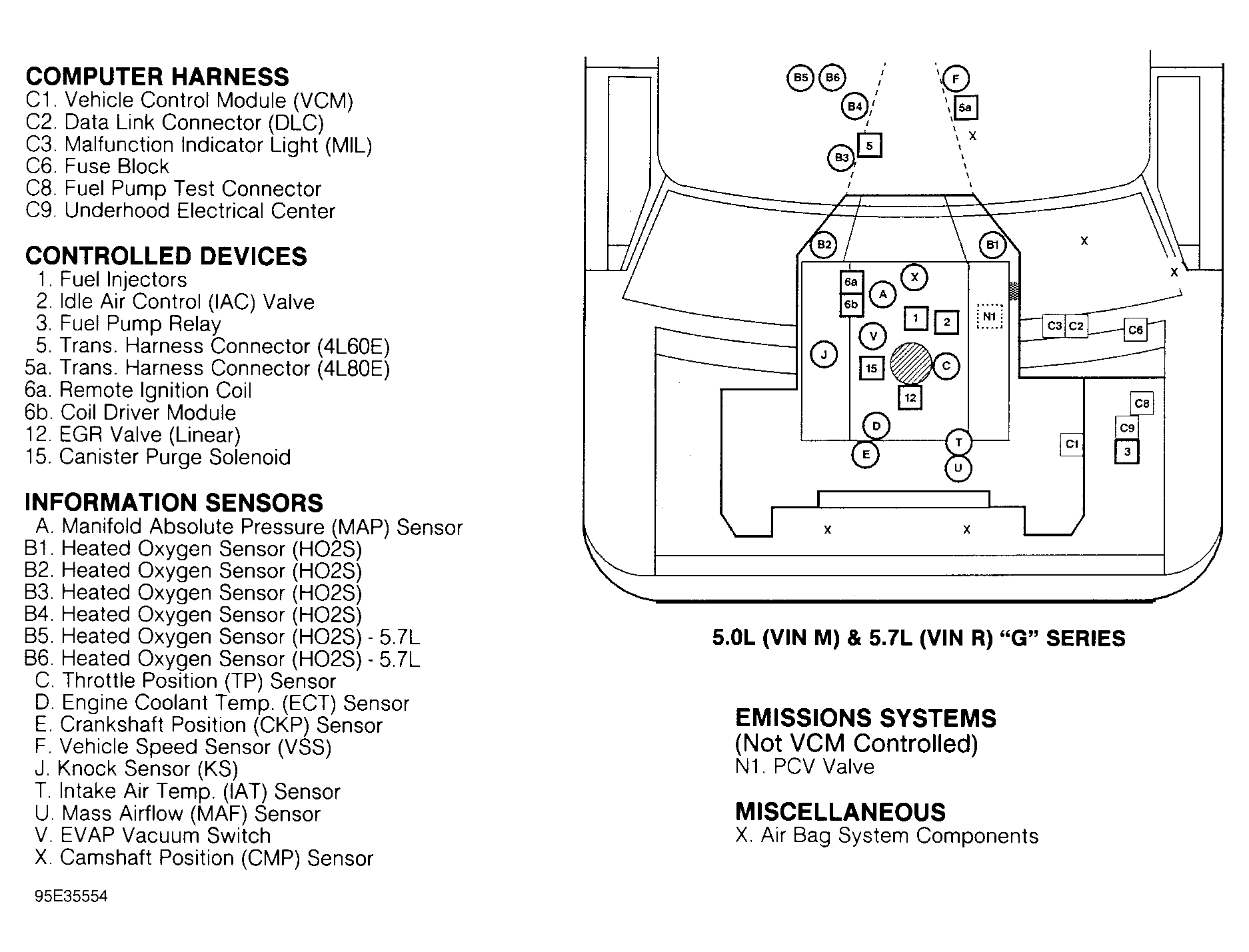

Fig 2: Component Locations - 5.0L (VIN M) & 5.7L (VIN R)
Courtesy of GENERAL MOTORS CORP.

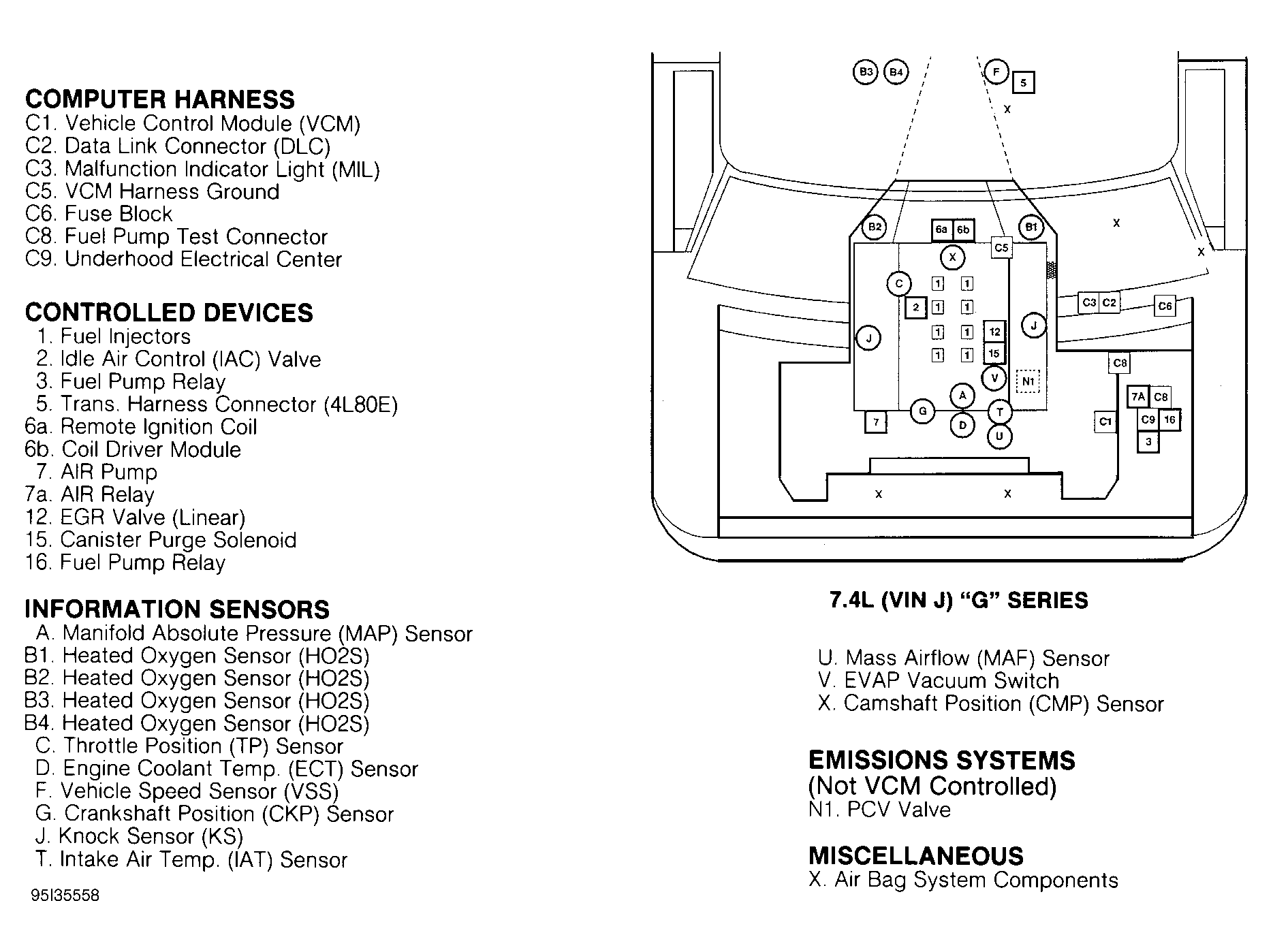

Fig 3: Component Locations - 7.4L (VIN J)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
