Fuse Panel Identification - 1996: Notes

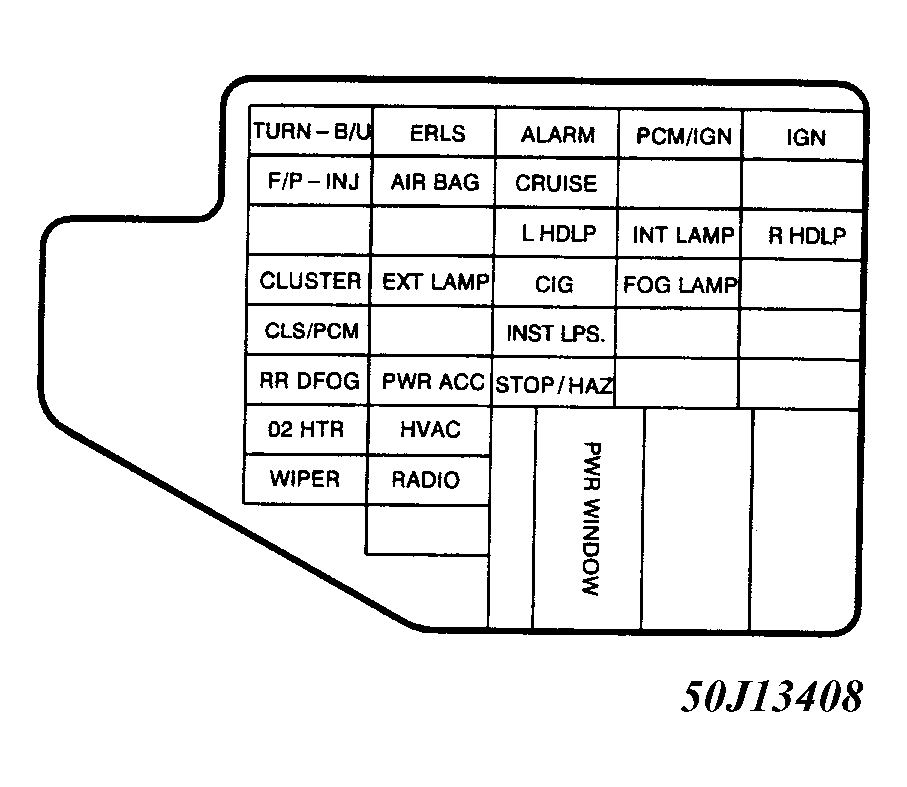

Fig 1: Fuse Panel Identification - 1996
G50J13408Courtesy of GENERAL MOTORS CORP.
