Removal & Installation
WARNING: This page is about a different car, the 1996 Buick Roadmaster. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative battery cable. Remove right side instrument panel sound insulator. Pull sound insulator back until locator studs at forward edge are disengaged.

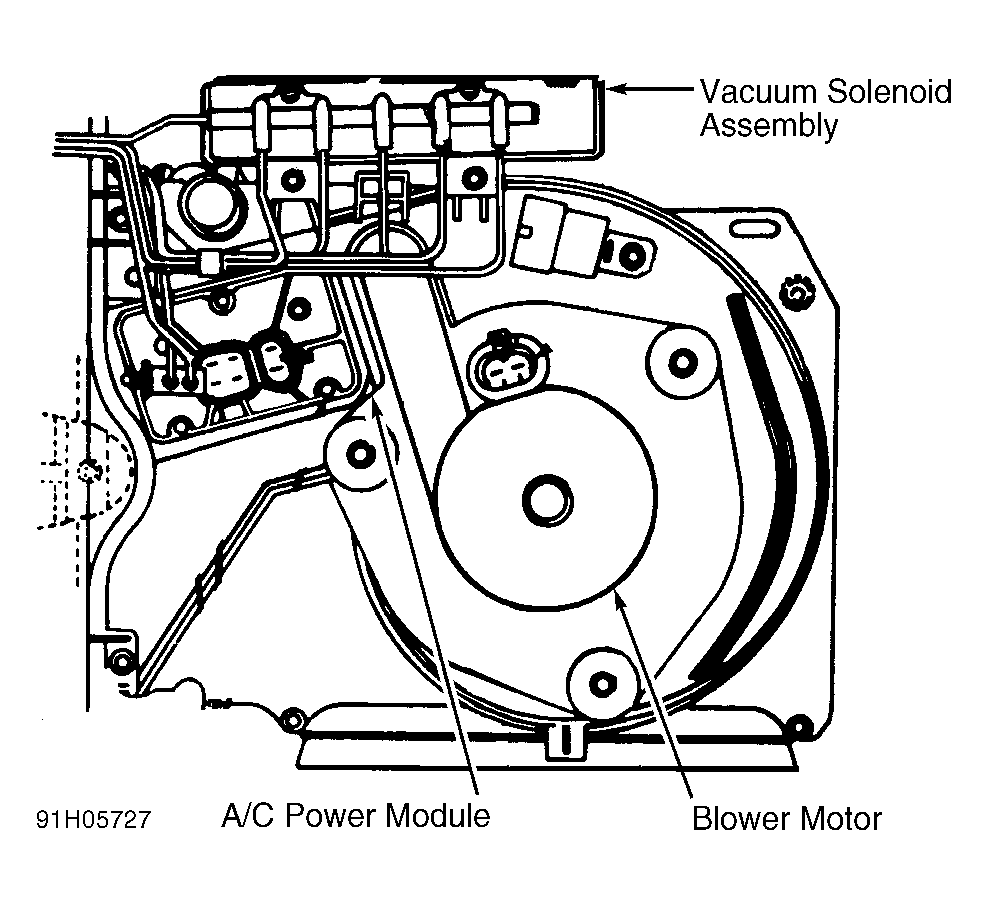

- Locate blower motor control module (A/C power module) on bottom of evaporator housing, just left of blower motor. See Figure. Disconnect electrical connectors. Remove blower motor control module (A/C power module). To install, reverse removal procedure.
