Cruise Control Module: Removal

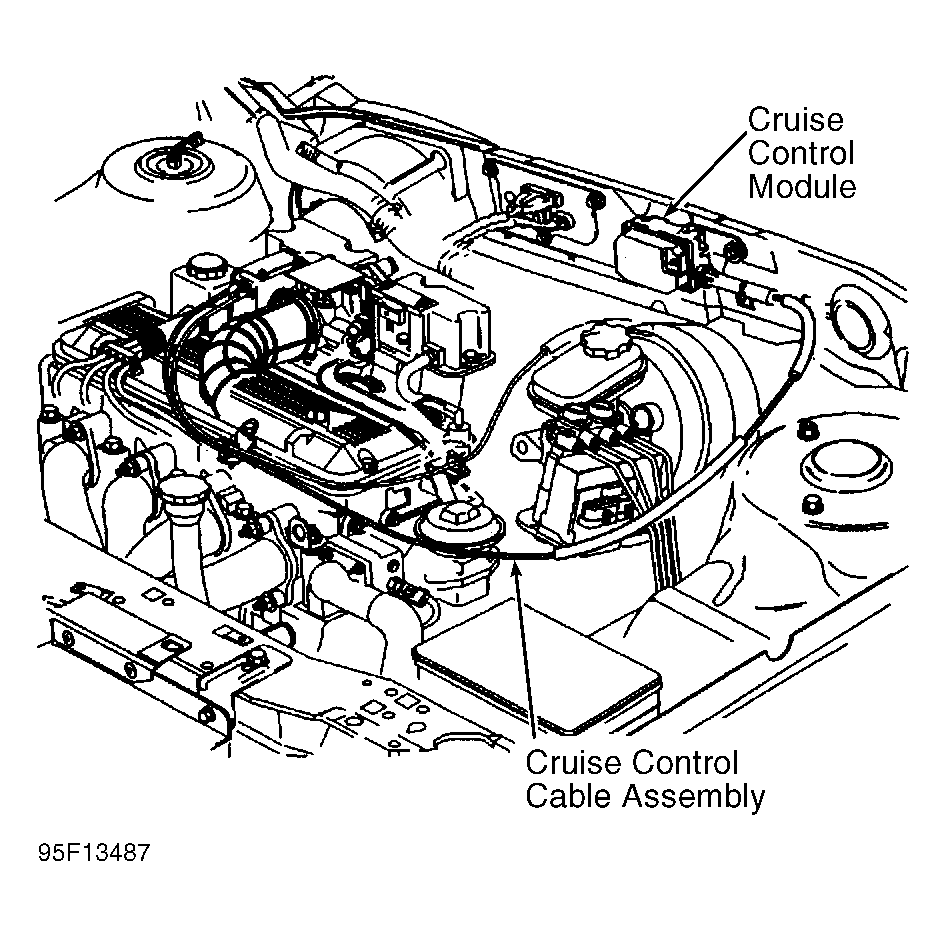

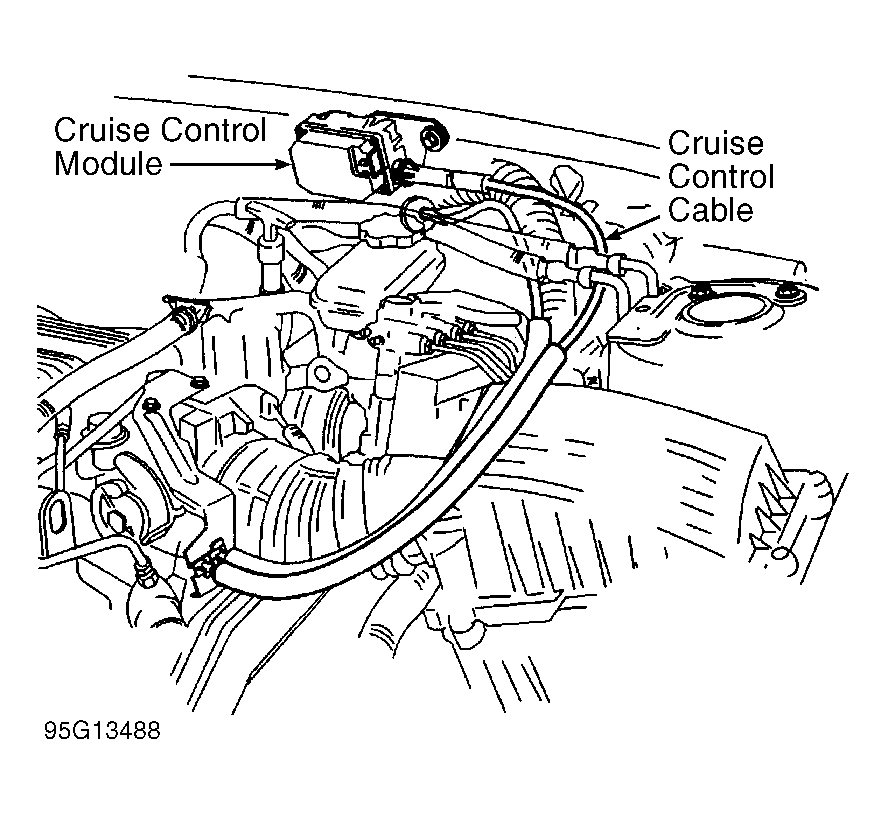

Disconnect negative battery cable. Remove cruise control cable at engine bracket and throttle valve cam. Remove cruise control cable from module assembly. See CRUISE CONTROL CABLE  under REMOVAL & INSTALLATION. Disconnect electrical connector from module assembly. Remove one nut from mounting stud and 2 screws. Remove module assembly from front of bulkhead. See Figure or Figure . Remove module assembly from mounting bracket.
