Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment (2.2L VIN 4)

Fig 2: Engine Compartment (3.1L VIN M)

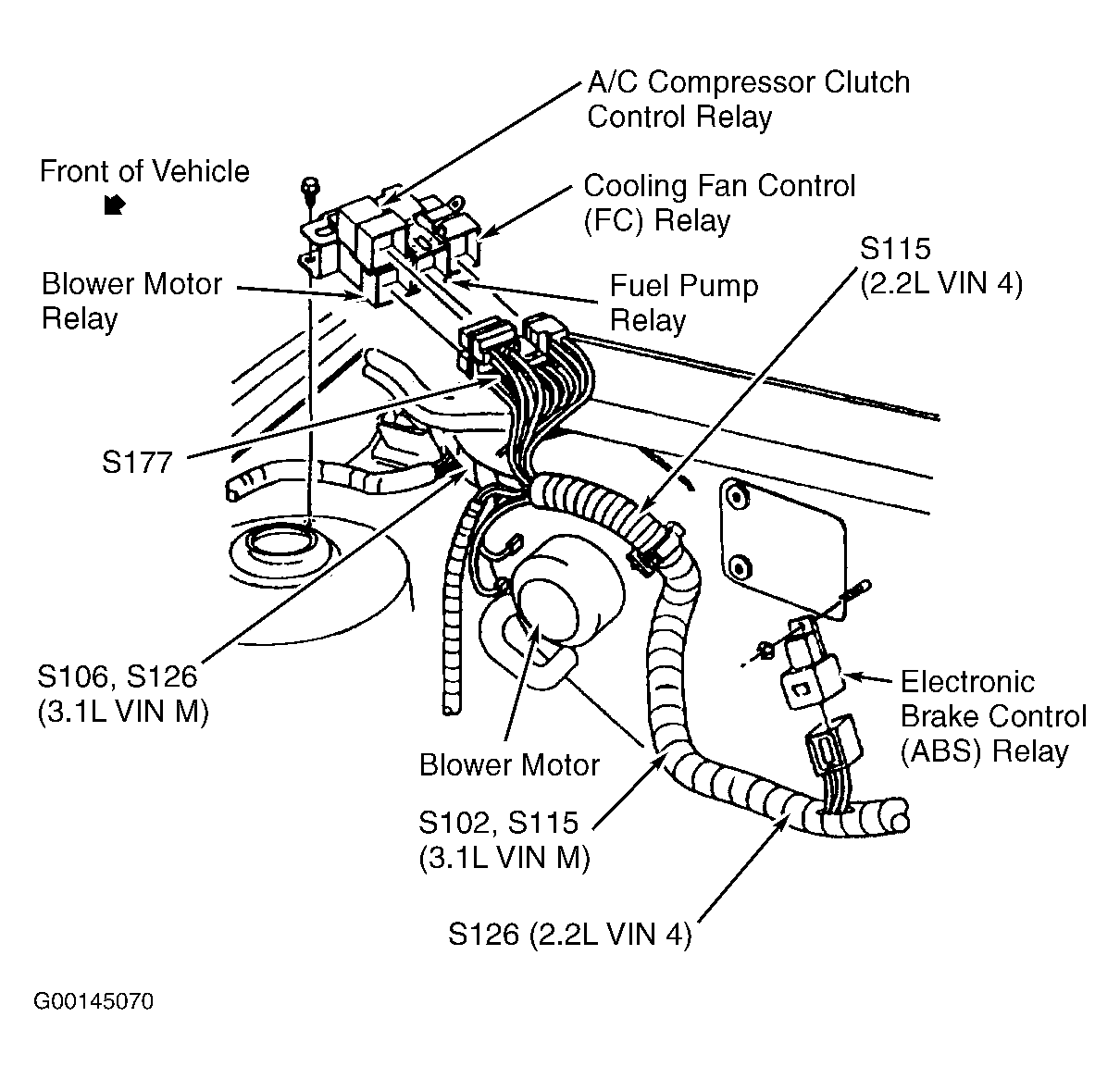

Fig 3: Right Rear Of Engine Compartment
