Diagnostic Aids

Positive identification of ignition module is essential as physical appearance is identical to other ignition modules.

Fig 1: Code 41 Schematic (2.2L) 1X Signal Error

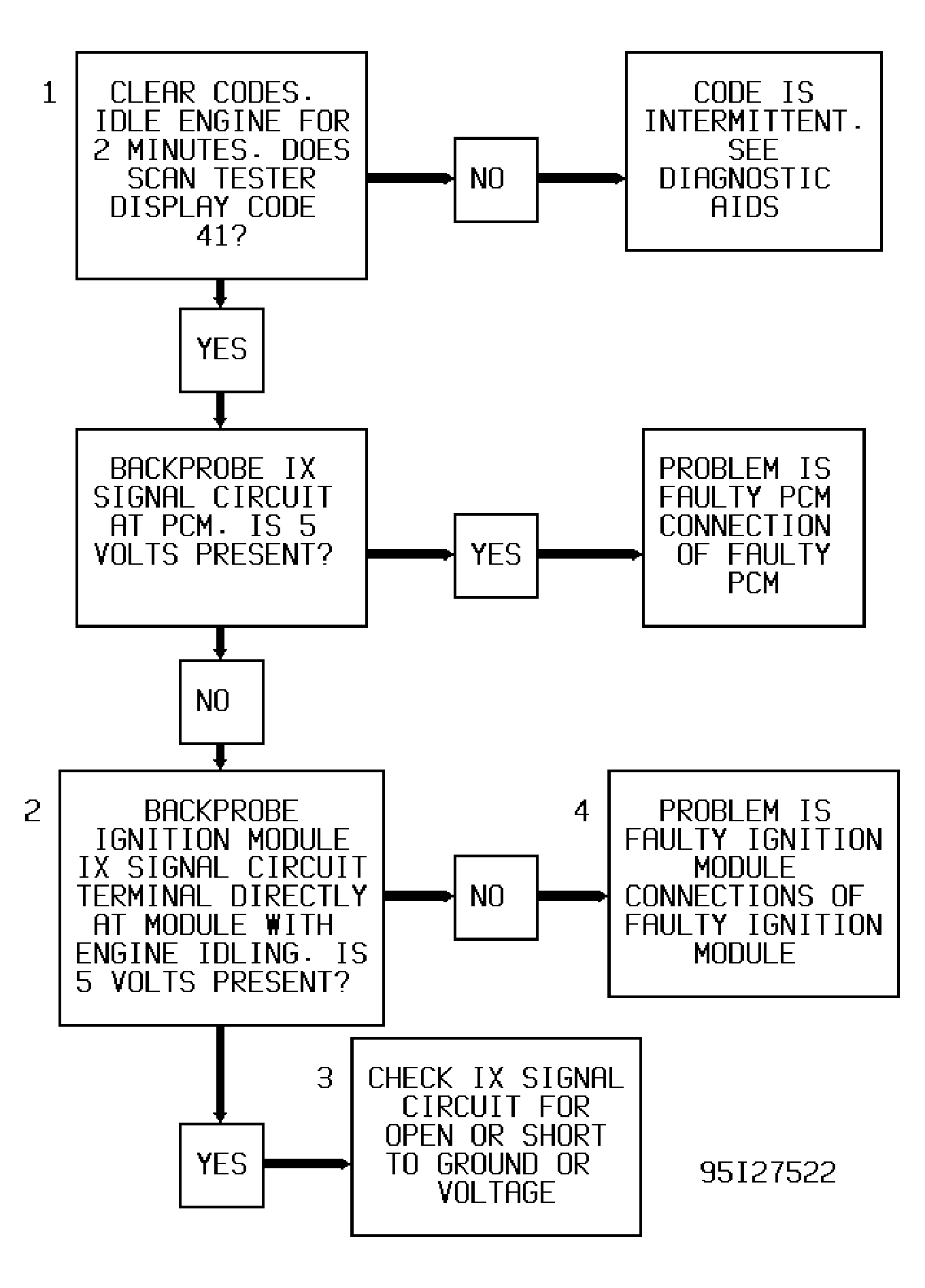

Fig 2: Code 41 Flow Chart (2.2L) 1X Signal Error
