Clutch Assembly: Notes

CAUTION: Disconnect clutch master cylinder push rod from pedal before performing any service requiring actuator cylinder removal. If clutch pedal is depressed with actuator cylinder removed and wired aside, permanent actuator cylinder damage will result.

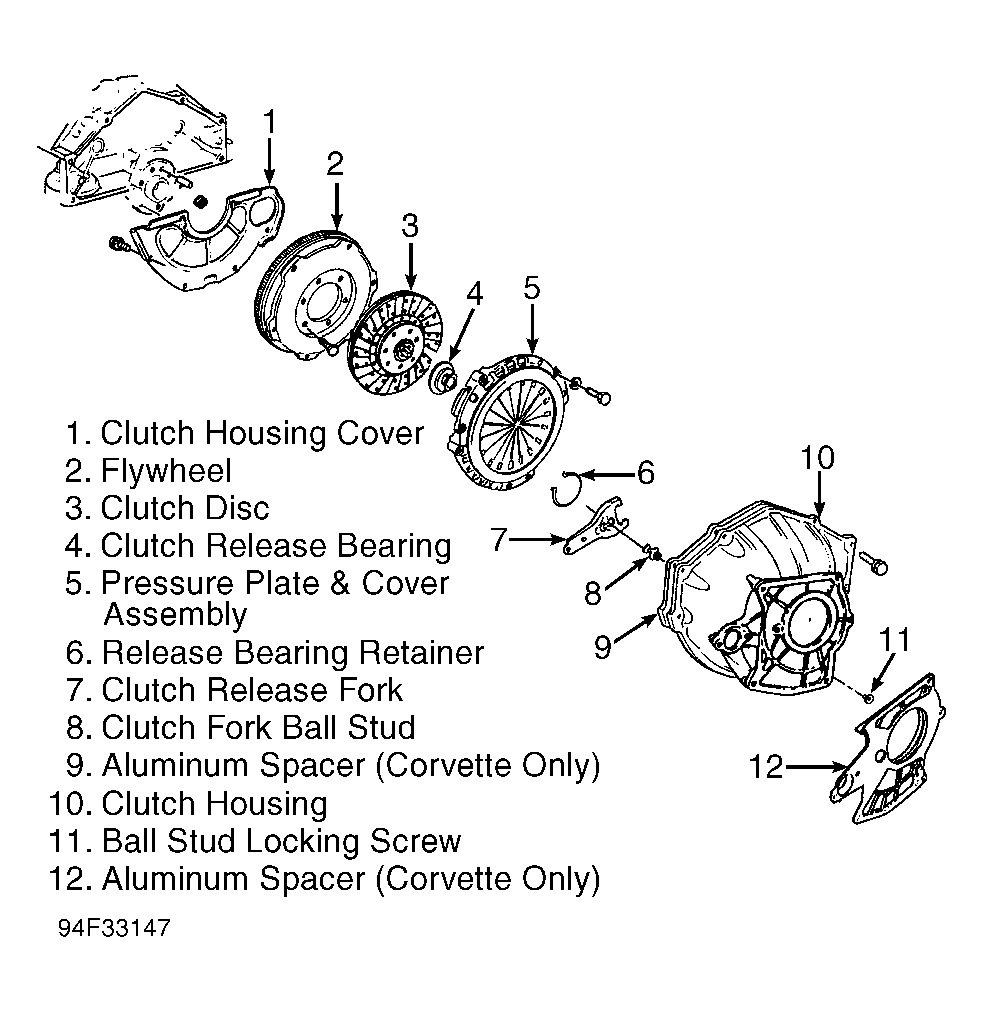

Fig 1: Exploded View Of Clutch Assembly (Typical)

Courtesy of GENERAL MOTORS CORP.
