Floor Jack

Floor jack may be used under the front drivertrain/front suspension frame. See Fig 1 and Fig 2 .

CAUTION: Never use jack on any part of underbody. Do not raise entire vehicle at side rail, with jack midway between front and rear wheels, or permanent body damage may result. Do not allow lifting plate fingers to contact axle cover plate when lifting at rear axle housing. If vehicle is equipped with a stabilizer bar do not lift at rear axle housing.

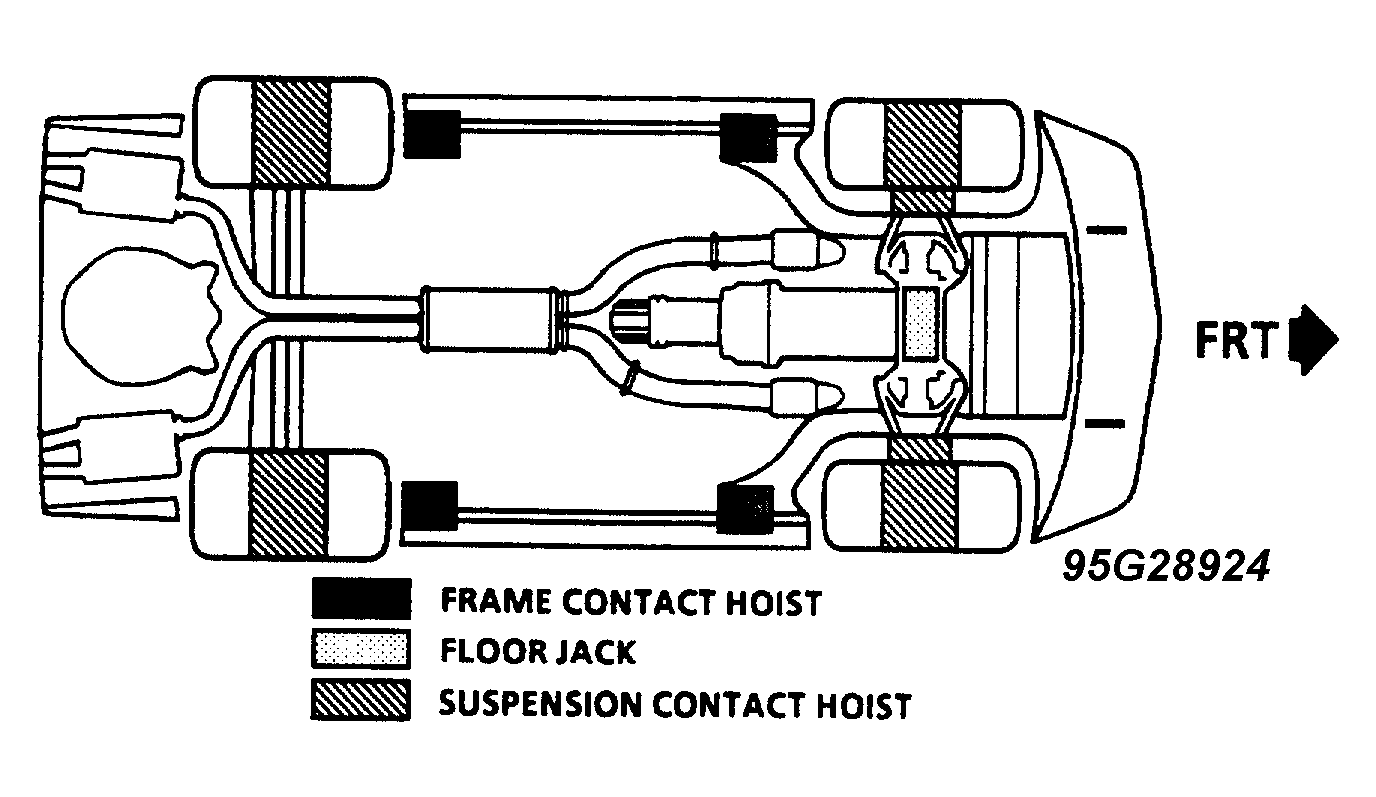

Fig 1: Lifting Points

Fig 2: Using Floor Jack on Front of Vehicle

Courtesy of GENERAL MOTORS CORP.
