EXPERTEC TSB (57-71-02)

WARNING: This page is about the Corvette ZR-1, which is a different variant/trim than selected.
Publication date: 1995-02-03
Reference number: 57-71-02

EXPERTEC TSB

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 57-71-02, Date of Issue:  02/03/95

3-2 DOWNSHIFT FLARE - (REFLASH CONTROL MODULE)

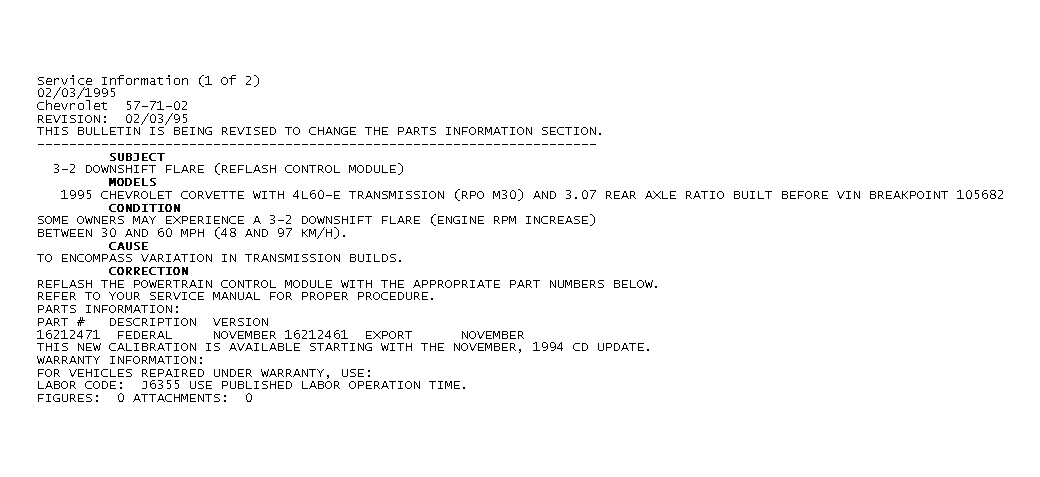

Fig 1: Service Information (1 Of 2)
GB0042221

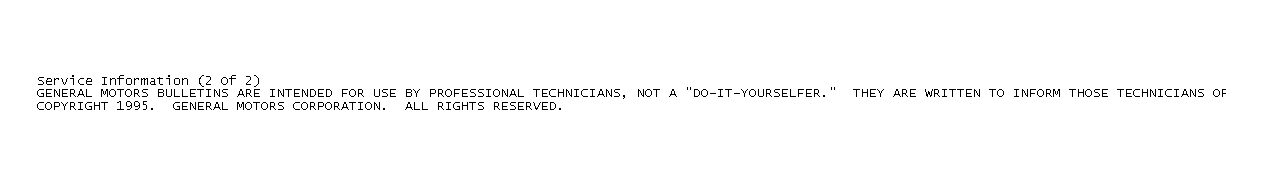

Fig 2: Service Information (2 Of 2)
GB0042222
