Chart 12 - Both Lumbar Seats Inoperative

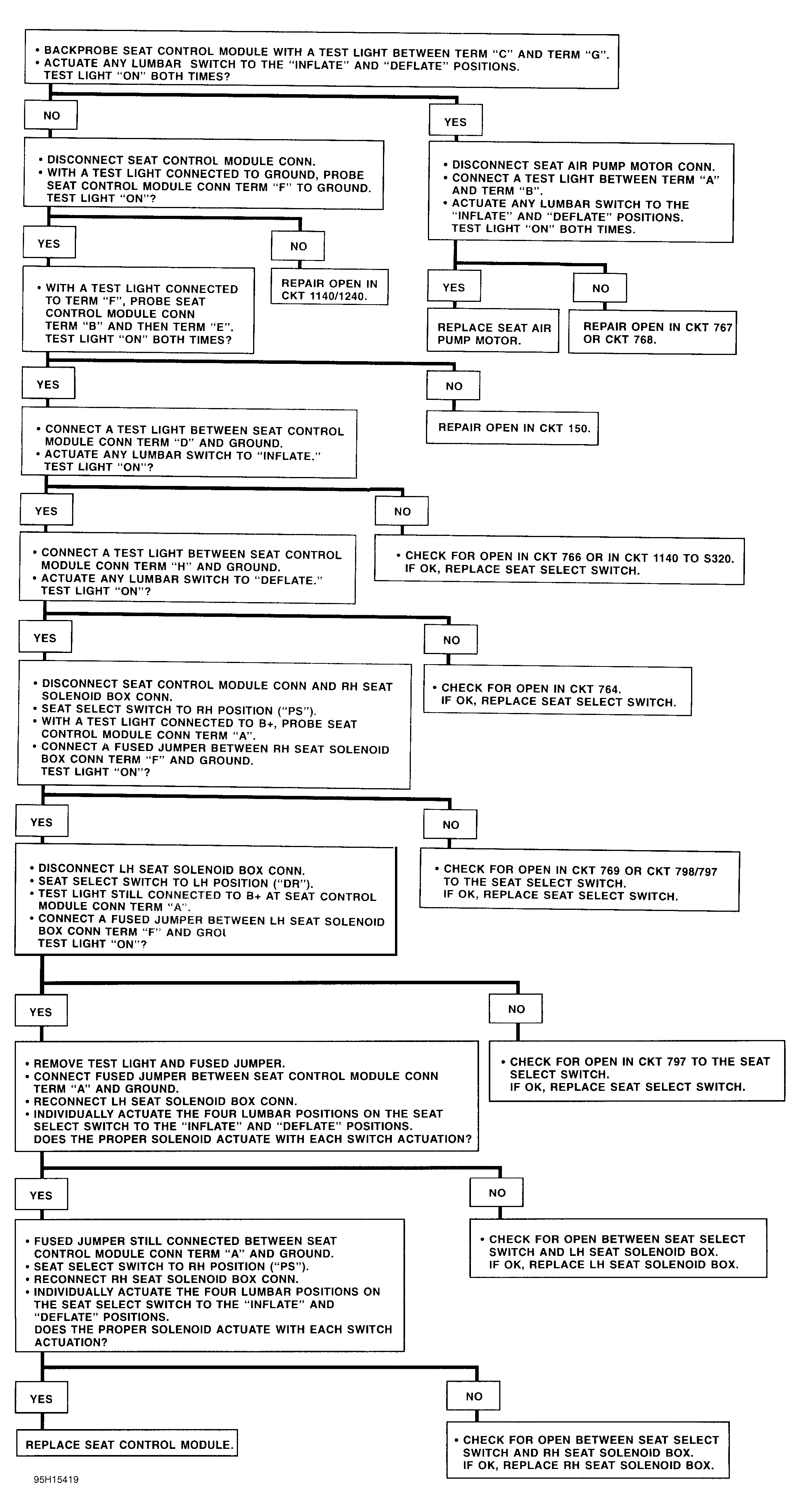

Fig 1: Chart 12 - Both Lumbar Seats Inoperative

G95H15419

Courtesy of GENERAL MOTORS CORP.
