Component Location

COMPONENT LOCATIONS

Component Location
Central Control Module Center Of Instrument Panel Behind Radio. See Fig 1 .
Data Link Connector Below Left Side Of Instrument Panel, Just Right Of Steering Column. See Fig 2 .
Delayed Accessory Bus Relay Behind Left Side Of Instrument Panel, Left Of Steering Column. See Fig 3 .
Diagnosis Energy Reserve Module Behind Right Side Of Instrument Panel, Left Of Panel Fuse Block. See Fig 4 .
Door Ajar Switch (Left) Rear Of Driver Door Near Hatch. See Fig 5 .
Door Ajar Switch (Right) Rear Of Passenger Door Near Hatch. See Fig 5 .
Door Key Switch (Left) Rear Of Driver Door Near Attached To Lock Cylinder Housing. See Fig 5 .
Door Key Switch (Right) Rear Of Passenger Door Near Attached To Lock Cylinder Housing. See Fig 5 .
Electronic Brake and Traction Control Module (1) Left Side Of Cargo Compartment In Storage Compartment. See Fig 6 .
Electronic Brake and Traction Control Module (2) Left Side Of Cargo Compartment In Storage Compartment See Fig 6
Engine Control Module (1) Left Rear Of Engine Compartment Above Battery. See Fig 7 .
Engine Oil Pressure Switch (VIN J Engine)(1) Lower Right Front Of Engine Below Oil Filter. See Fig 8 .
Engine Oil Pressure Switch (VIN P Engine)(2) Top Rear Of Engine. See Fig 9 .
Fuel Gauge Sender In Fuel Tank, Part Of Fuel Pump Module
Fuel Pump Module Attached To Top Of Fuel Pump
Hatch Ajar Switch Rear Of Cargo Compartment Near Latch Assembly. See Fig 10 .
Headlamp Switch Left Side Of Instrument Panel, Left Of Instrument Cluster. See Fig 11 .
HVAC Programmer Below Left-Side Instrument Panel, Right Of Steering Column On Bulkhead. See Fig 12 .
Horn Relay Bottom Right Of Instrument Panel In Relay Retainer. See Fig 4 .
I/P Fuse Block Far Right Side Of Instrument Panel (4) . See Fig 13 .
Ignition Lock Cylinder Right Side Of Steering Column
Key Resistor Pellet In Ignition Key
Key Resistor Sensing Terminals Right Side Of Steering Column In Ignition Lock Cylinder. See Fig 14 .
Key-In-Ignition Switch Right Side Of Steering Column On Ignition Lock Cylinder. See Fig 14 .
Low Engine Oil Level Switch (1) Lower Right Side Of Engine In Oil Pan. See Fig 24 .
Low Engine Oil Level Switch (2) Lower Left Side Of Engine, Ahead Of Oil Filter In Oil Pan. See Fig 15 .
Passive Keyless Entry Module Center Instrument Panel Behind Driver Information Center. See Fig 2 .
Powertrain Control Module (2) Left Rear Engine Compartment Above Battery. See Fig 23 .
Radio Frequency Choke Taped To Instrument Panel Wire Harness In Central Control Module, Connection C2 Branch. See Fig 2 .
Rear Window Defogger Relay Behind Left Side Of Instrument Panel, Right Of Steering Column. See Fig 3 .
Seat Belt Switch Left Side Of Passenger Compartment, Part Of Buckle Assembly. See Fig 16 and Fig 17 .
Theft Deterrent Relay Behind Left Side Of Instrument Panel, Left Of Steering Column. See Fig 3 .
Tone Generator Center Instrument Panel Behind Driver Information Center. See Fig 2 .
C204 (11 Cavities) Left Side Of Instrument Panel On Steering Column Near Ignition Switch. See Fig 14 .
C209 (23 Cavities) Right Side Of Instrument Panel Near Instrument Panel Fuse Block. See Fig 13 .
C210 (10 Cavities) Right Side Of Instrument Panel Near Instrument Panel Fuse Block. See Fig 13
C237 (23 Cavities) Right Side Of Instrument Panel Near Instrument Panel Fuse Block. See Fig 13
C238 (10 Cavities) Right Side Of Instrument Panel Near Instrument Panel Fuse Block. See Fig 13
C239 (10 Cavities) Right Side Of Instrument Panel Near Instrument Panel Fuse Block. See Fig 13
C400 (10 Cavities) Left Side Of Cargo Compartment In Storage Compartment. See Fig 6 .
C426 (10 Cavities)
Convertible Right Side Of Cargo Compartment Above Wheelwell. See Fig 18 .
Coupe Right Side Of Cargo Compartment Above Wheelwell. See Fig 10 .
C450 (4 Cavities) Rear Of Cargo Compartment, Rear Of Fuel Tank. See Fig 19 .
G105 (1) Left Rear Of Engine On Bell Housing. See Fig 24 .
G106 (1) Right Rear Of Engine On Bell Housing. See Fig 24 .
G106 (2) Left Rear Of Engine Near Oil Filter. See Fig 23 .
G109 (2) Right Rear Engine Compartment Near Wheelwell On Frame Rail See Fig 20 .
G401
Convertible Right Side Of Cargo Compartment Behind Passenger Seat. See Fig 18 .
Coupe Right Side Of Cargo Compartment On Halo Near Top Of Seat. See Fig 10 .
P101 Rear Center Of Engine Compartment In Bulkhead. See Fig 21 .
P401 Right Rear Of Cargo Compartment See Fig 22 .
P500 Between Driver Door And Pillar. See Fig 5 .
P600 Between Passenger Door And Pillar. See Fig 5 .
S130 (2) Right Rear Engine Compartment Ahead Of Blower Motor
S148 (1) Rear Of Engine
S201 Behind Left Side Of Instrument Panel, Left Of C100A Branch Of Wire Harness
S212 Behind Left Side Of Instrument Panel, Approximately 2 inches (5.5 cm) Left Of Driver Information Center Branch Of Wire Harness
S213 Behind Left Side Of Instrument Panel, Approximately 3.75 inches (9.5 cm) Left Of Driver Information Center Branch Of Wire Harness
S214 Behind Center Instrument Panel Approximately 7.7 inches (19.5 cm) From Cigarette Lighter Connection Breakout
S217 Behind Center Instrument Panel Approximately 3 inches (7.5 cm) Right Of Data Link Connector Breakout
S220 Behind Center Instrument Panel In Central Control Module Connection C1 Branch, Approximately 1 inch (2 cm) From Stem Of Harness Branch
S221 Behind Center Instrument Panel Approximately 4.5 inches (11.5 cm) Right Of Data Link Connector Breakout
S222 Behind Center Instrument Panel Approximately 5 inches (13.5 cm) Right Of Data Link Connector Breakout
S235 Behind Right-Side Instrument Panel Approximately 3 inches (7.5 cm) Left Of Diagnostic Energy Reserve Module Connection Breakout
S236 Behind Center Instrument Panel Approximately 4 inches (10 cm) Left Of Center Console Wiring Breakout
S248 Behind Right-Side Instrument Panel Approximately 9.5 inches (24 cm) Right Of Diagnostic Energy Reserve Module Connection Breakout
S251 (3) Behind Center Instrument Panel Approximately 3.75 inches (9.5 cm) Right Of Data Link Connector Breakout
S252 Behind Center Instrument Panel In Central Control Module Connection C2 Branch, Approximately 3.5 inches (9 cm) From Base Of Connection Breakout
S253 Behind Center Instrument Panel In Central Control Module Connection C2 Branch, Approximately 1.5 inches (4 cm) From Base Of Connection Breakout
S254 Behind Center Instrument PanelIn Central Control Module Connection C2 Branch Approximately 4.3 inches (11 cm) From Base Of Connection Breakout
S255 Behind Center Instrument PanelIn Central Control Module Connection C2 Branch Approximately 2.3 inches (6 cm) From Base Of Connection Breakout
S460
Convertible Right Cargo Compartment In C426/C427 Branch Of Front Body Harness, Approximately 6 inches (16 cm) From Base Of Connection Breakout
Coupe Right Cargo Compartment In Front Body Harness, Approximately 3 inches (8 cm) Right Of Hatch Release Solenoid Connection Breakout
S476 Rear Of Fuel Tank In Rear Body Harness, Approximately 6.5 inches (17 cm) Left Of Right Rear Headlamp Connection Breakout
S490 (1) Right Cargo Compartment In Front Body Harness, Approximately 8 inches (20 cm) Right Of Hatch Relay Connection Breakout
(1) Vehicles with VIN J engine.
(2) Vehicles with VIN P engine.
(3) On vehicles equipped with Daytime Running Lamp option.
(4) Accessible with door open

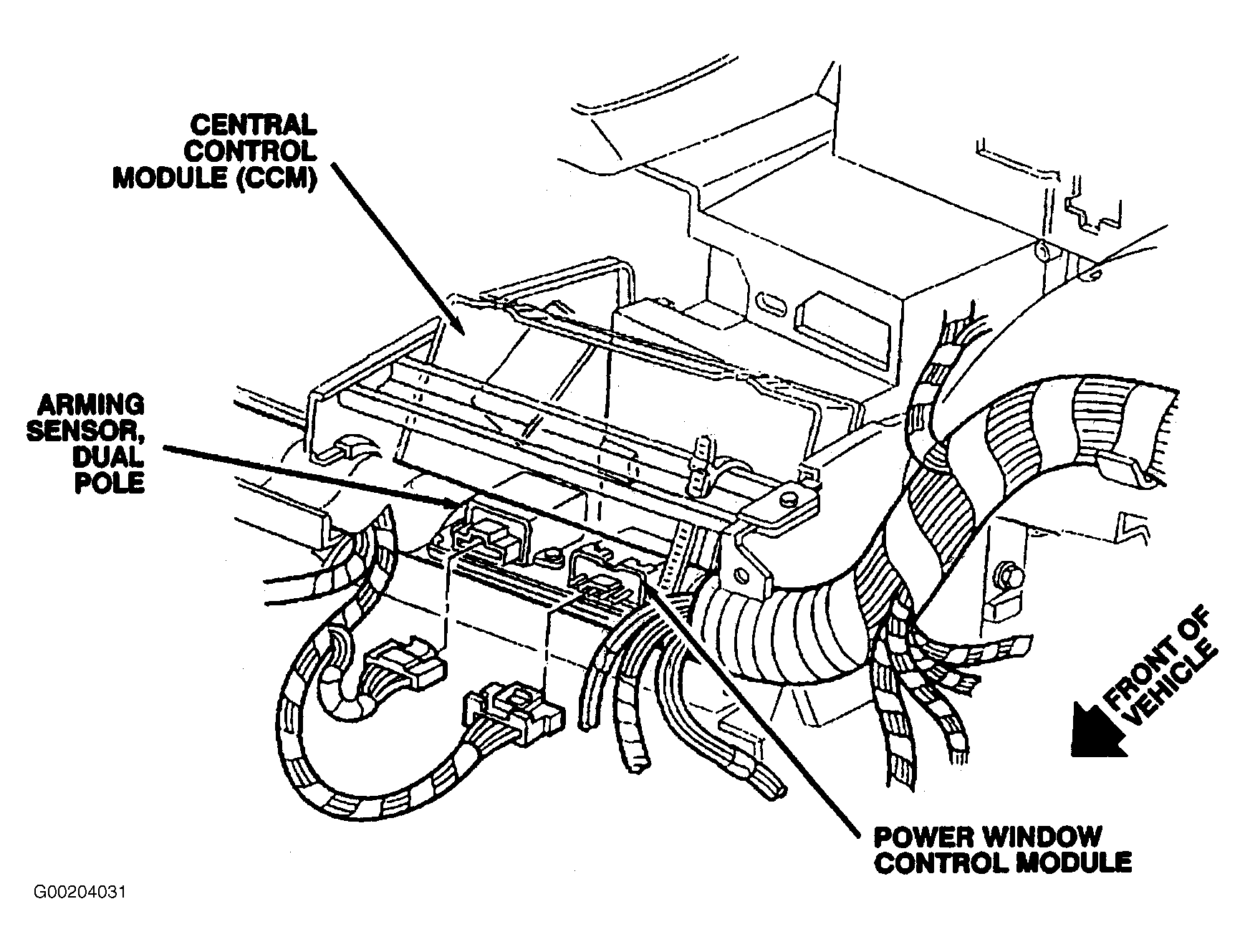

Fig 1: Identifying Electrical Connections For Central Control Module
G00204031Courtesy of PORSCHE OF NORTH AMERICA, INC.

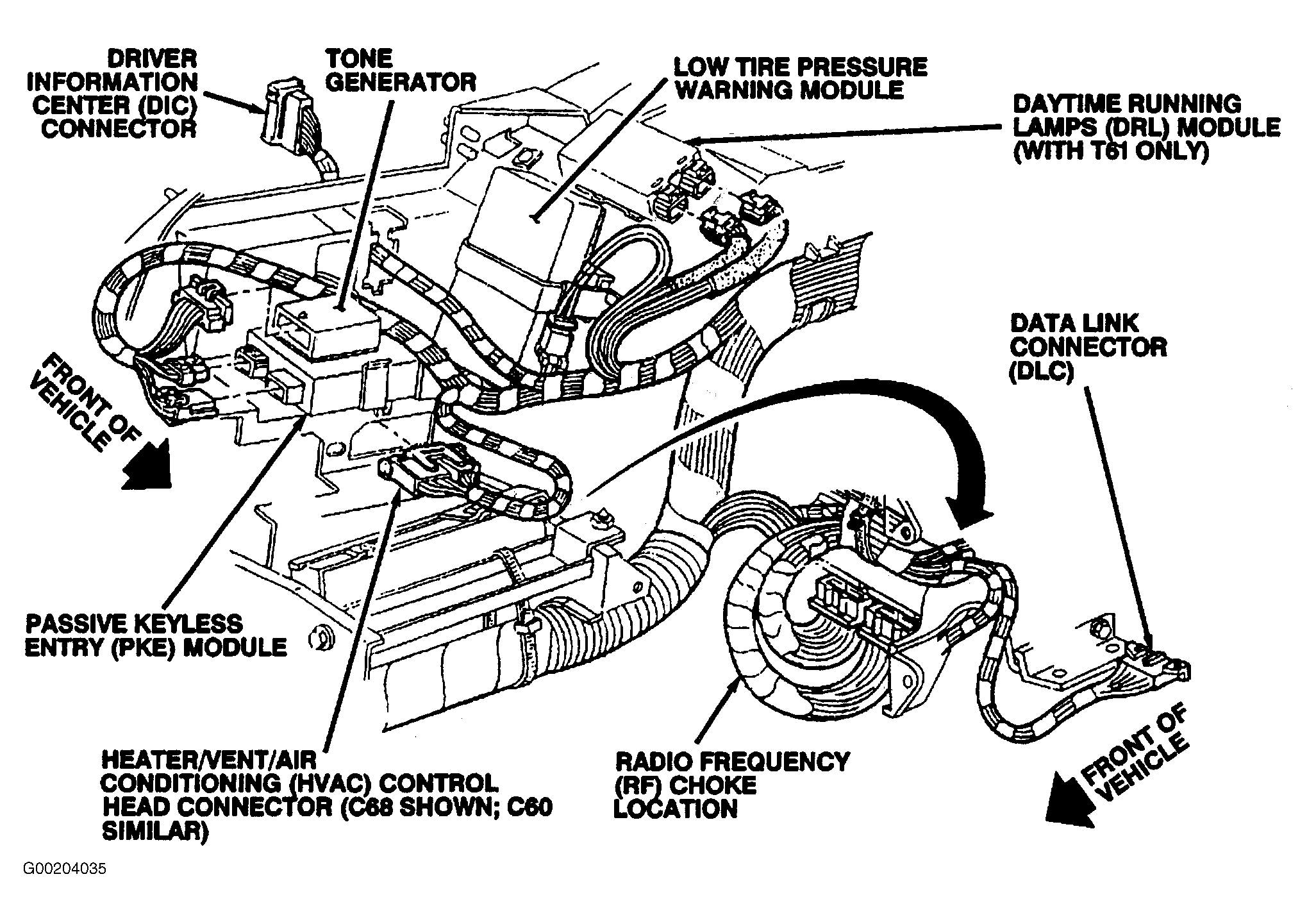

Fig 2: Identifying Electrical Components & Connectors For Data Link Connector System
G00204035Courtesy of PORSCHE OF NORTH AMERICA, INC.

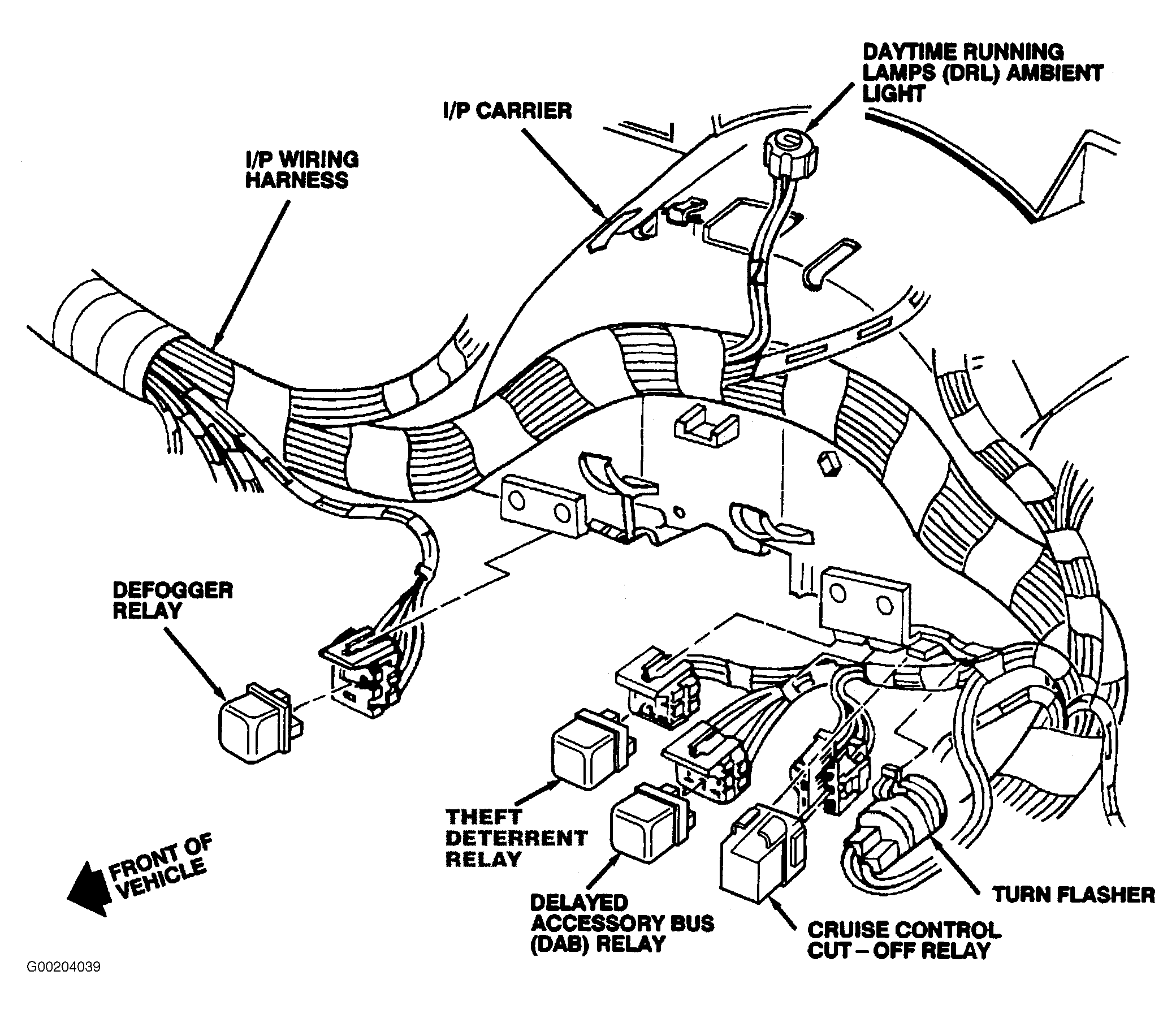

Fig 3: Identifying Delayed Accessory Bus Relays
G00204039Courtesy of PORSCHE OF NORTH AMERICA, INC.

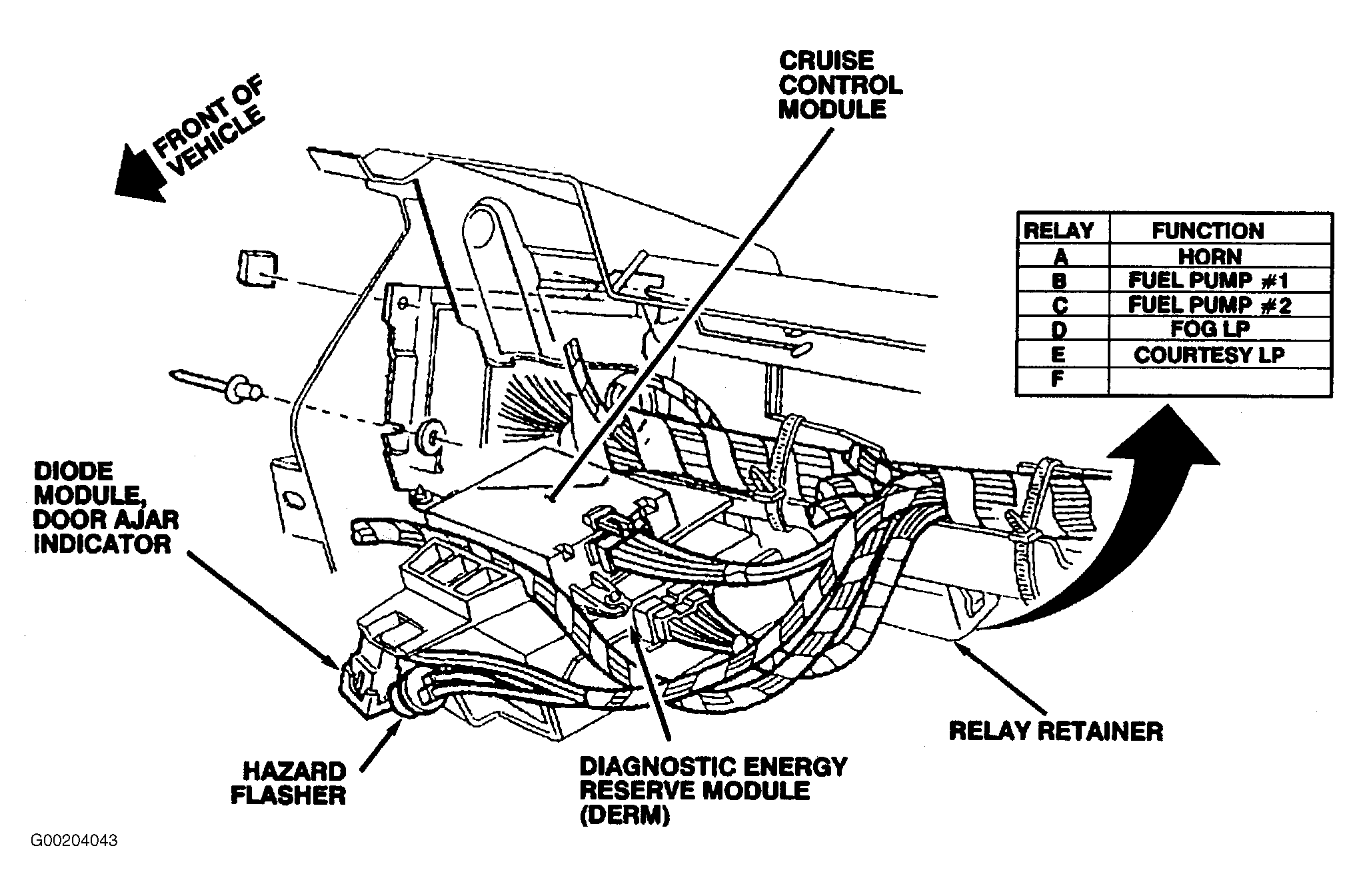

Fig 4: Identifying Diagnostic Energy Reserve Module
G00204043Courtesy of PORSCHE OF NORTH AMERICA, INC.

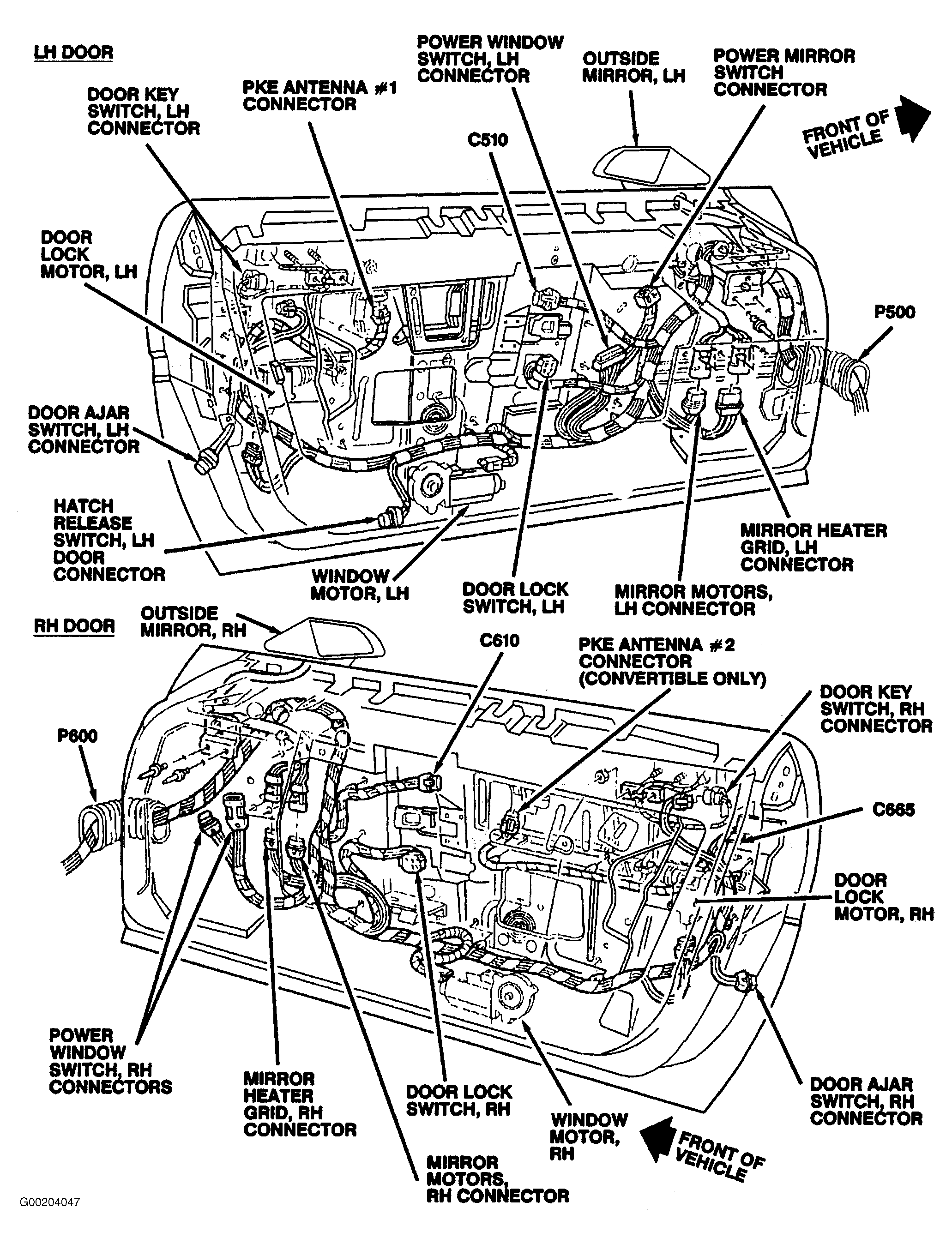

Fig 5: Identifying Door Internal Electrical Components
G00204047Courtesy of PORSCHE OF NORTH AMERICA, INC.

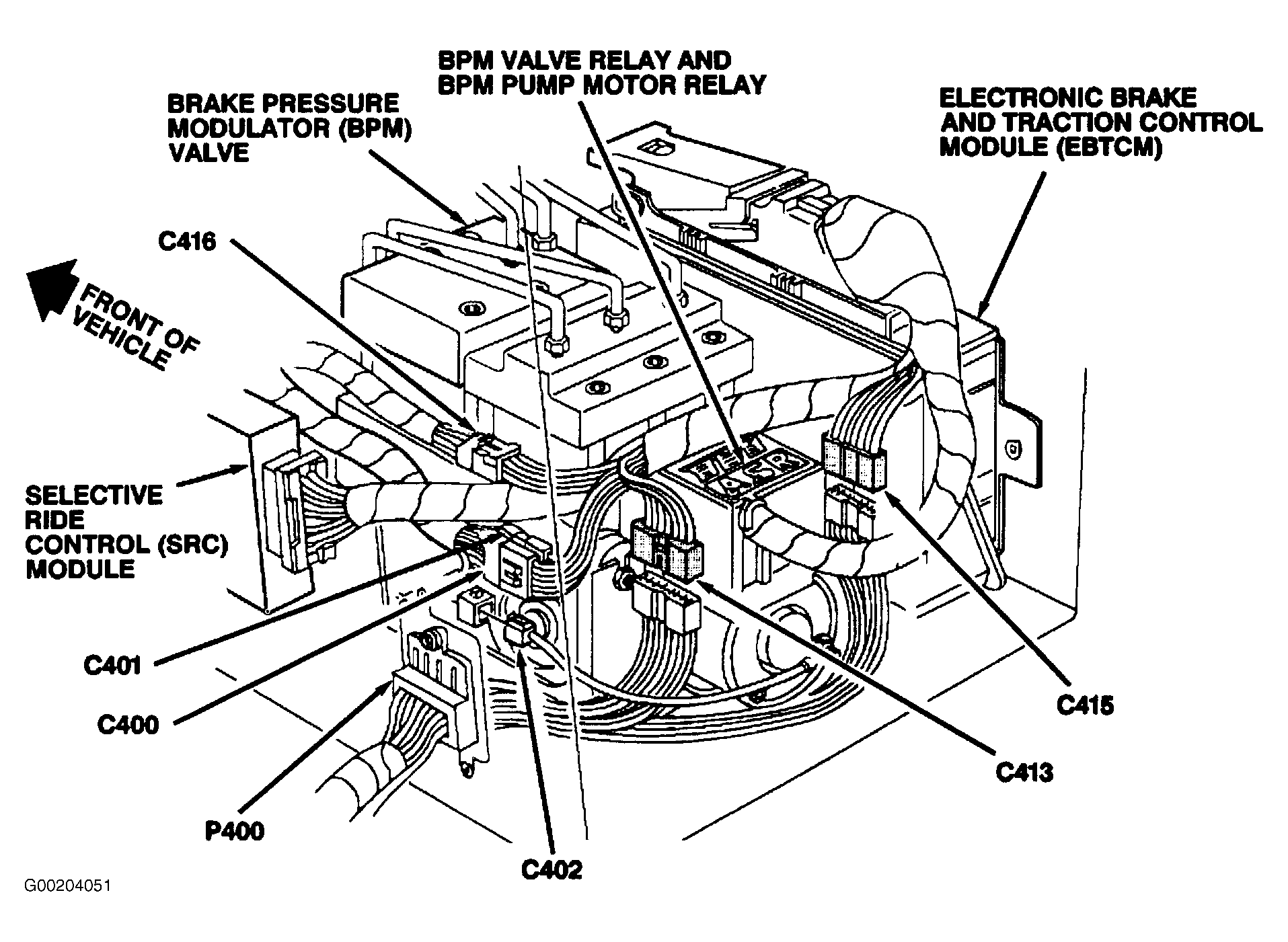

Fig 6: Identifying Components Of Electronic Brake & Traction Control System
G00204051Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fig 7: Locating Engine Control Module ECM (VIN J) & Power Control Module PCM (VIN P)
G00200882Courtesy of GENERAL MOTORS CORP.

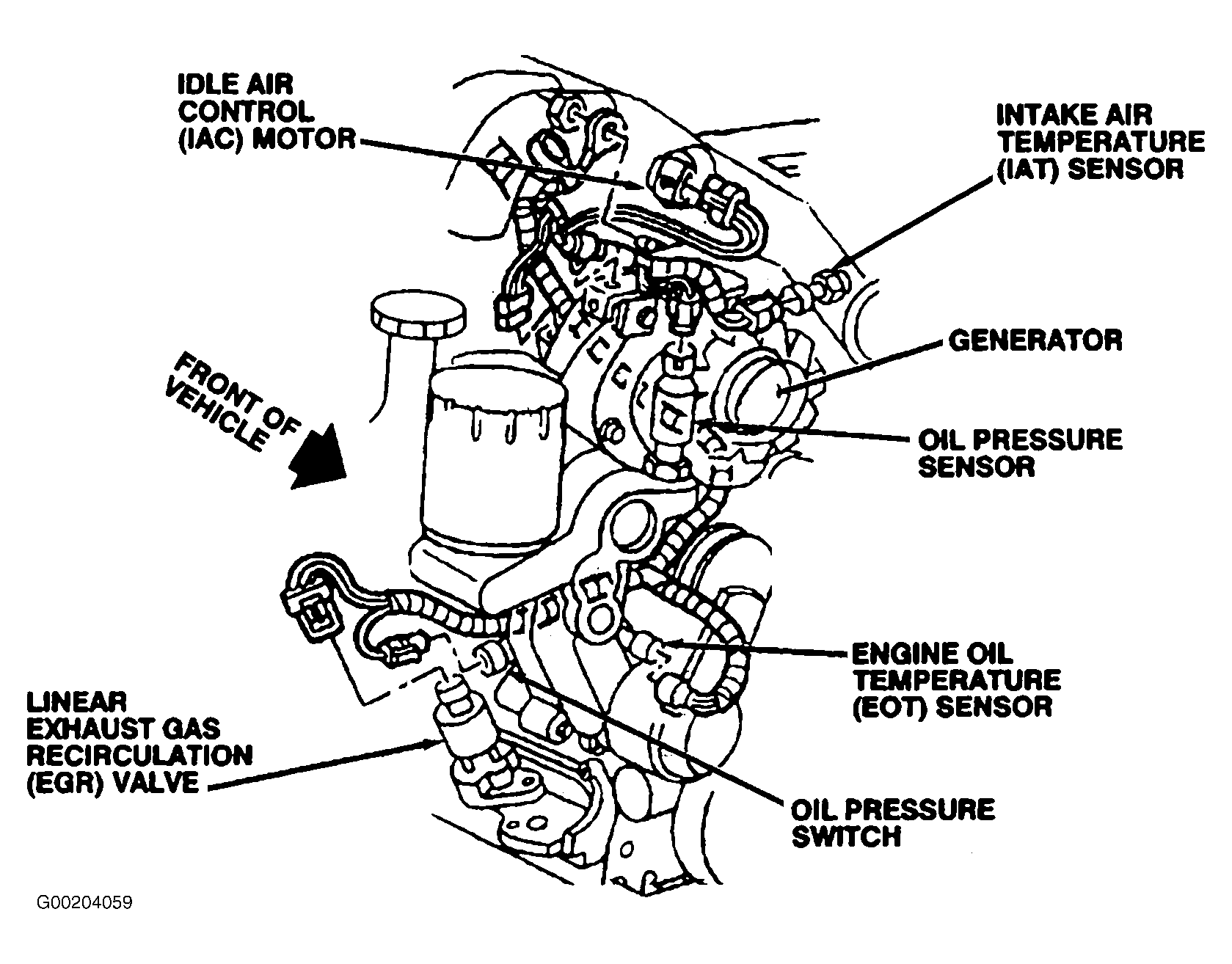

Fig 8: Identifying Oil Pressure Switch (VIN J)
G00204059Courtesy of PORSCHE OF NORTH AMERICA, INC.

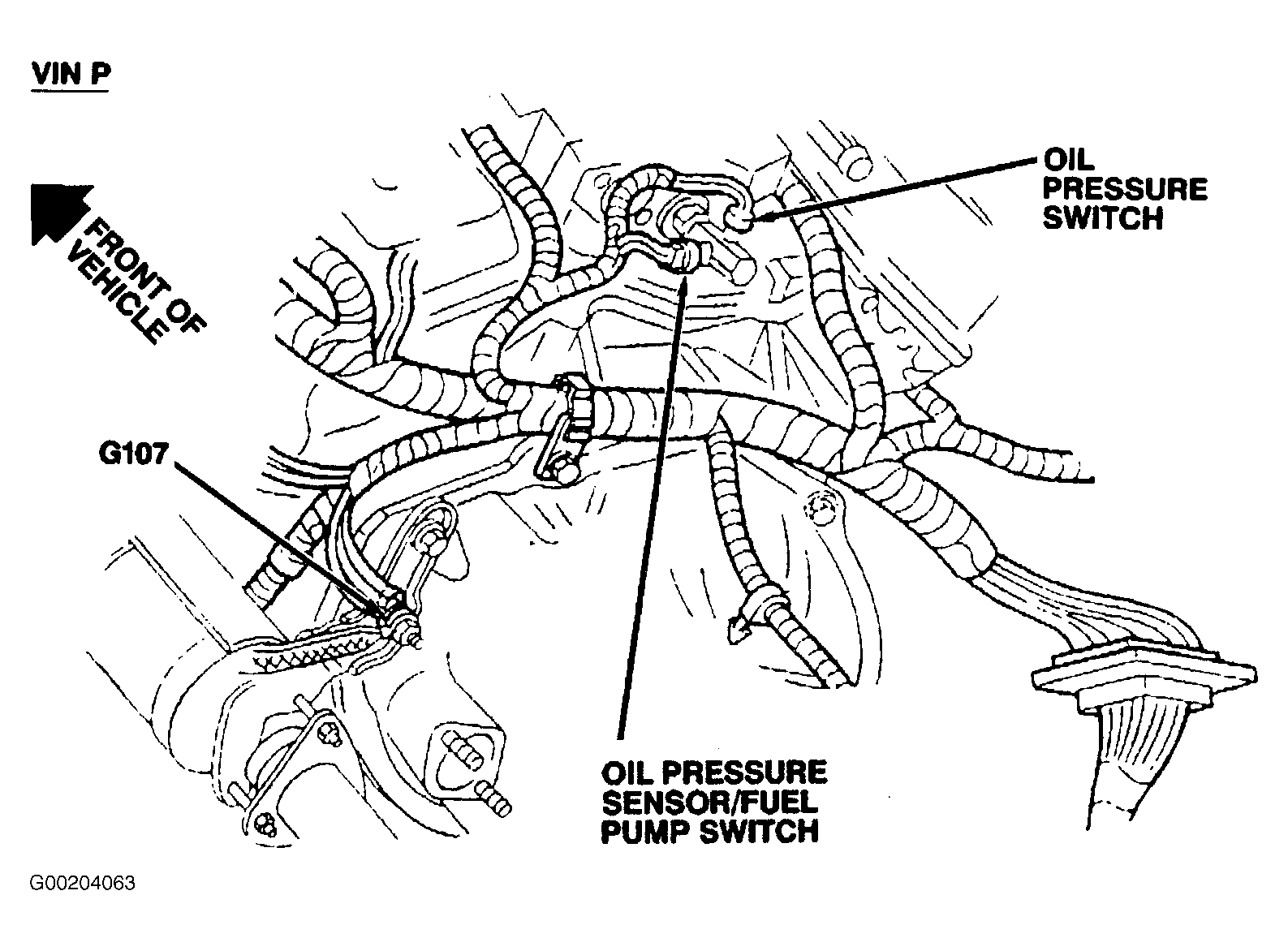

Fig 9: Identifying Oil Pressure Switch (VIN P)
G00204063Courtesy of PORSCHE OF NORTH AMERICA, INC.

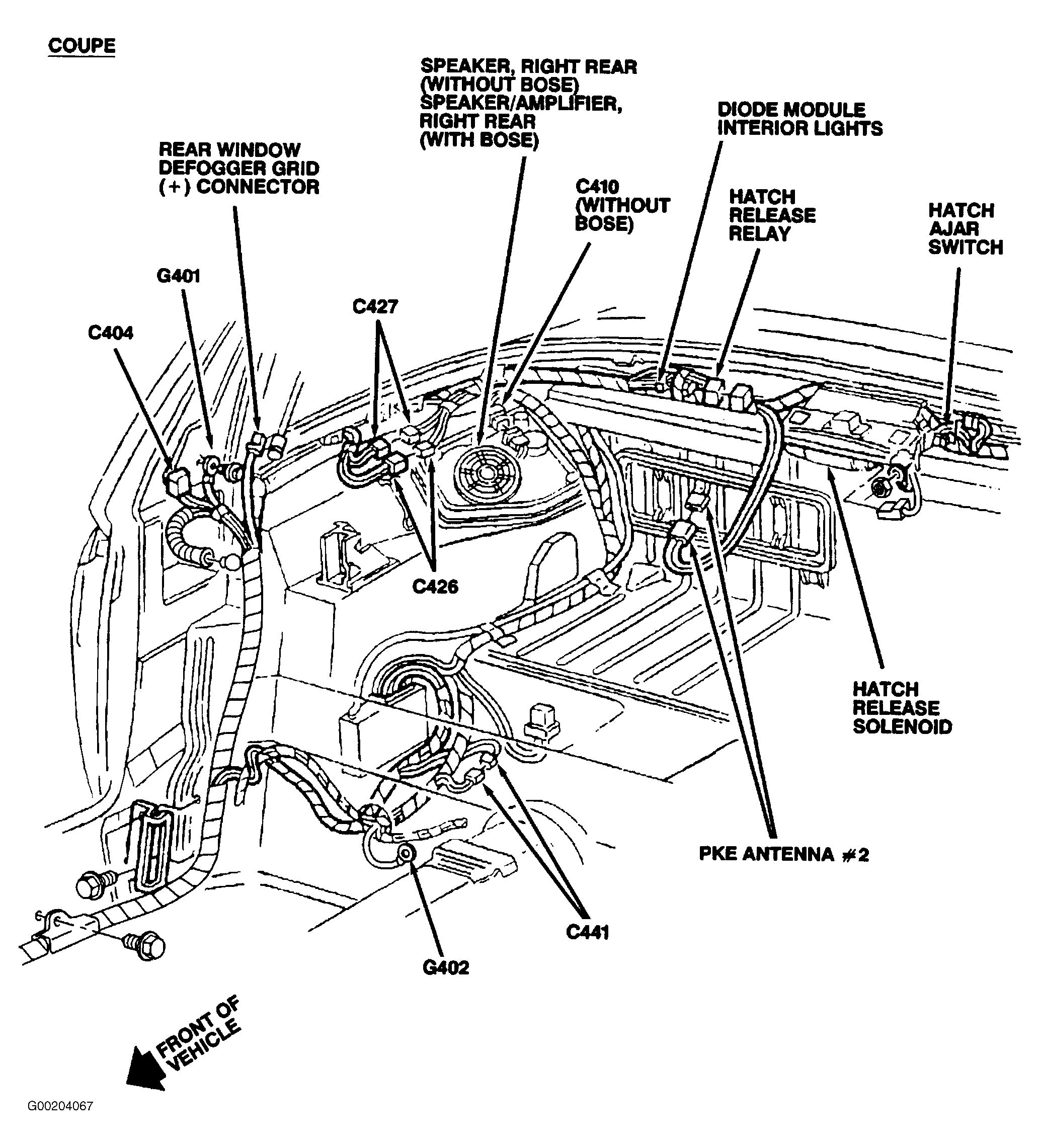

Fig 10: Identifying "Hatch Ajar" Switch & Related Components
G00204067Courtesy of PORSCHE OF NORTH AMERICA, INC.

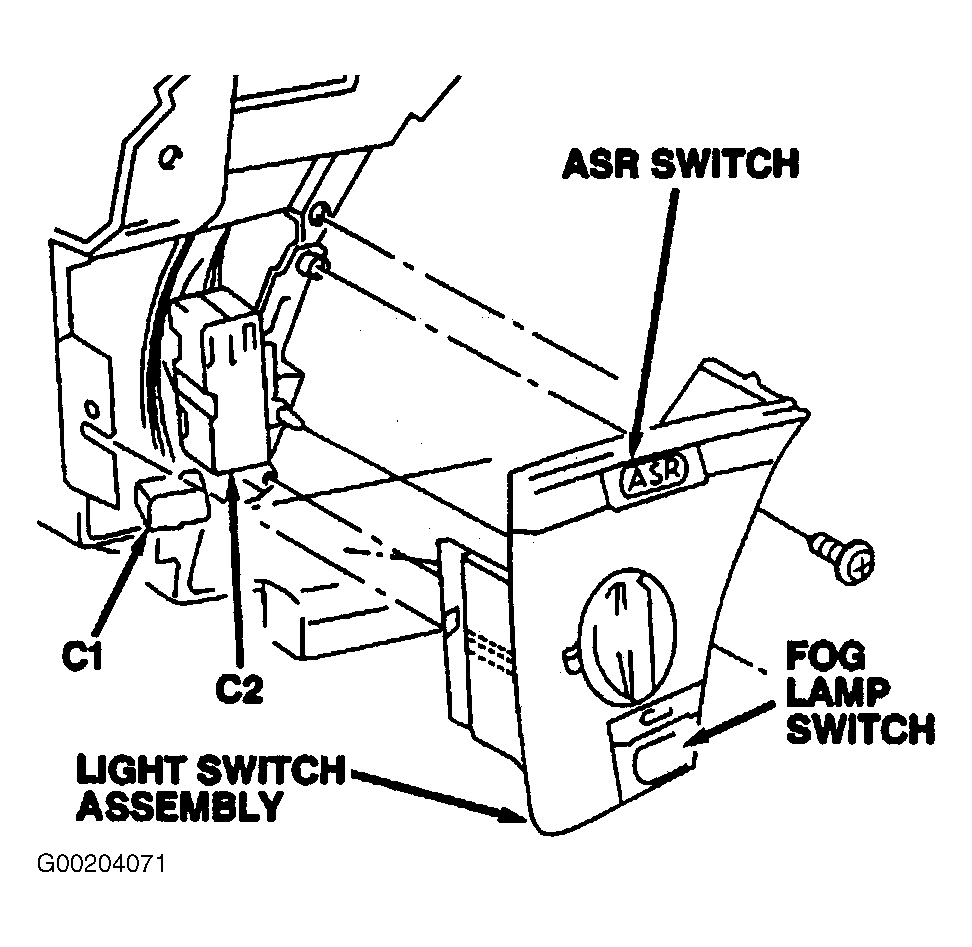

Fig 11: Identifying Headlamp Switch
G00204071Courtesy of PORSCHE OF NORTH AMERICA, INC.

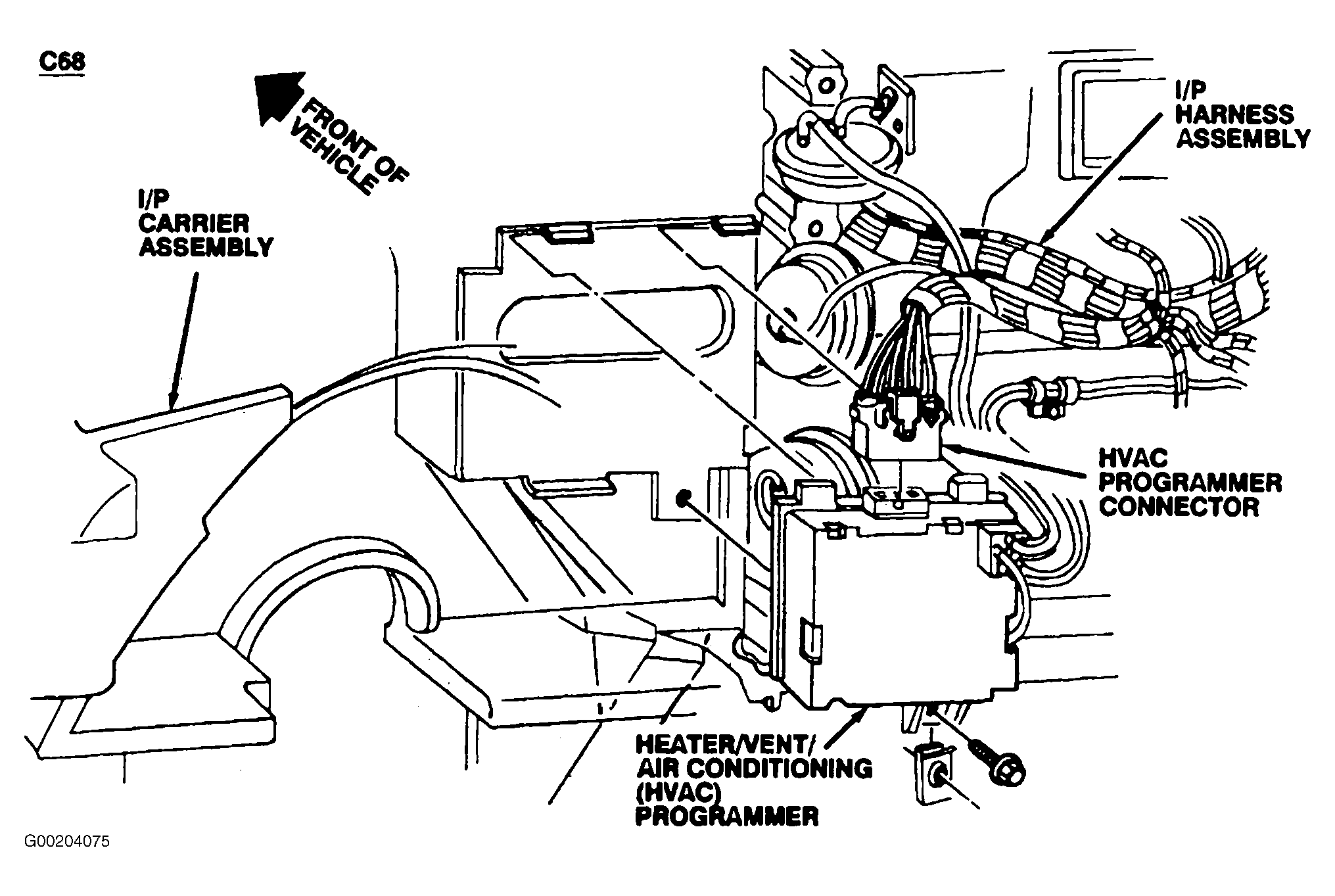

Fig 12: Identifying HVAC Electrical Connections
G00204075Courtesy of PORSCHE OF NORTH AMERICA, INC.

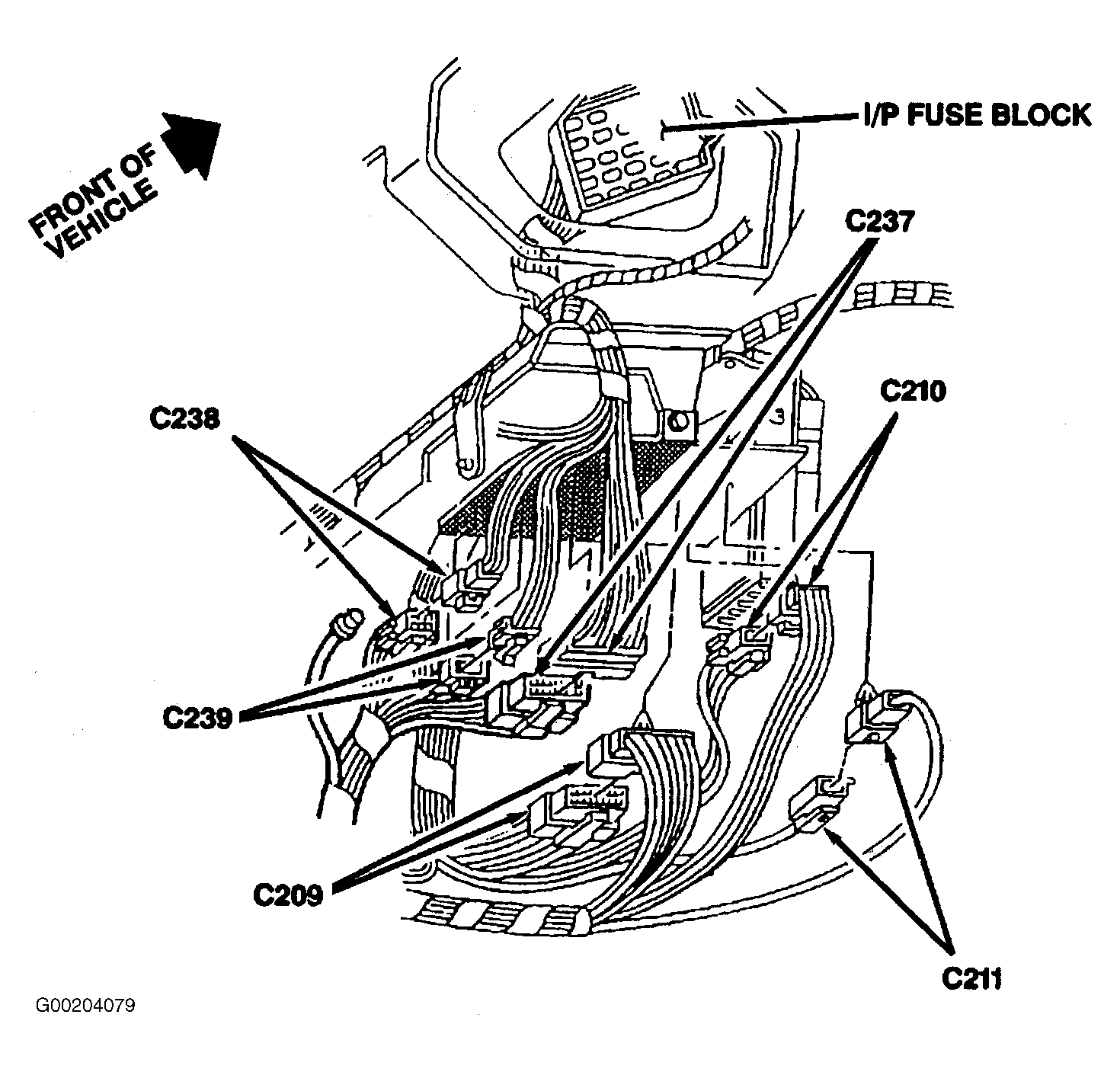

Fig 13: Identifying Electrical Connections To Instrument Panel Fuse Block
G00204079Courtesy of PORSCHE OF NORTH AMERICA, INC.

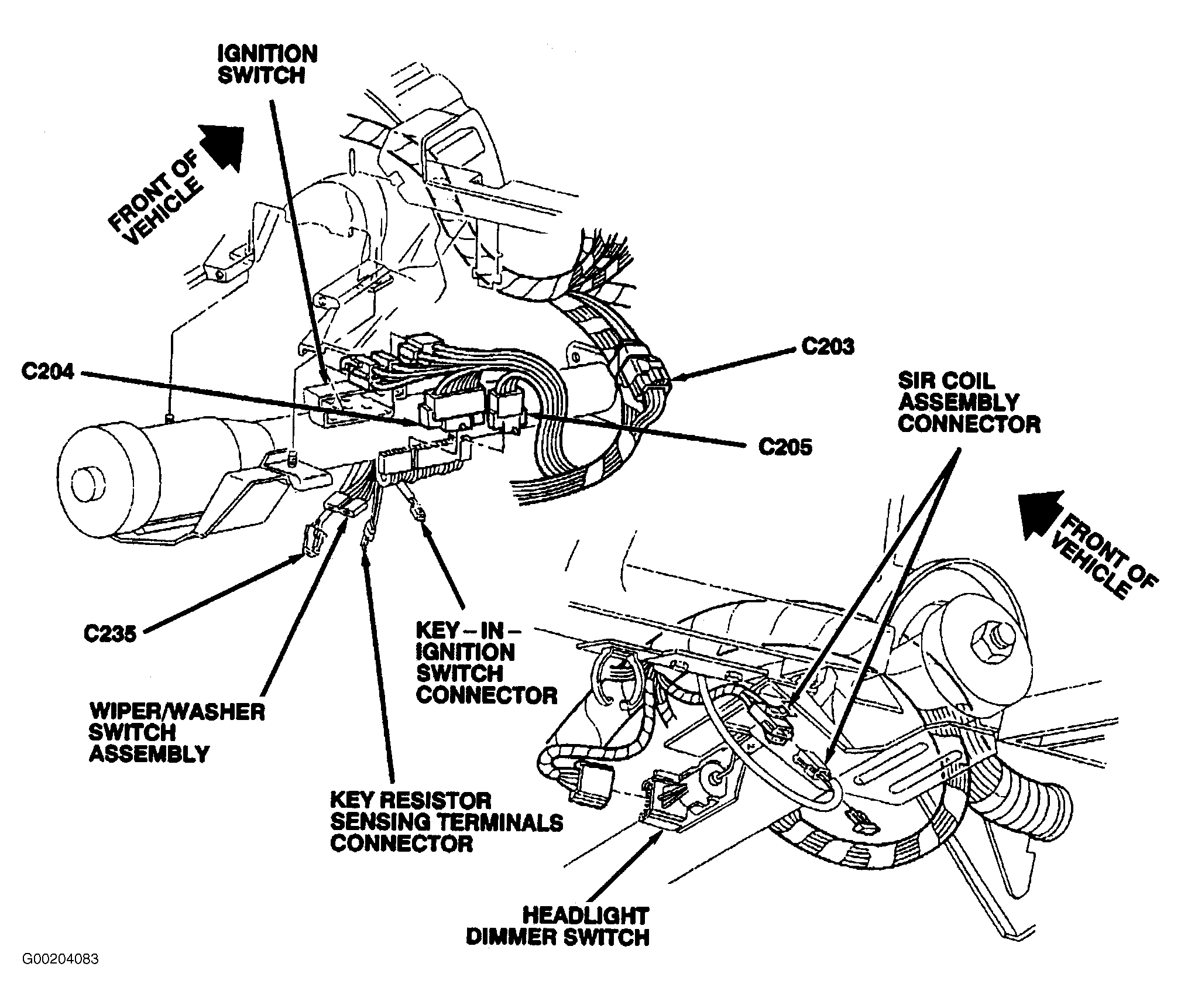

Fig 14: Identifying Ignition Lock Electrical Components
G00204083Courtesy of PORSCHE OF NORTH AMERICA, INC.

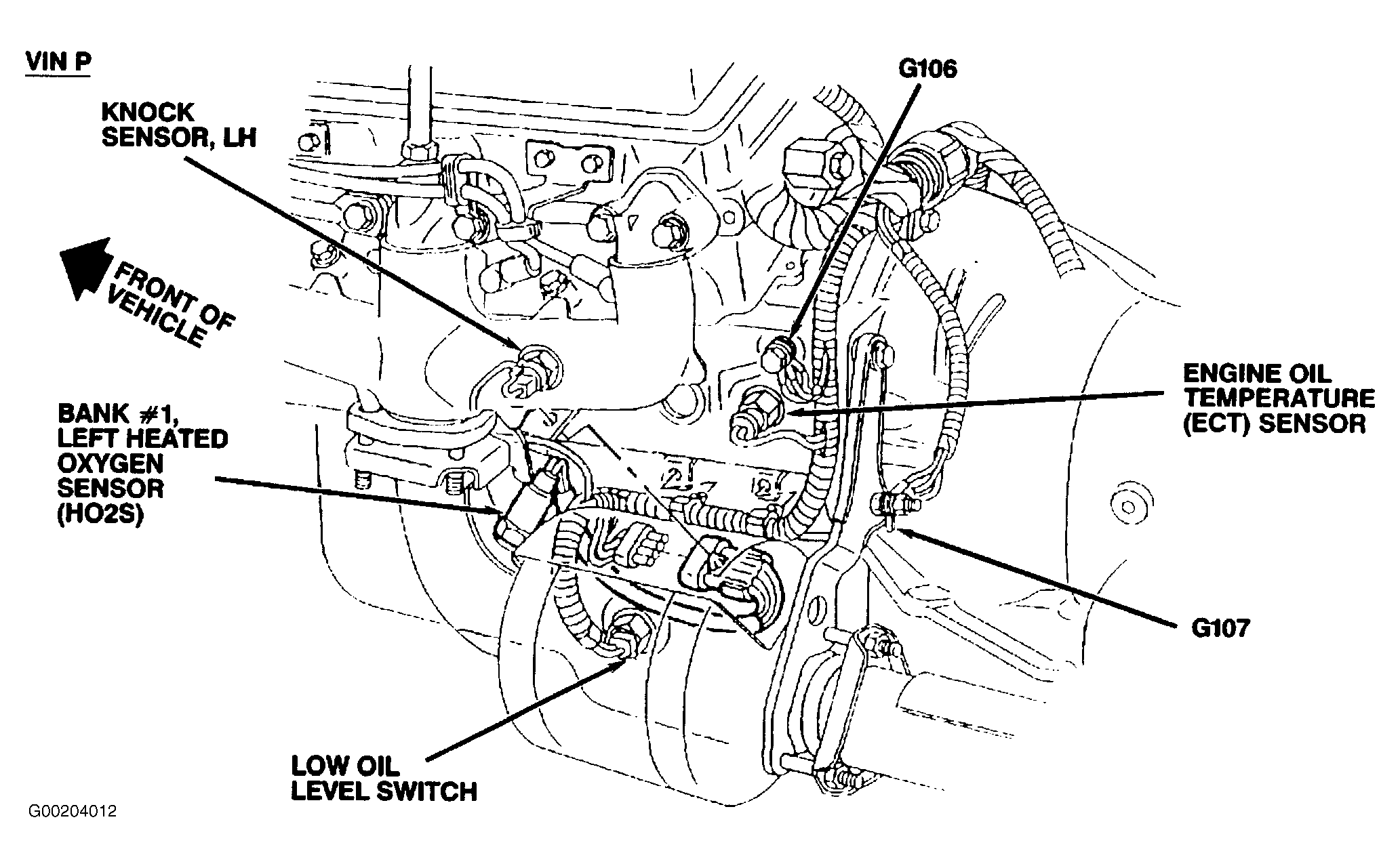

Fig 15: Identifying Low Engine Oil Switch (VIN P)
G00204012Courtesy of PORSCHE OF NORTH AMERICA, INC.

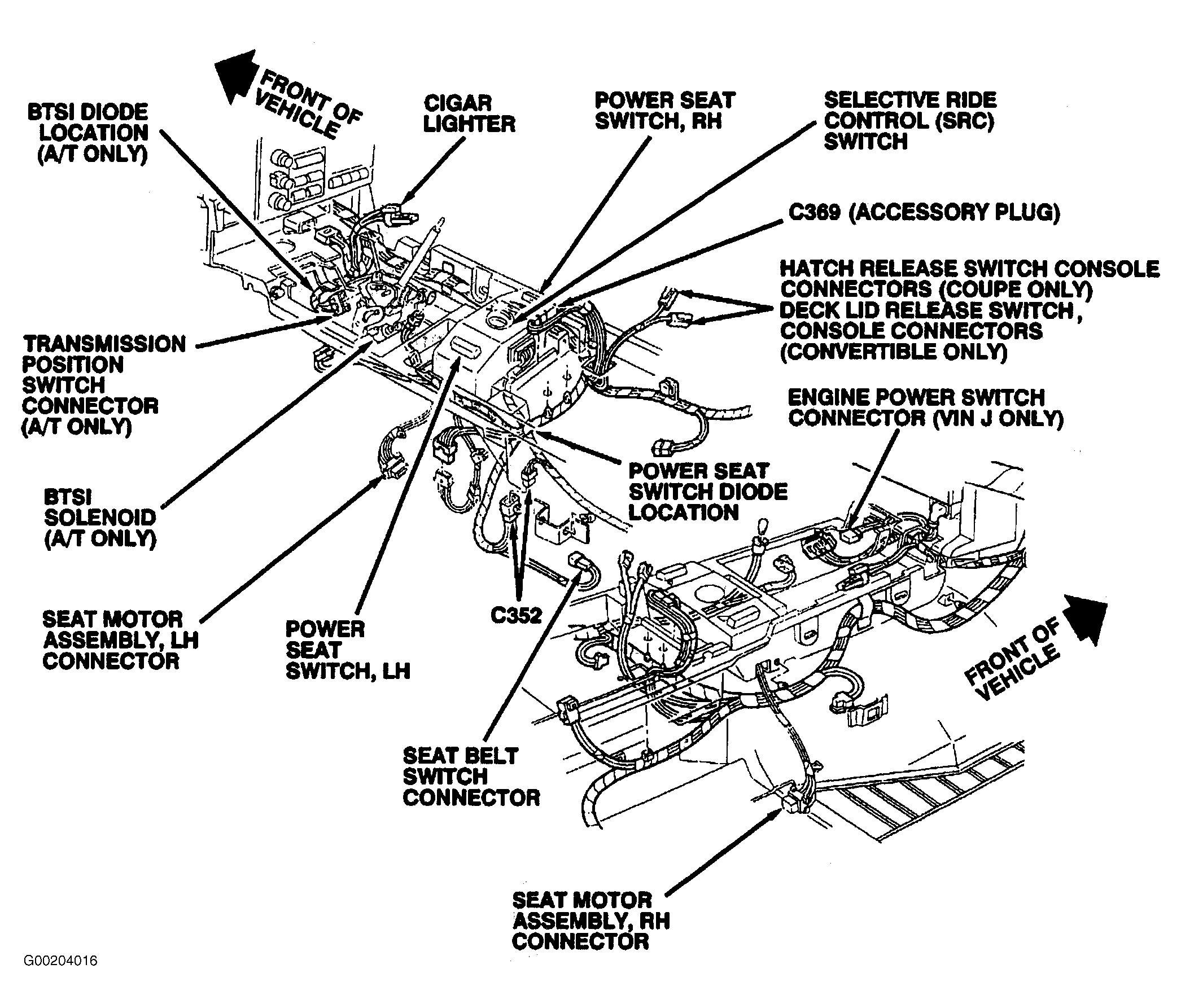

Fig 16: Identifying Seat Belt System Electrical Components (1 of 2)
G00204016Courtesy of PORSCHE OF NORTH AMERICA, INC.

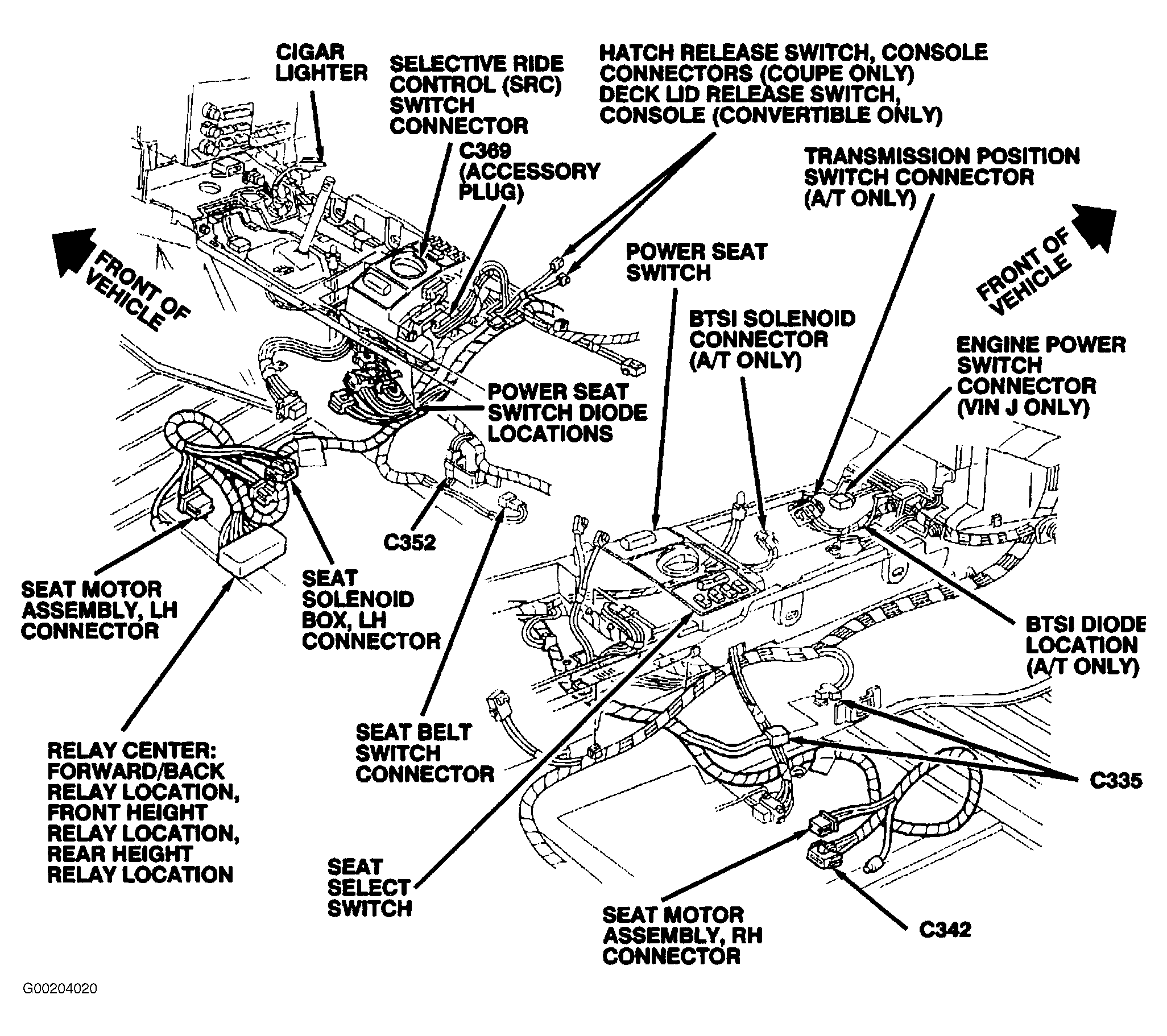

Fig 17: Identifying Seat Belt System Electrical Components (2 of 2)
G00204020Courtesy of PORSCHE OF NORTH AMERICA, INC.

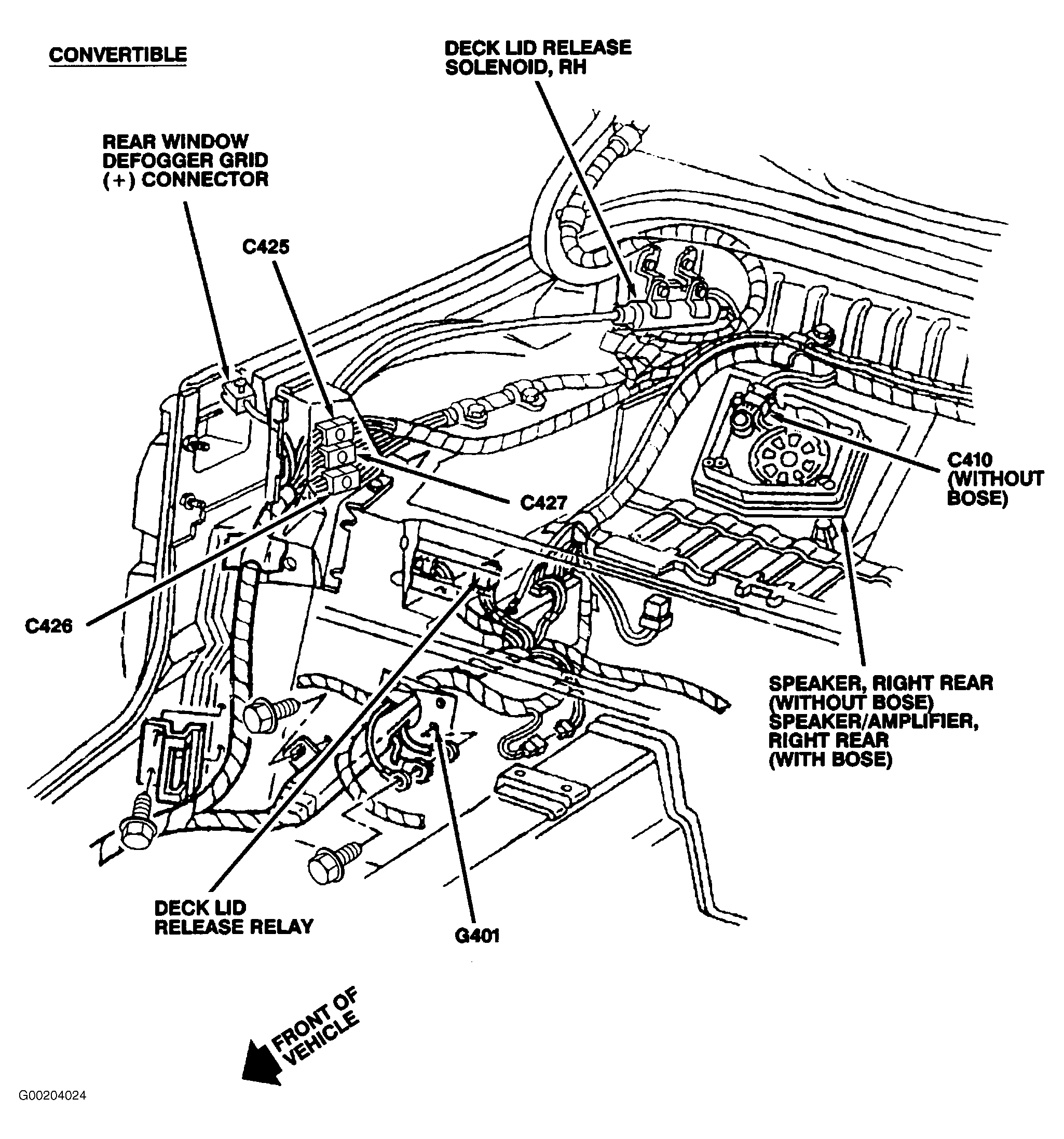

Fig 18: Identifying Convertible Top Electrical Components
G00204024Courtesy of PORSCHE OF NORTH AMERICA, INC.

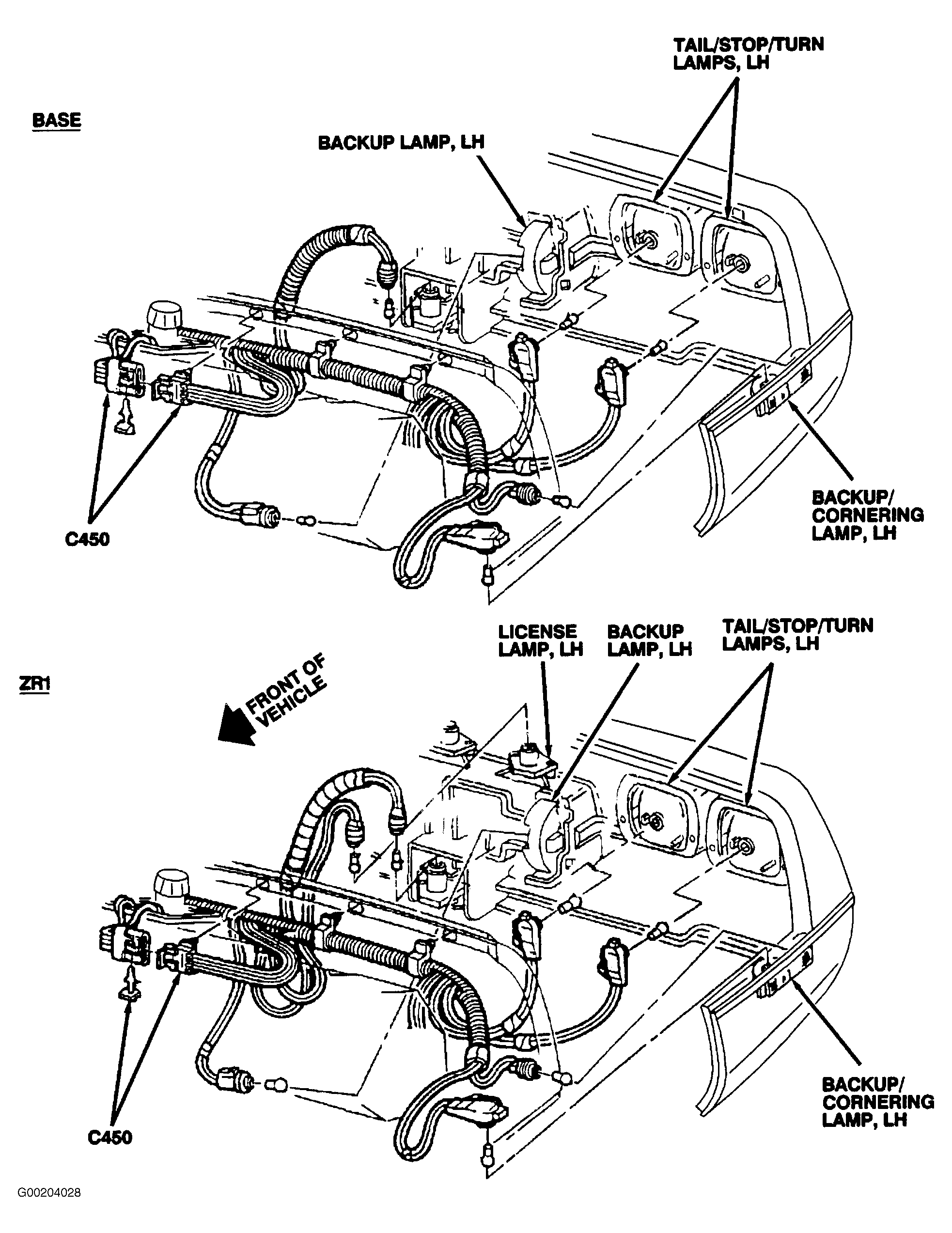

Fig 19: Identifying Rear Light Assembly Electrical Components
G00204028Courtesy of PORSCHE OF NORTH AMERICA, INC.

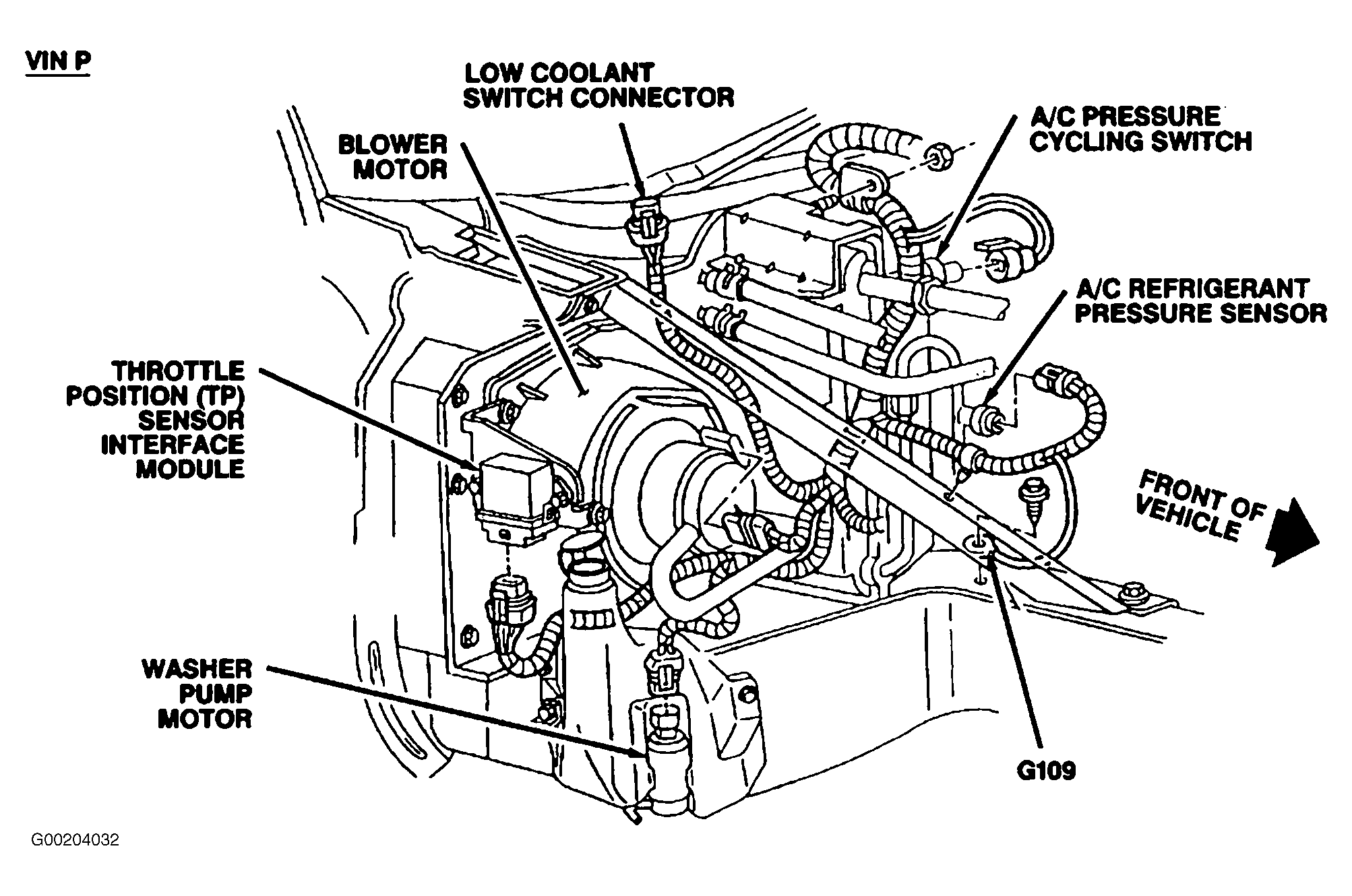

Fig 20: Identifying Electrical Connector G109
G00204032Courtesy of PORSCHE OF NORTH AMERICA, INC.

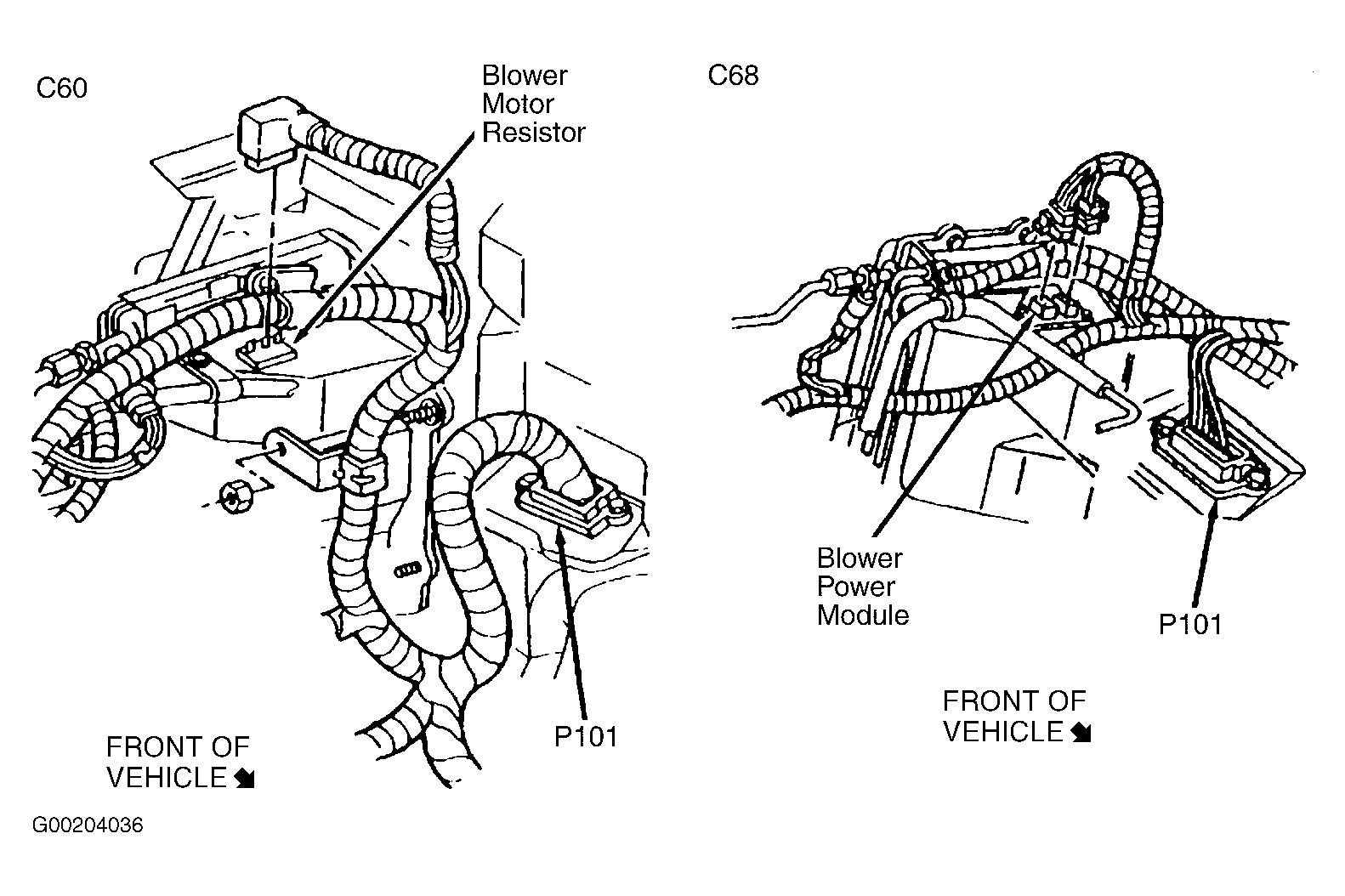

Fig 21: Identifying Electrical Connector P101
G00204036Courtesy of PORSCHE OF NORTH AMERICA, INC.

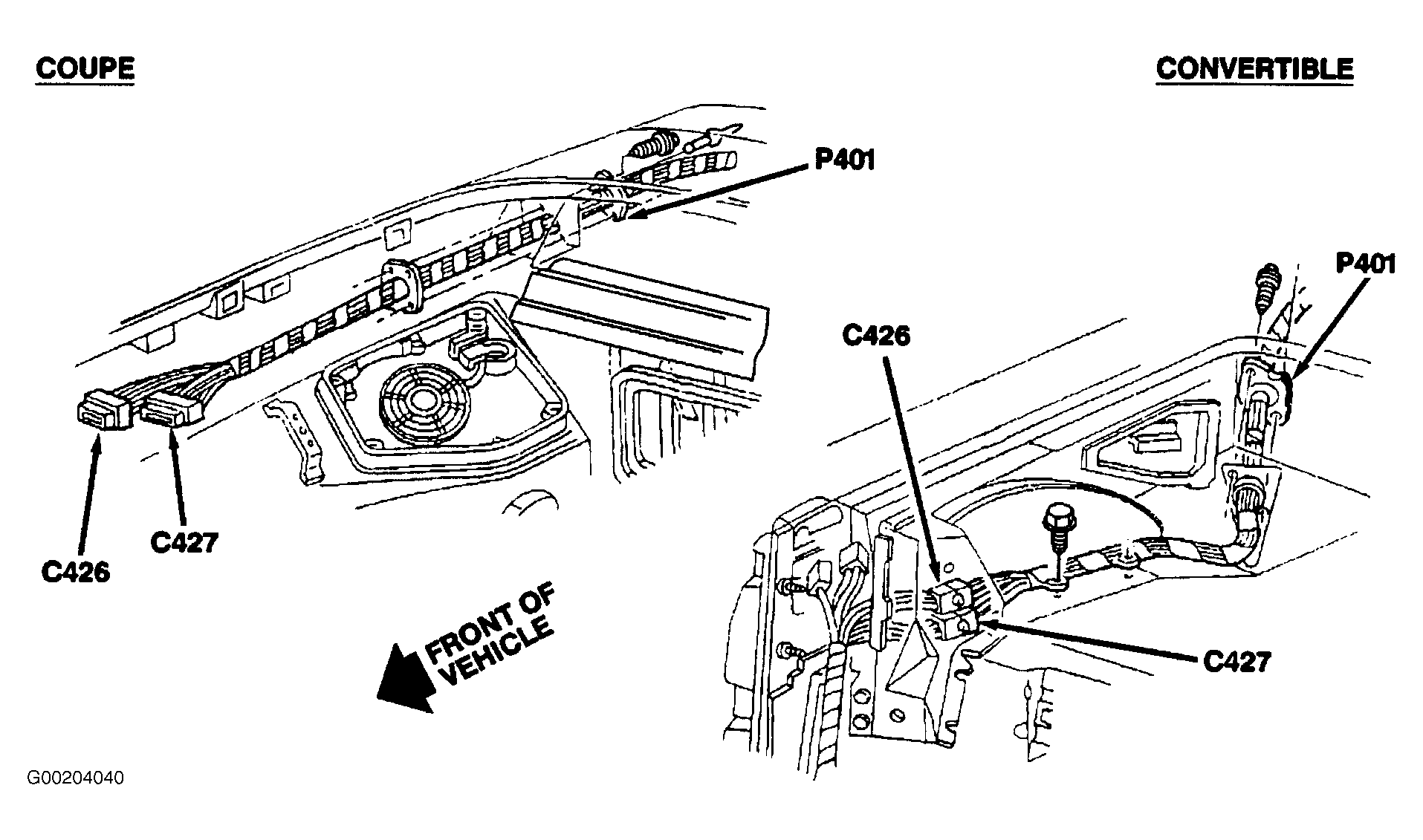

Fig 22: Identifying Rear Cargo Compartment Electrical Connectors
G00204040Courtesy of PORSCHE OF NORTH AMERICA, INC.

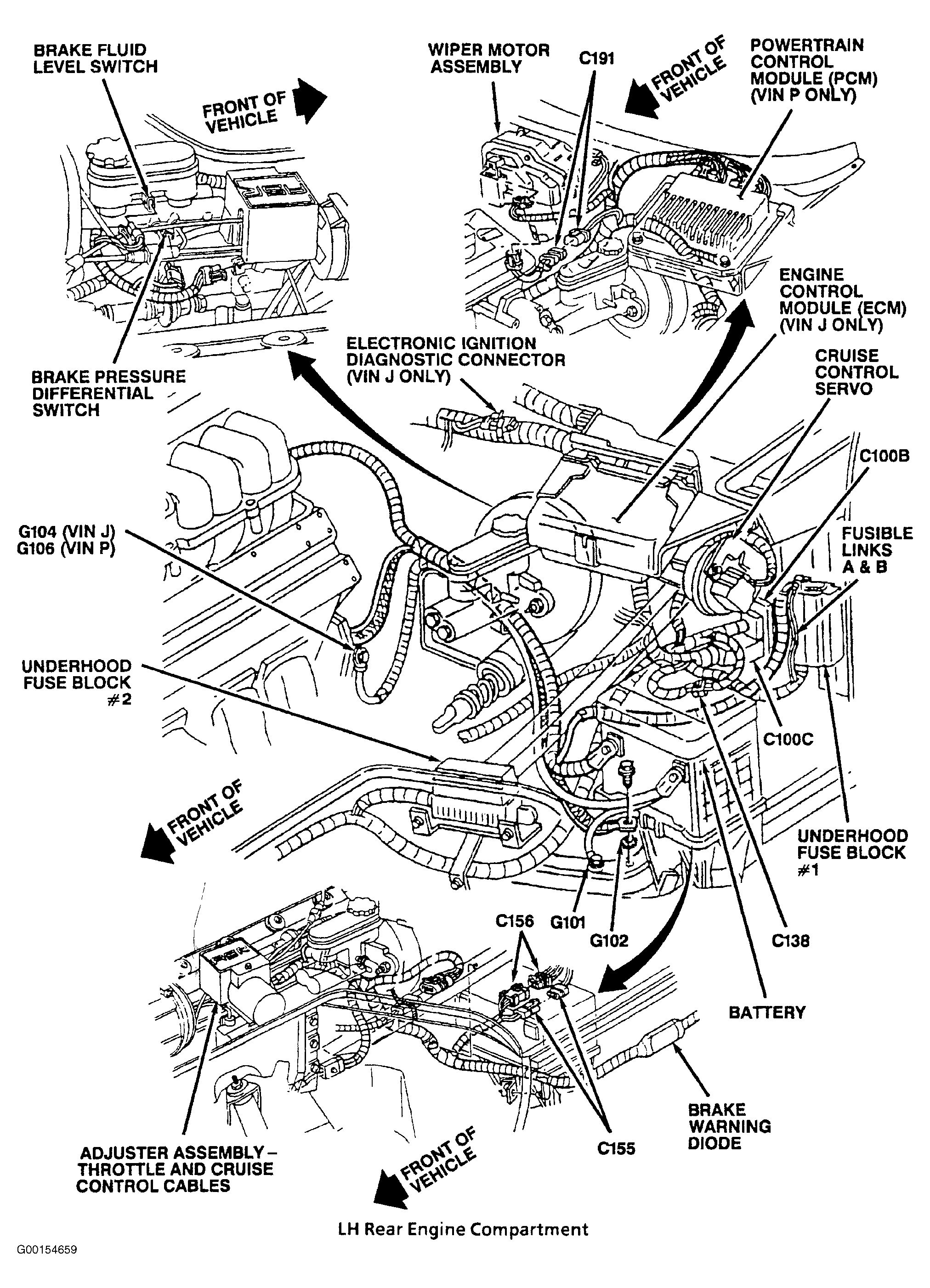

Fig 23: Locating G106 (VIN P Engine)
G00154659Courtesy of GENERAL MOTORS CORP.

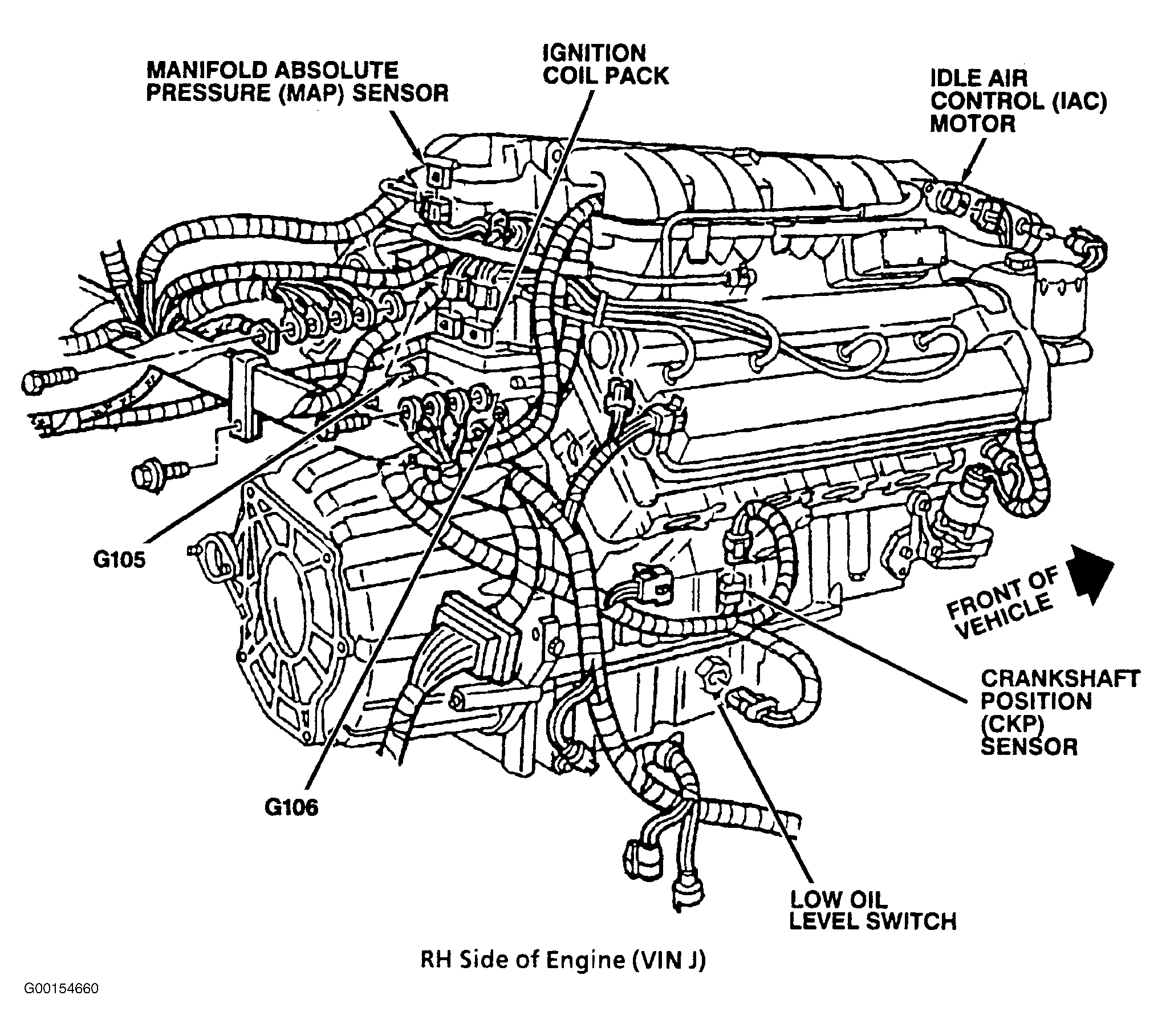

Fig 24: Locating G106 (VIN J Engine)
G00154660Courtesy of GENERAL MOTORS CORP.
