Retrieving Codes
NOTE:
Perform procedures for appropriate FUNCTIONAL TEST under TROUBLE SHOOTING CHARTS .

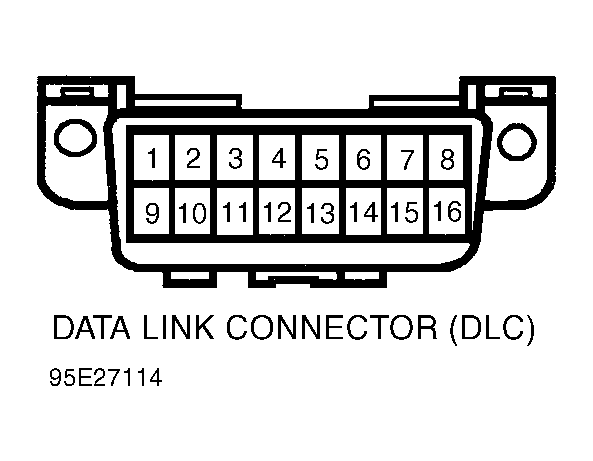

Turn ignition off. Connect Tech 1 to DLC. See Fig 1. Access 4WAL brake trouble codes using Tech 1. Repair trouble codes in order they appear. See 4WAL FAULT CODES table for diagnosis. If no fault codes are present, see 4WAL SYMPTOM DIAGNOSIS table.
4WAL SYMPTOM DIAGNOSIS
| Symptom | See | |||
|---|---|---|---|---|
| Functional Test | ||||
| 2WD | Fig. Figure | |||
| 4WD | Fig. Figure | |||

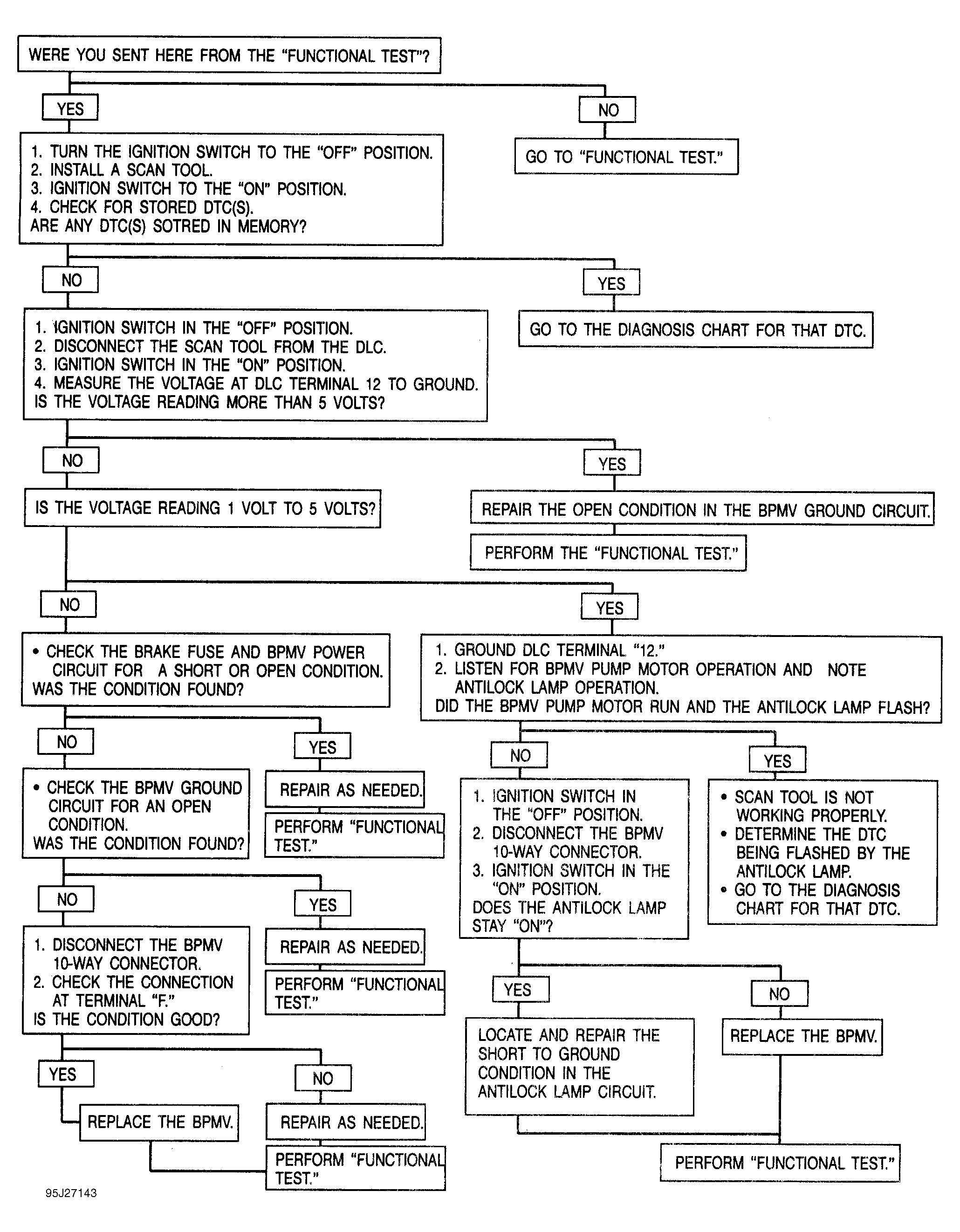

| ANTI-LOCK Light On | Fig. Figure | |||
| ANTI-LOCK Light Off (1) | Fig. Figure | |||
| Brake Pedal Pulses (1) | Fig. Figure | |||
| Wheel Pull During Hard Braking (1) | Fig. Figure | |||
|
||||
4WAL FAULT CODES
| DTC | See |
|---|---|
| 21 | Fig. Figure |
| 22 | Fig. Figure |
| 23 | Fig. Figure |
| 25 | Fig. Figure |
| 26 | Fig. Figure |
| 27 | Fig. Figure |
| 29 | Fig. Figure |
| 35 | Fig. Figure |
| 36 | Fig. Figure |
| 37 | Fig. Figure |
| 38 | Fig. Figure |
| 41-54 | Fig. Figure |
| 65 Or 66 | Fig. Figure |
| 67 Or 68 | Fig. Figure |
| 71-74 | Fig. Figure |
| 81 | Fig. Figure |
| 86 | Fig. Figure |
| 88 | Fig. Figure |
