Diagnostic Aids

An intermittent cam reference signal can be caused by poor connection, cracked sensor or internal engine problems.

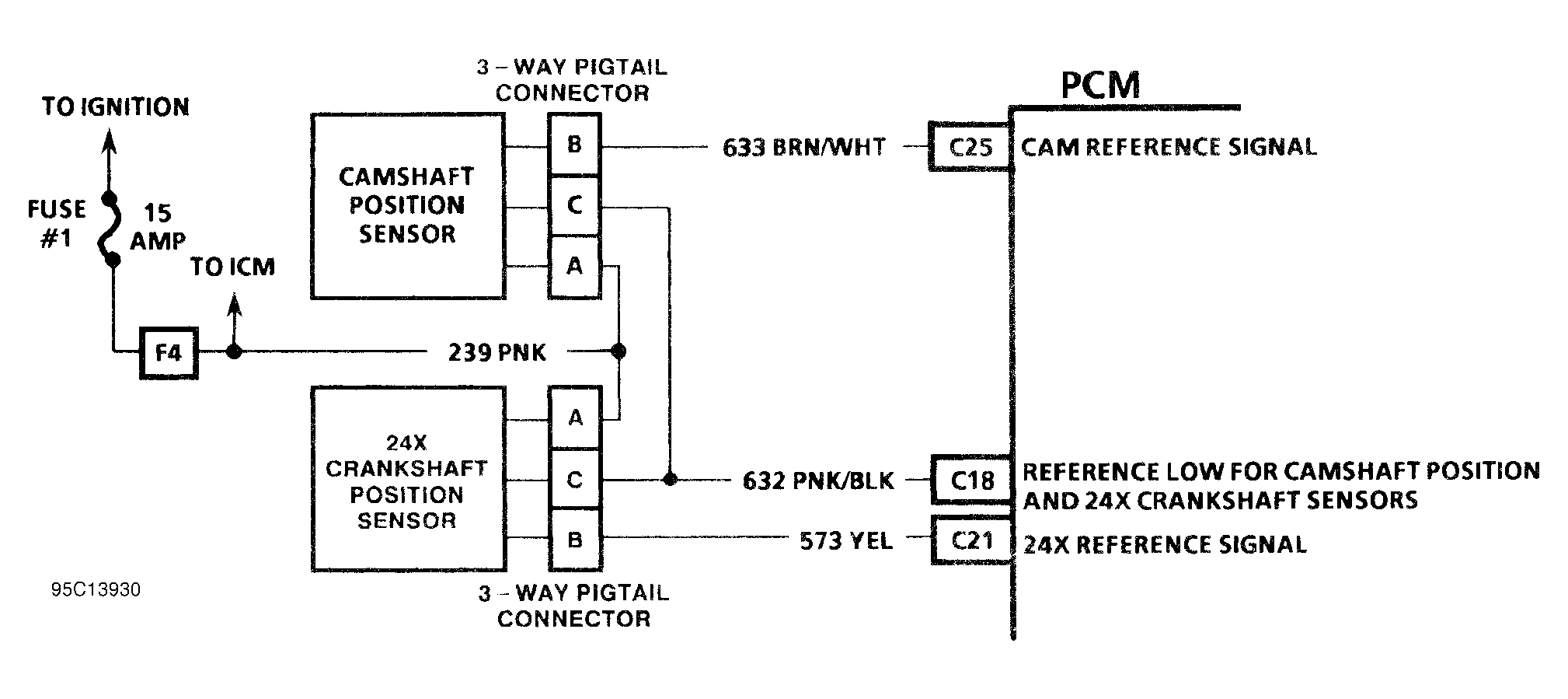

Fig 1: Code 17 Schematic (3.1L) Camshaft Sensor Error

Fig 2: Code 17 Diagnostic Flow Chart (3.1L) Camshaft Sensor Error
