Diagnostic Aids

Check all connections to transmission pass-through connector. An open in the ignition feed circuit will cause multiple codes to set.

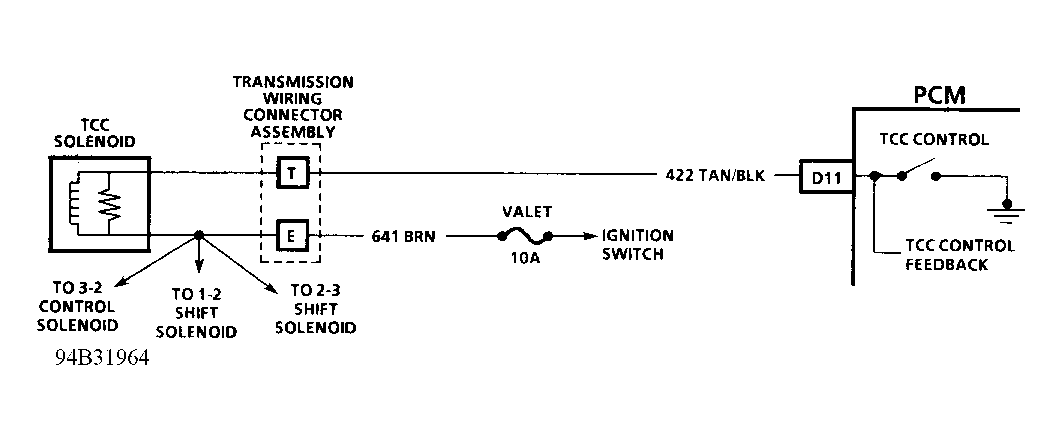

Fig 1: Code 90 Schematic (Corvette) TCC Solenoid Circuit

Fig 2: Code 90 Flow Chart (Corvette) TCC Solenoid Circuit
