Diagnostic Aids

Check all connections at the transmission. An open in ignition feed circuit can cause multiple codes to set.

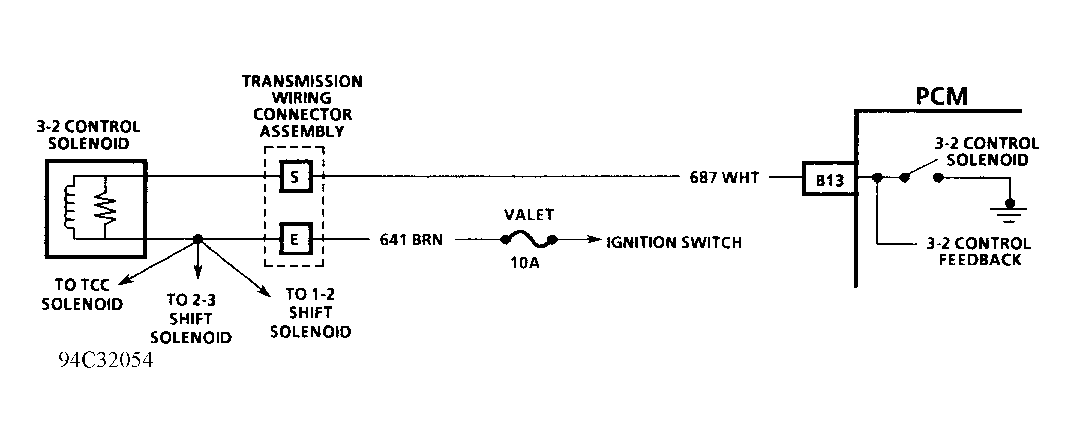

Fig 1: Code 84 Schematic (Corvette - A/T) 3-2 Control Solenoid

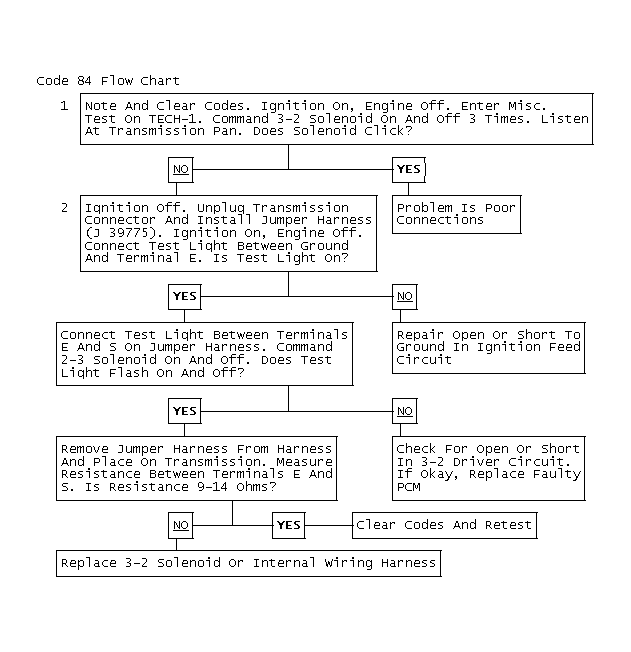

Fig 2: Code 84 Flow Chart (Corvette - A/T) 3-2 Control Solenoid

Fig 3: Code 84 Flow Chart
