Window Stop

NOTE: Numbers in parenthesis refer to numbers in illustration.
  1. Remove the door trim panel, see TRIM PANEL  under REMOVAL & INSTALLATION.
  2. Lower the window until it is flush with the window sill.

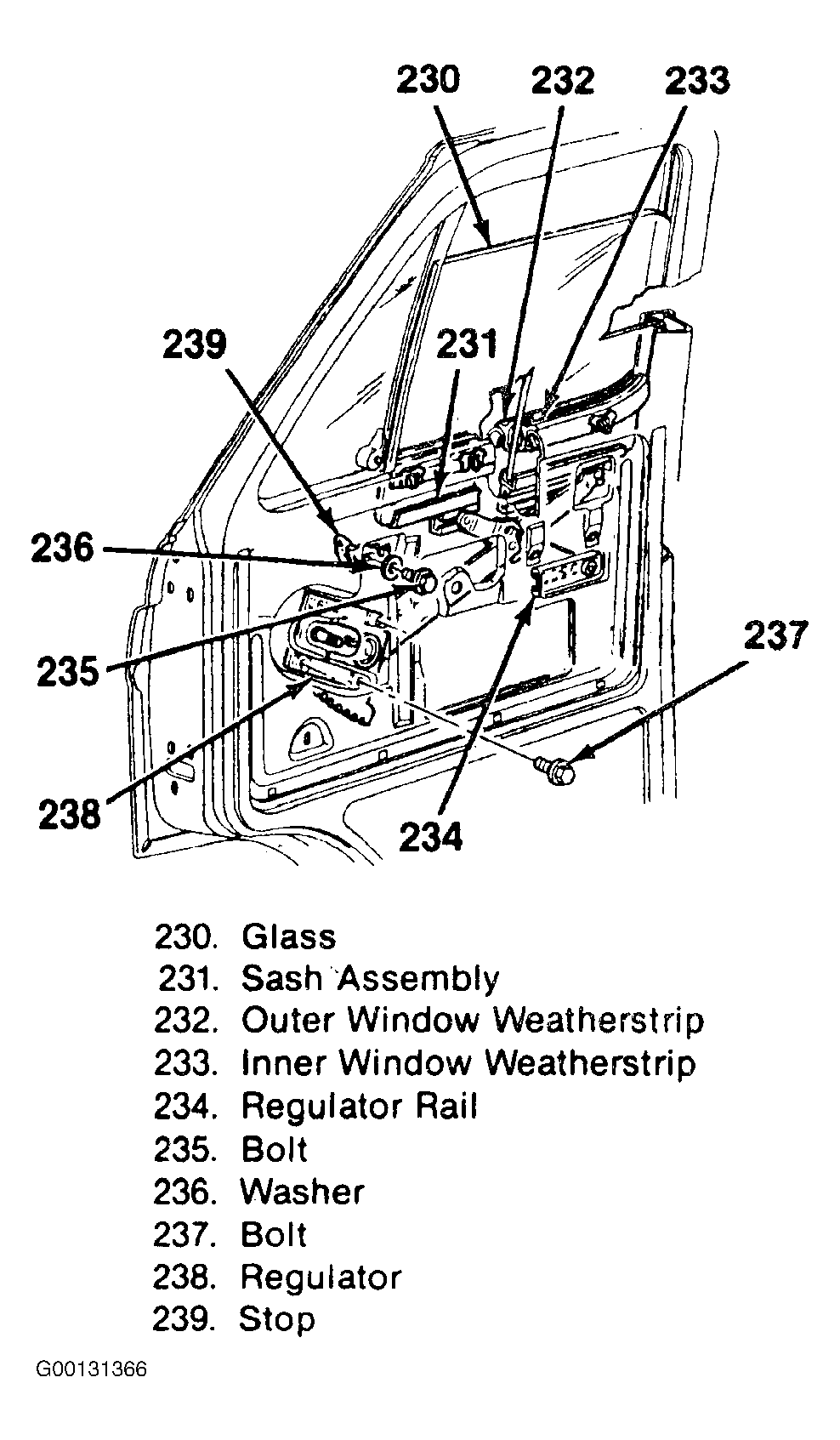

  3. Loosen the glass stop bolt (235), and adjust the stop (239) until the glass is completely flush with the window sill. See Figure . See TORQUE SPECIFICATIONS  .
  4. Install the trim pad. SeeTRIM PANEL  under REMOVAL & INSTALLATION.
