EXPERTEC TSB (94C17)

WARNING: This page is about the C3500 HD 5.7 K, _NA_, CNG, which is a different variant/trim than selected.

Publication date: 1994-02-09
Reference number: 94C17

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 94C17, Date of Issue: 02/09/94

Chevrolet 94C17

02/09/1994

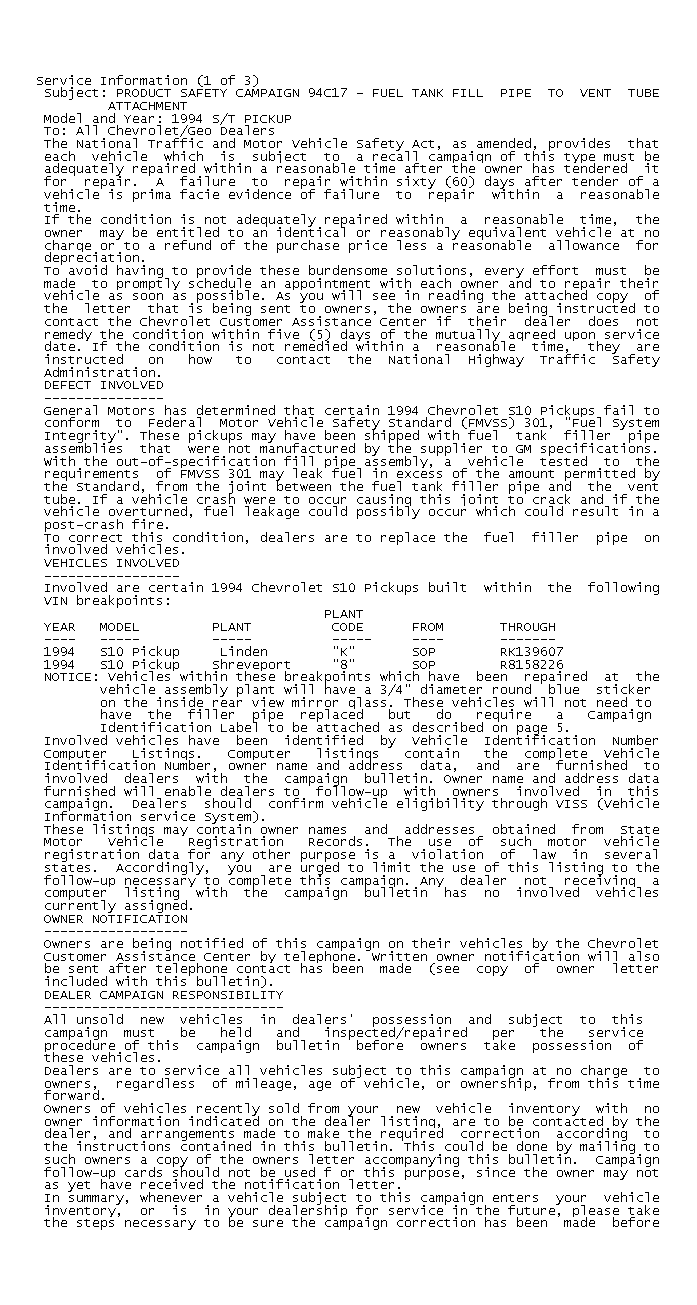

Fig 1: Service Information (1 of 3)

Fig 2: Service Information (2 of 3)

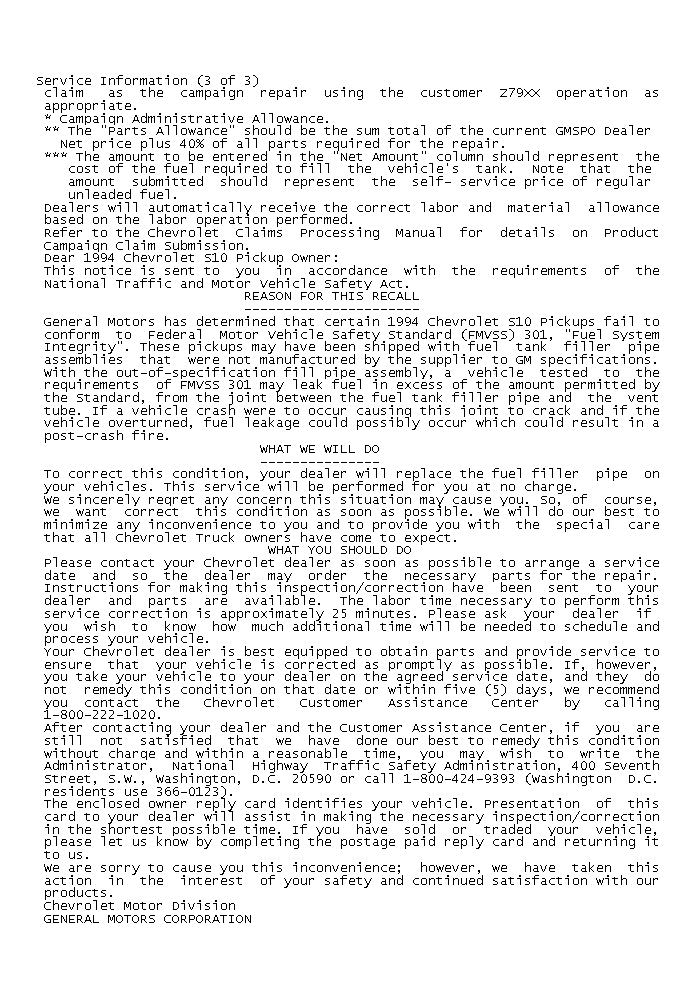

Fig 3: Service Information (3 of 3)
