Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Module | In engine compartment, on center of firewall. See Figure . | |
| Air Bag | ||
| Control Module | Behind right front kick panel. | |
| Initiator Module | On center of steering wheel. | |
| Resistor Module | Taped to wiring harness, near fuse block. | |
| Warning Light Module | Above glove box, taped to wiring harness. | |
| Cruise Control Module | Behind right side of dash, above glove box. | |
| Daytime Running Lights (DRL) Module | Behind right side of dash, above glove box. | |
| Electronic Ignition (EI) Module | ||
| 2.2L | On right rear of engine, near transaxle. See Figure . | |

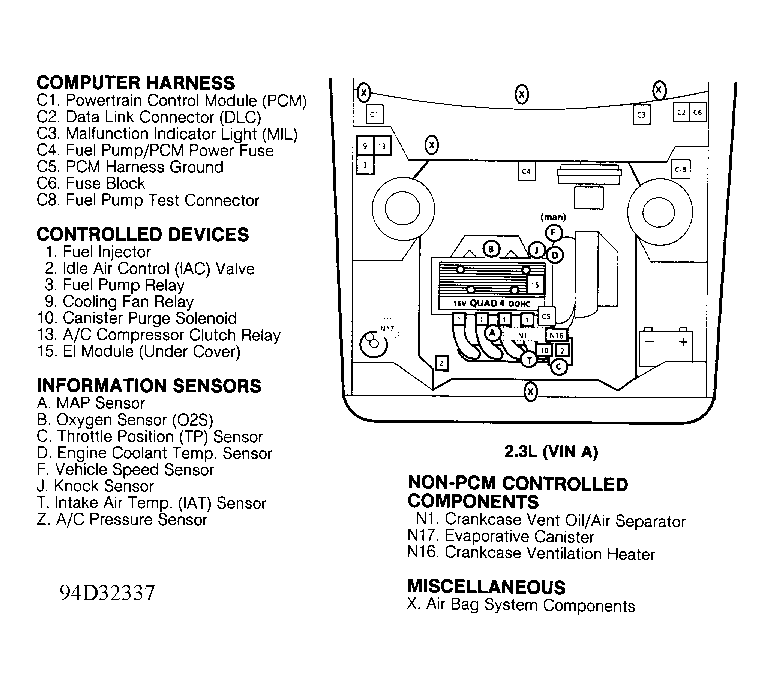

| 2.3L | Under rocker cover. See Figure . | |

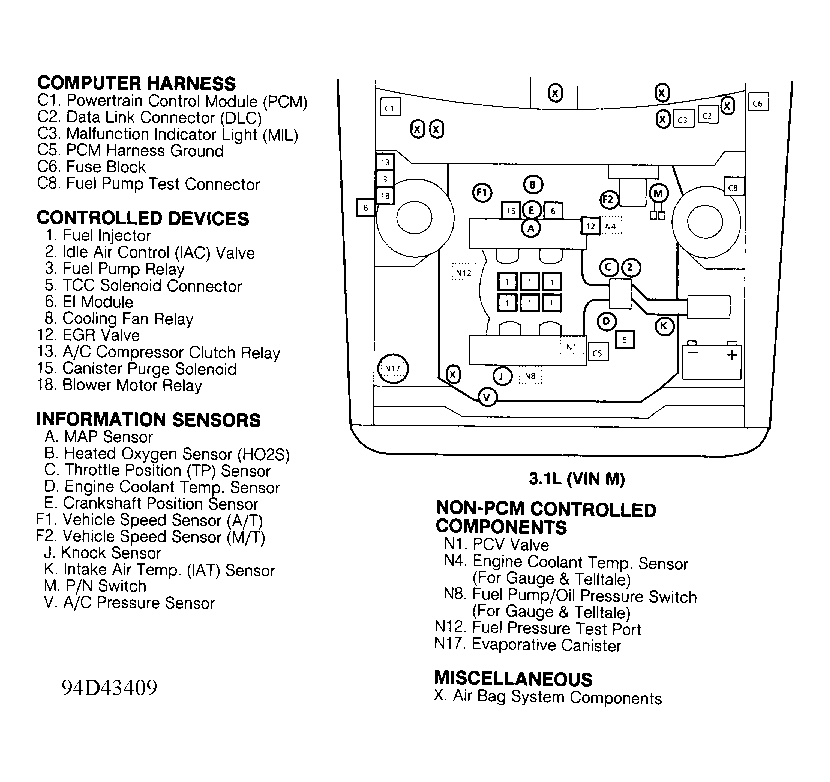

| 3.1L | On top right of engine, behind alternator. See Figure . | |
| Power Door Unlock Module | Under right side of dash. | |
| Powertrain Control Module (PCM) | ||
| 2.2L | Behind right kick panel. See Figure . | |
| 2.3L | Behind right kick panel. See Figure . | |
| 3.1L | Behind right kick panel. See Figure . | |
