Diagnostic Aids

Scan tester does not have the ability to help diagnose Code.

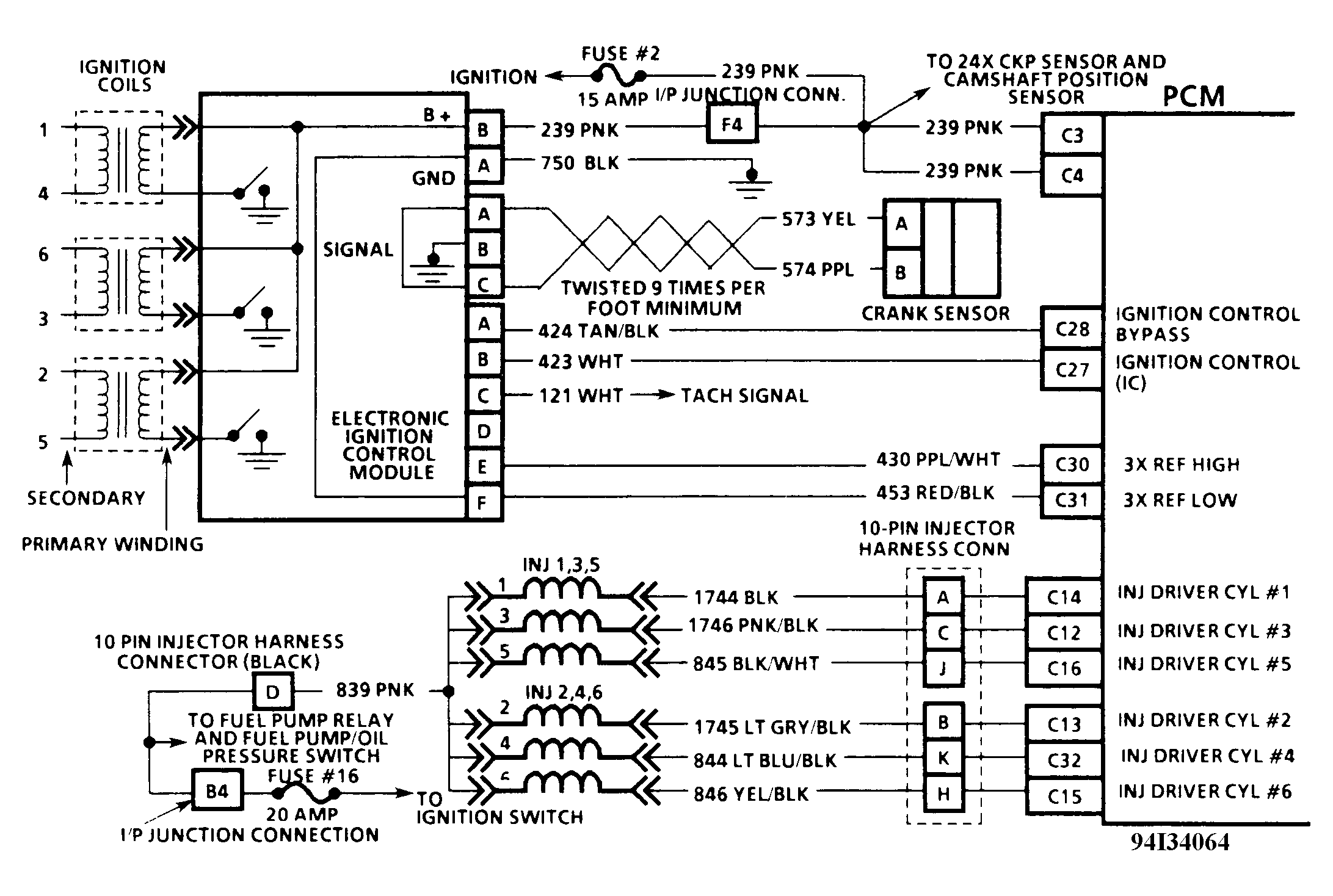

Fig 1: Code 41: Cylinder Select Error Schematic

G94I34064

Fig 2: Code 41: Cylinder Select Error Flow Chart

G94B35072

Fig 3: Code 41 Flow Chart

GB0013316
