Component Locations

COMPONENT LOCATIONS

Component	Location
Fuse Block	Behind Left Hand Side Of Instrument Panel. See Fig 1 .
Left Window Motor	Inside Left Front Door. See Fig 2 .
Left Window Switch	On Left Door Panel. See Fig 2 .
Right Window Motor	Inside Right Front Door. See Fig 2 .
Right Window Switch	On Right Door Panel. See Fig 2 .
C244	Behind Right Side of Instrument Panel, At Right Shroud. See Fig 3 .
C245	Behind Left Side Of Instrument Panel, At Left Shroud. See Fig 3 .
P225	Lower Left "A" Pillar. See Fig 3 .
P226	Lower Right "A" Pillar. See Fig 3 .
P520	At Left "A" Pillar. See Fig 2 .
P620	At Right "A" Pillar. See Fig 4 .
S250	In Crossbody Harness Left Side Of Instrument Panel. See Fig 3 .
S252	In Crossbody Harness, Left Side Of Instrument Panel. See Fig 3 .

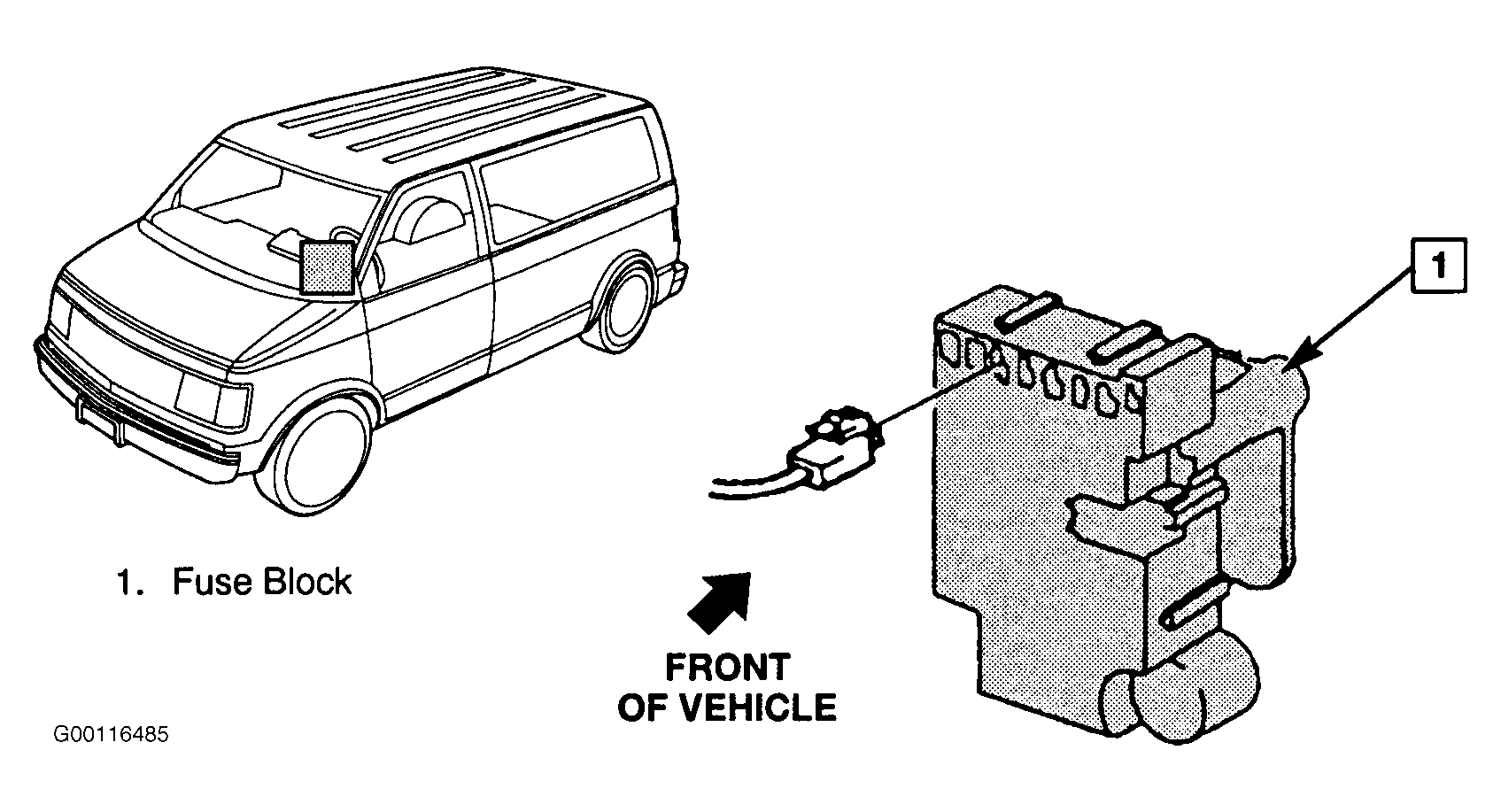

Fig 1: Locating Fuse Block

G00116485

Courtesy of GENERAL MOTORS CORP.

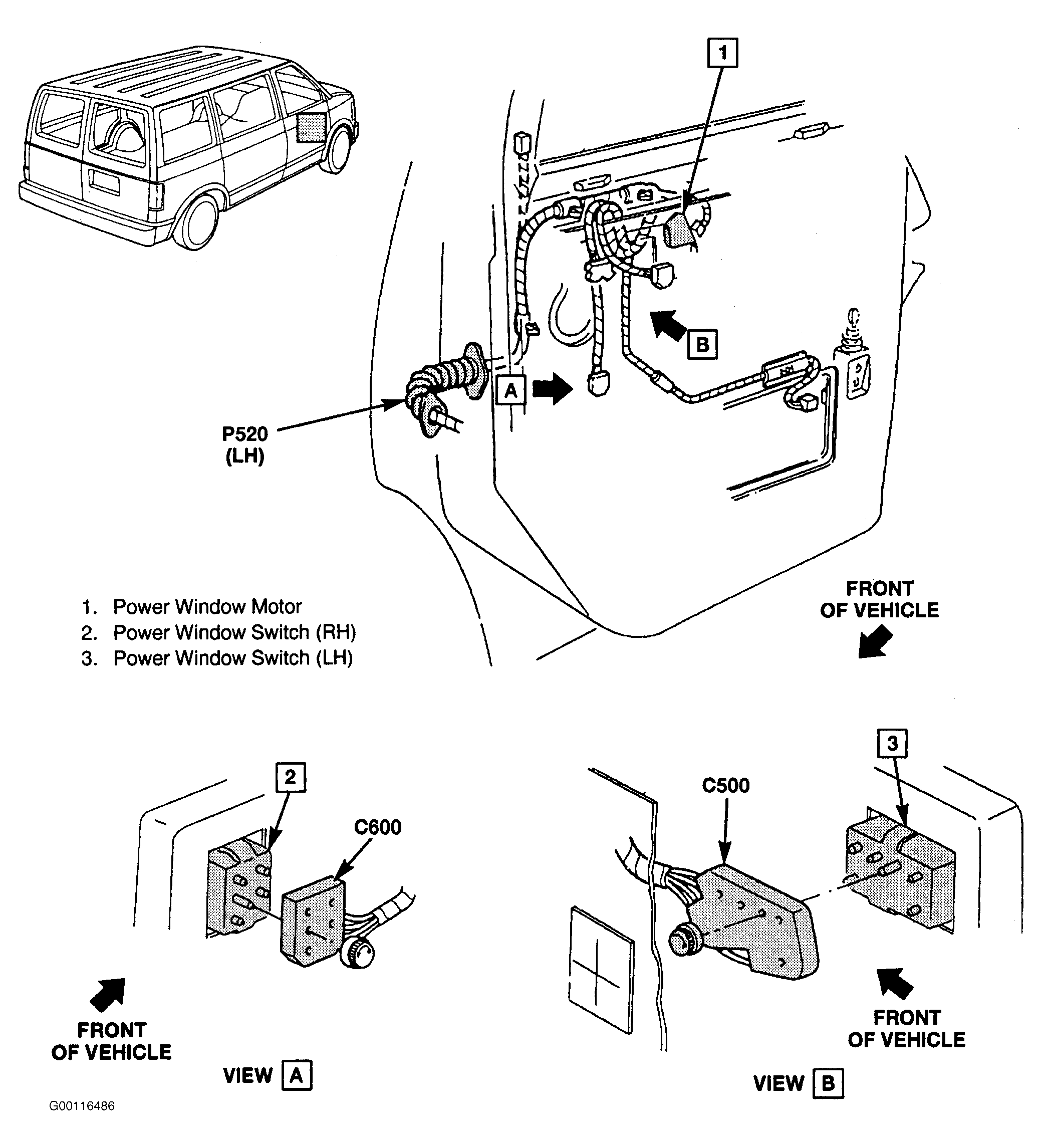

Fig 2: Identifying Power Window Components

G00116486

Courtesy of GENERAL MOTORS CORP.

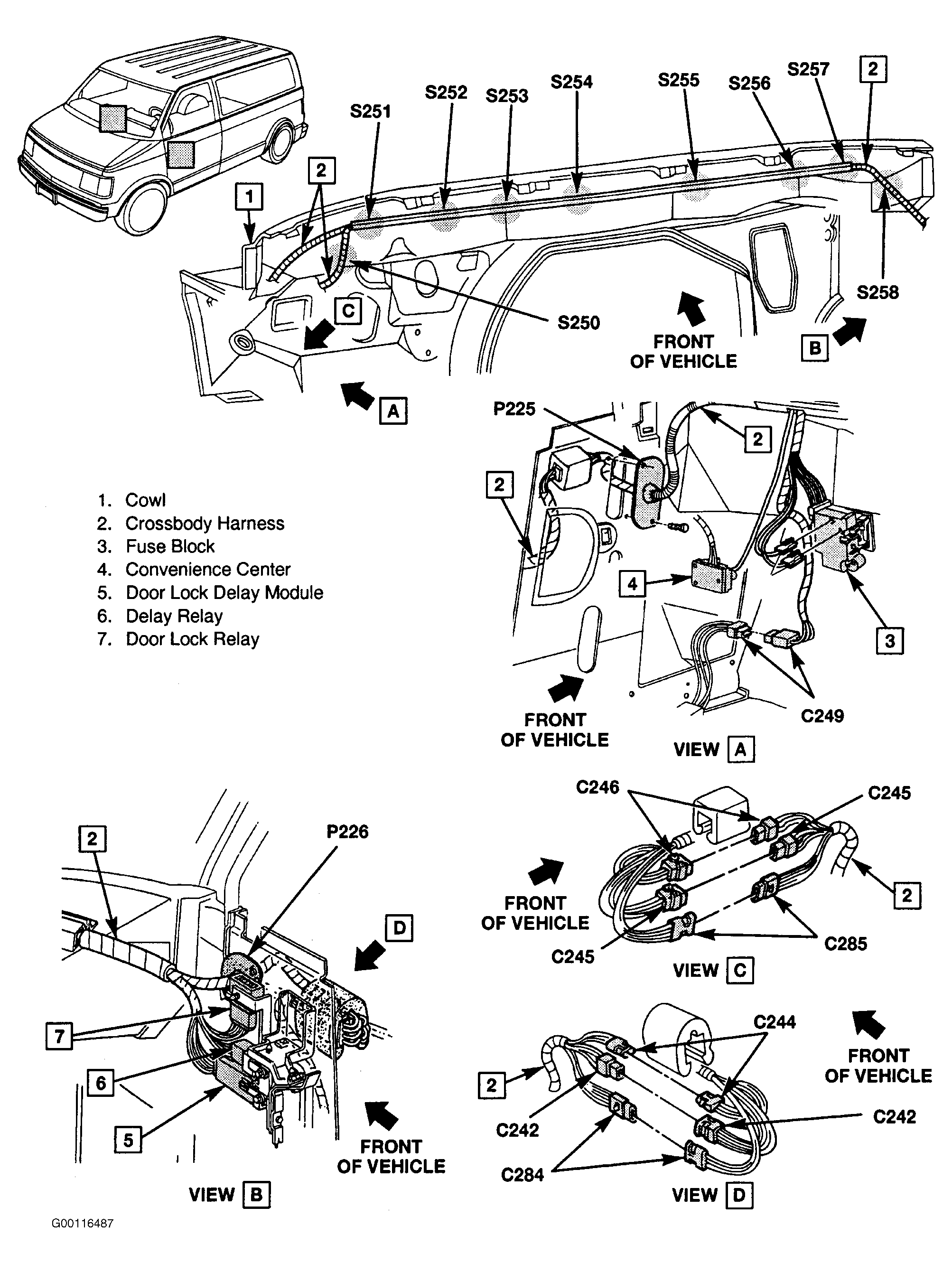

Fig 3: Locating Crossbody Related Components

G00116487

Courtesy of GENERAL MOTORS CORP.

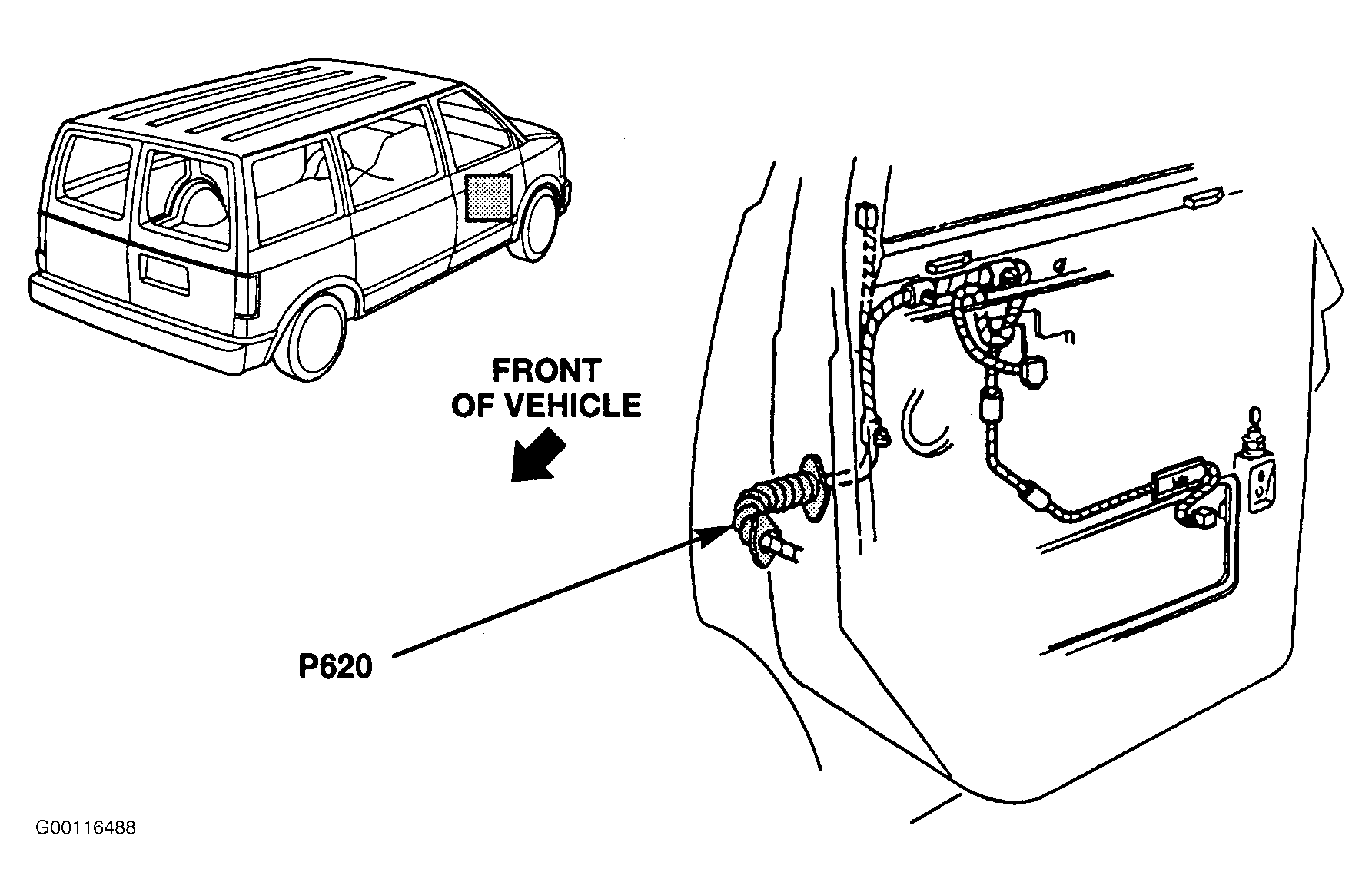

Fig 4: Locating Pass Through Grommet P620/P520

G00116488

Courtesy of GENERAL MOTORS CORP.
