A/C Request Signal Circuit Diagnosis

Turning on A/C system supplies battery voltage to A/C compressor clutch and Engine Control Module. ECM in response increases idle speed. ECM does not control A/C compressor clutch. If A/C compressor clutch is malfunctioning, repair basic A/C system problem. If A/C system is operating properly and idle speed drops too low when A/C compressor turns on or flares too high when A/C compressor turns off, check for an open A/C signal circuit to ECM. If circuit is okay, repair faulty ECM connection or replace faulty ECM.

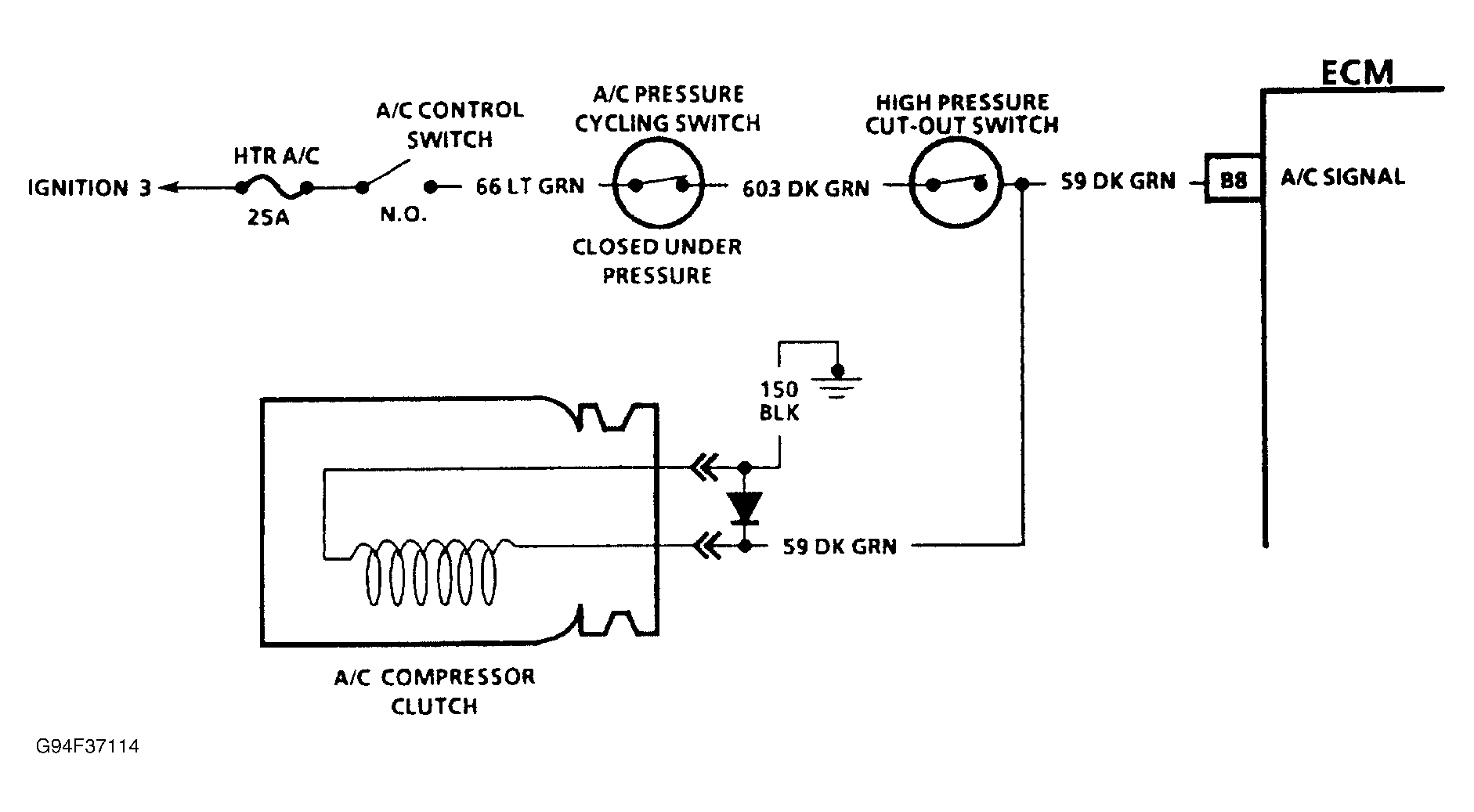

Fig 1: A/C Request Signal Circuit Schematic ("L" & "M" Series)

Courtesy of GENERAL MOTORS CORP.
