A-8, Injector Coil Test Procedure (CPI)

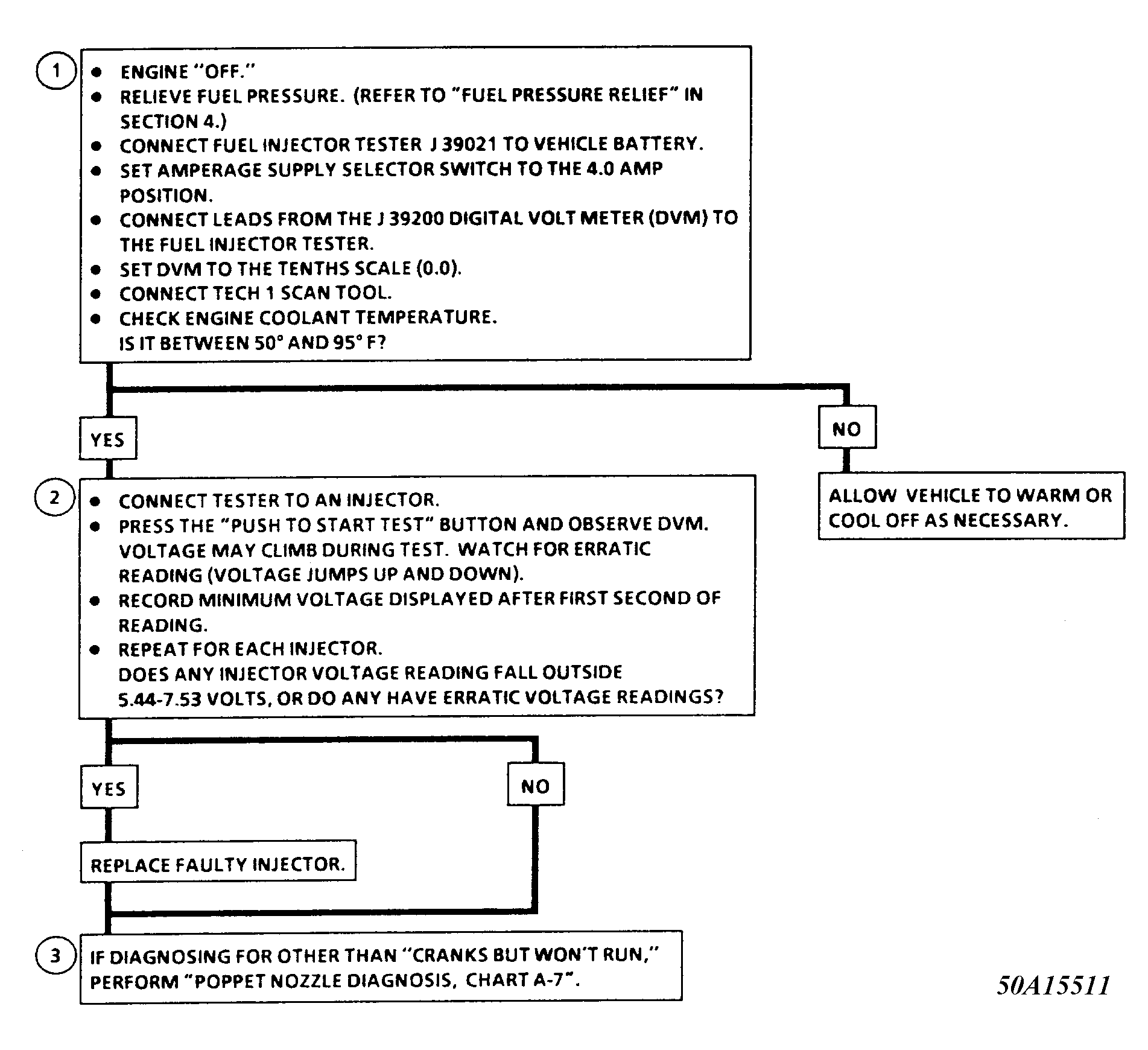

Fig 1: Chart A-8, Injector Coil Test Procedure (CPI)

G50A15511

Courtesy of GENERAL MOTORS CORP.
