Trim Panel: Installation

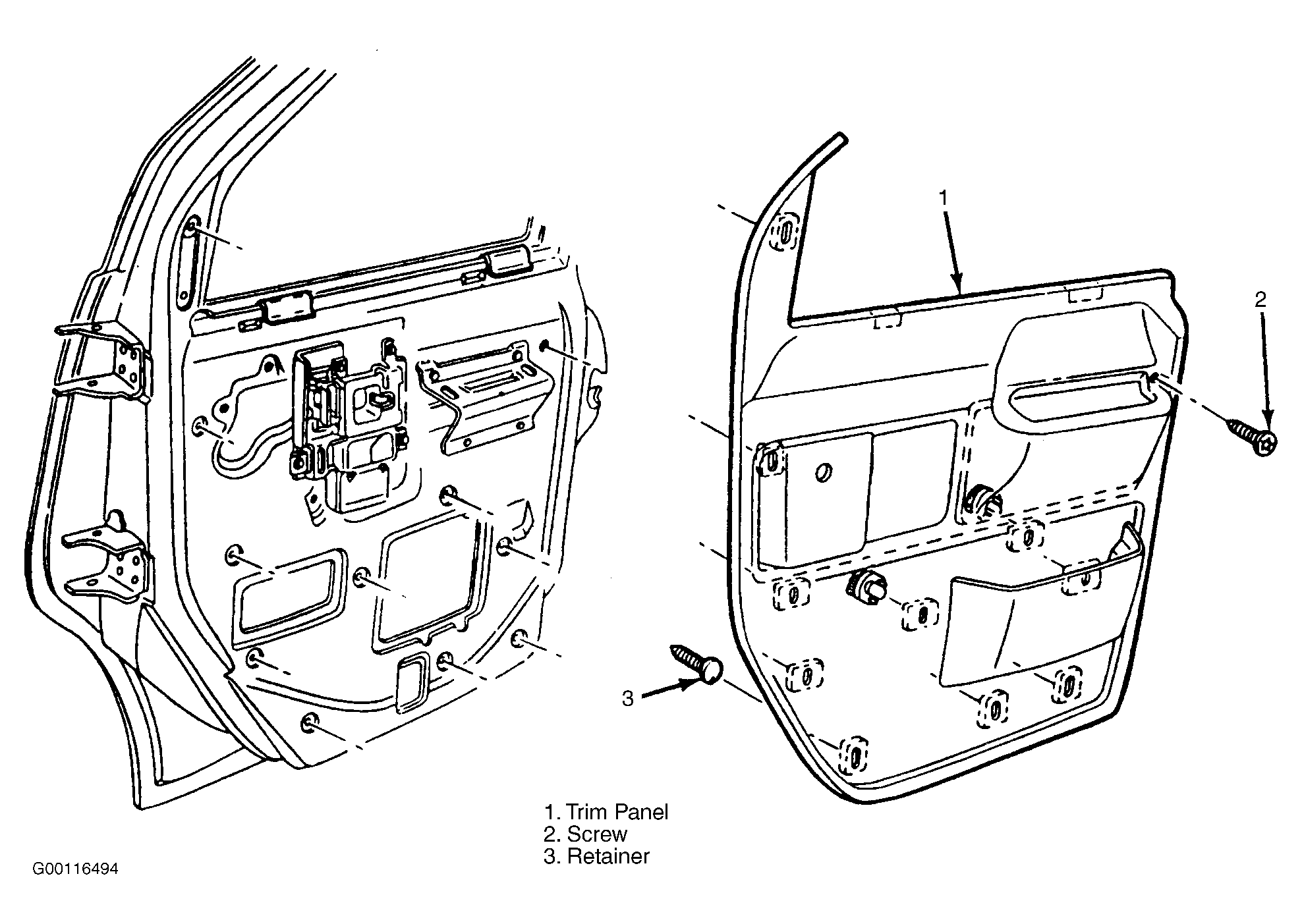

- Fit trim panel retainers to the trim panel.
- Fit trim panel to door. Place the window seal portion of the panel over the door frame.

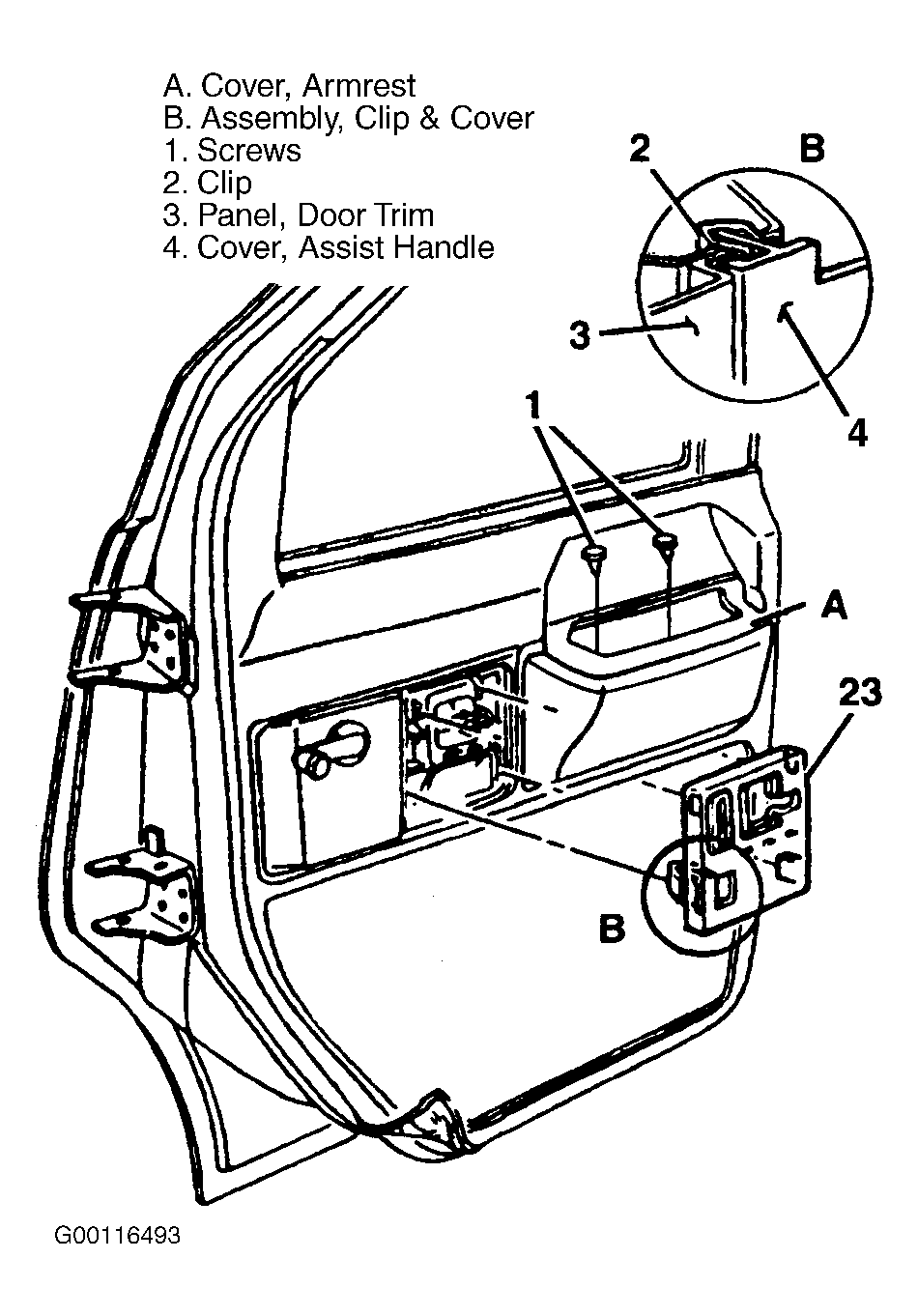

- Install screw behind the armrest pad.
- Fit assist handle cover to the door. Connect all electrical connectors.
- Install window handle.
- Insert the tabs into the slots and push the armrest toward the front of the door and install mounting screws.
