Test B: Central Control Module Will Not Enter Diagnostic Mode

Refer to flowchart for diagnostic procedure. See Fig 1 .

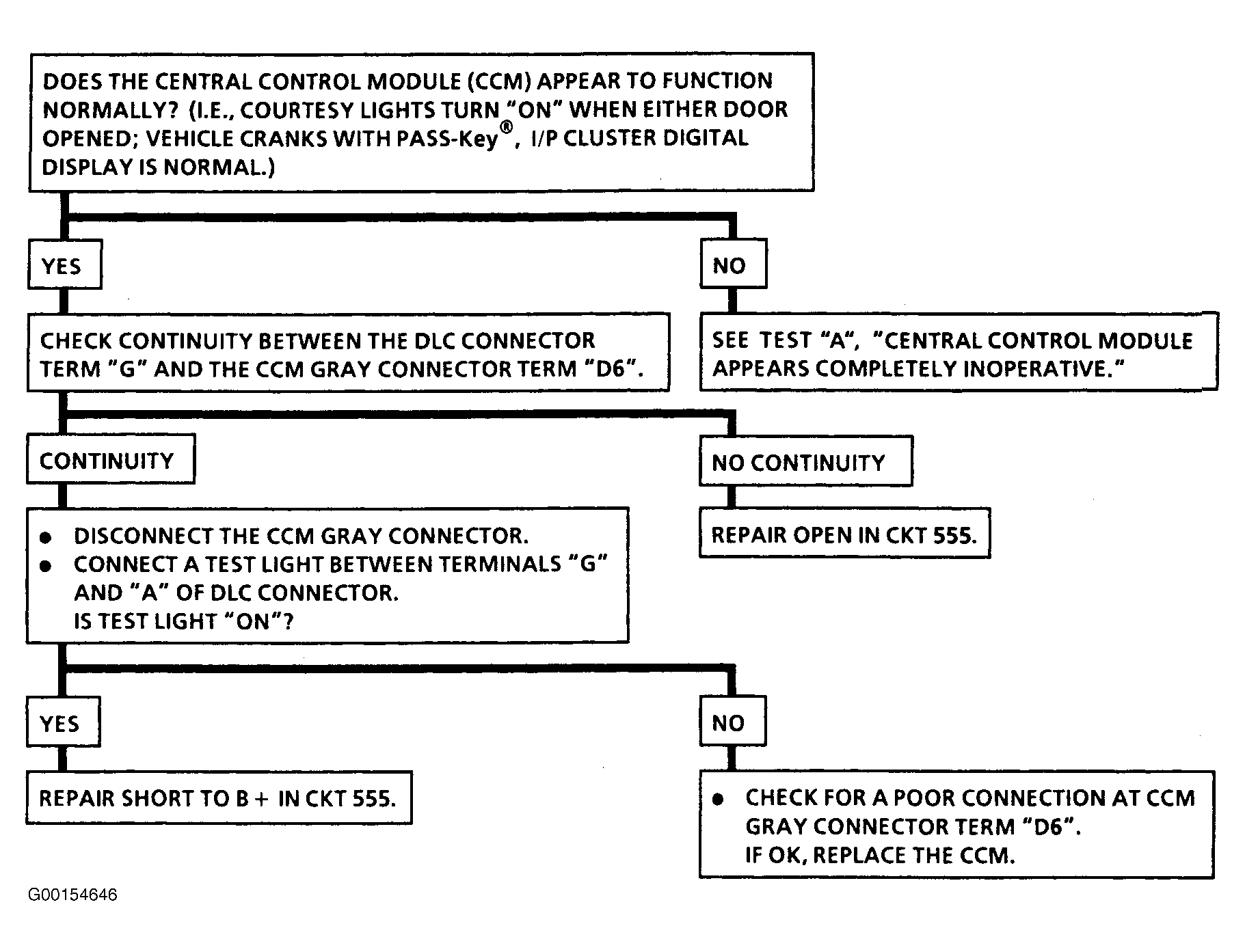

Fig 1: CCM Will Not Enter Diagnostic Mode Diagnostic Flowchart
G00154646Courtesy of GENERAL MOTORS CORP.
