Test Description

  1. Checks if RDO BATT fuse is open.
  2. Checks is voltage is supplied at terminal A8 of PKE receiver.
  3. Checks if ground is present at terminal A1 of PKE receiver.
Fig 1: PKE Receiver Diagnosis; Schematic
G93J40849Courtesy of GENERAL MOTORS CORP.

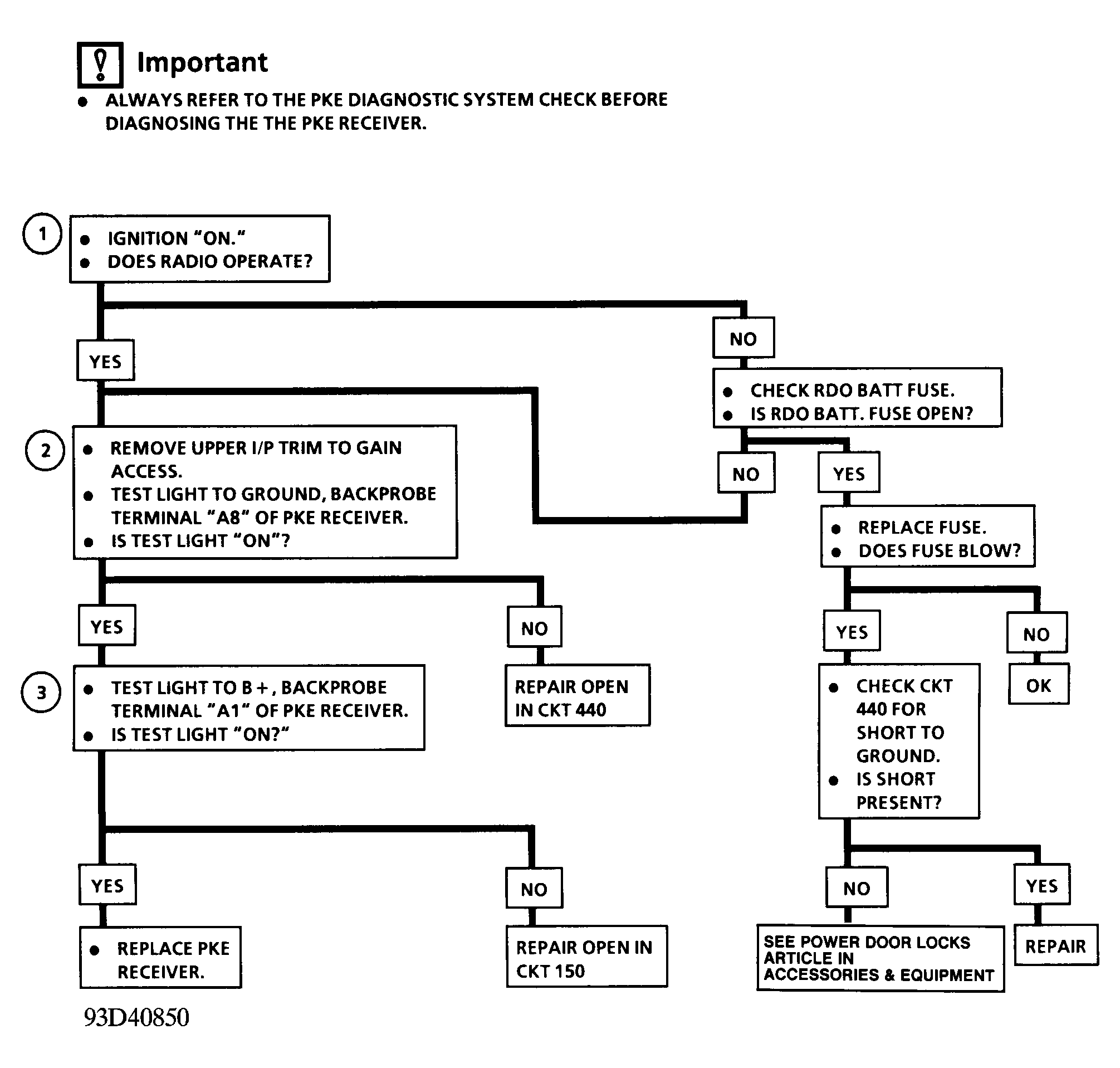

Fig 2: PKE Receiver Diagnosis; Flow Chart
G93D40850Courtesy of GENERAL MOTORS CORP.
