Connector Identification

For DLC connector identification, see Fig 1 .

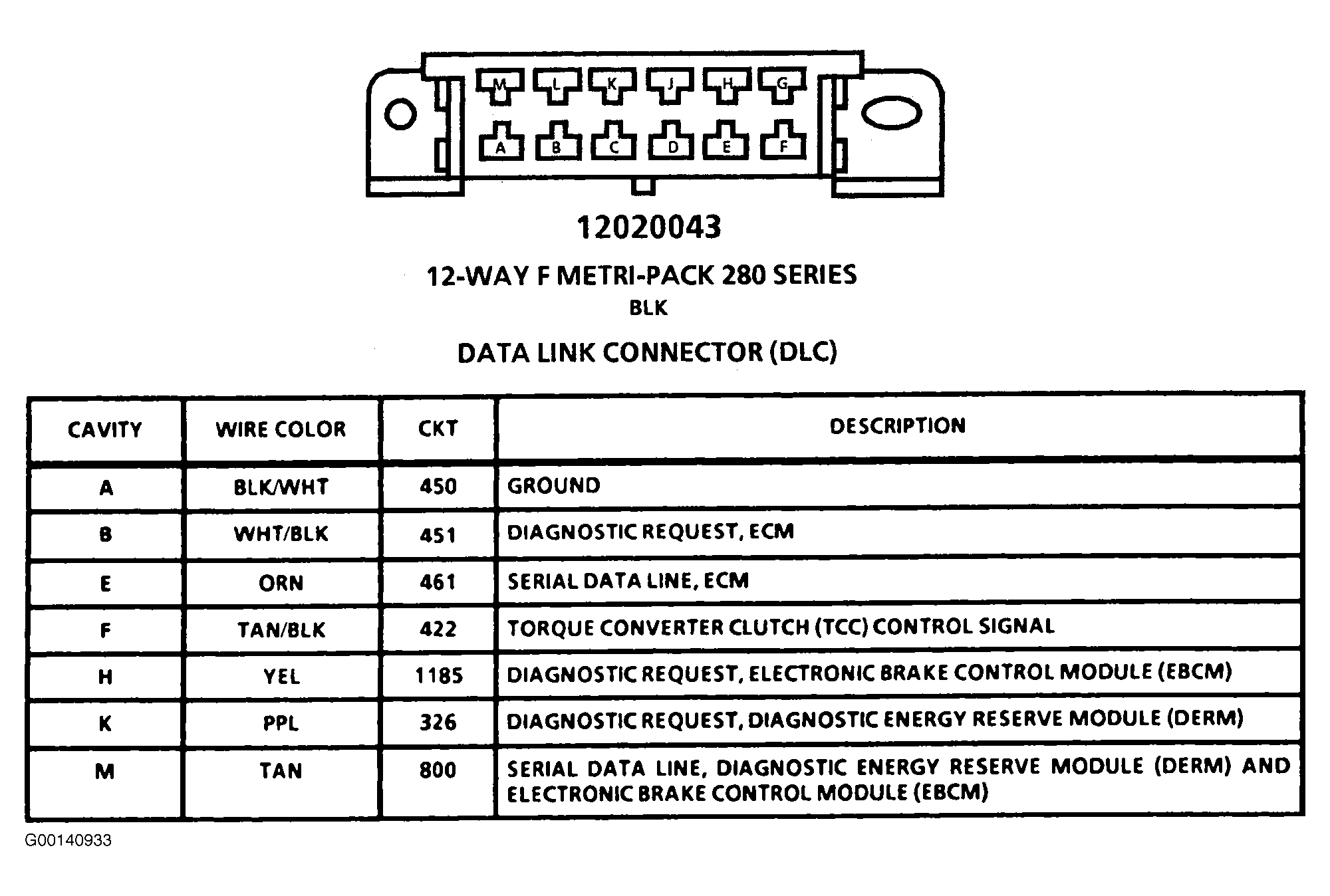

Fig 1: Identifying DLC Terminals
G00140933Courtesy of GENERAL MOTORS CORP.
