Wiring Diagrams

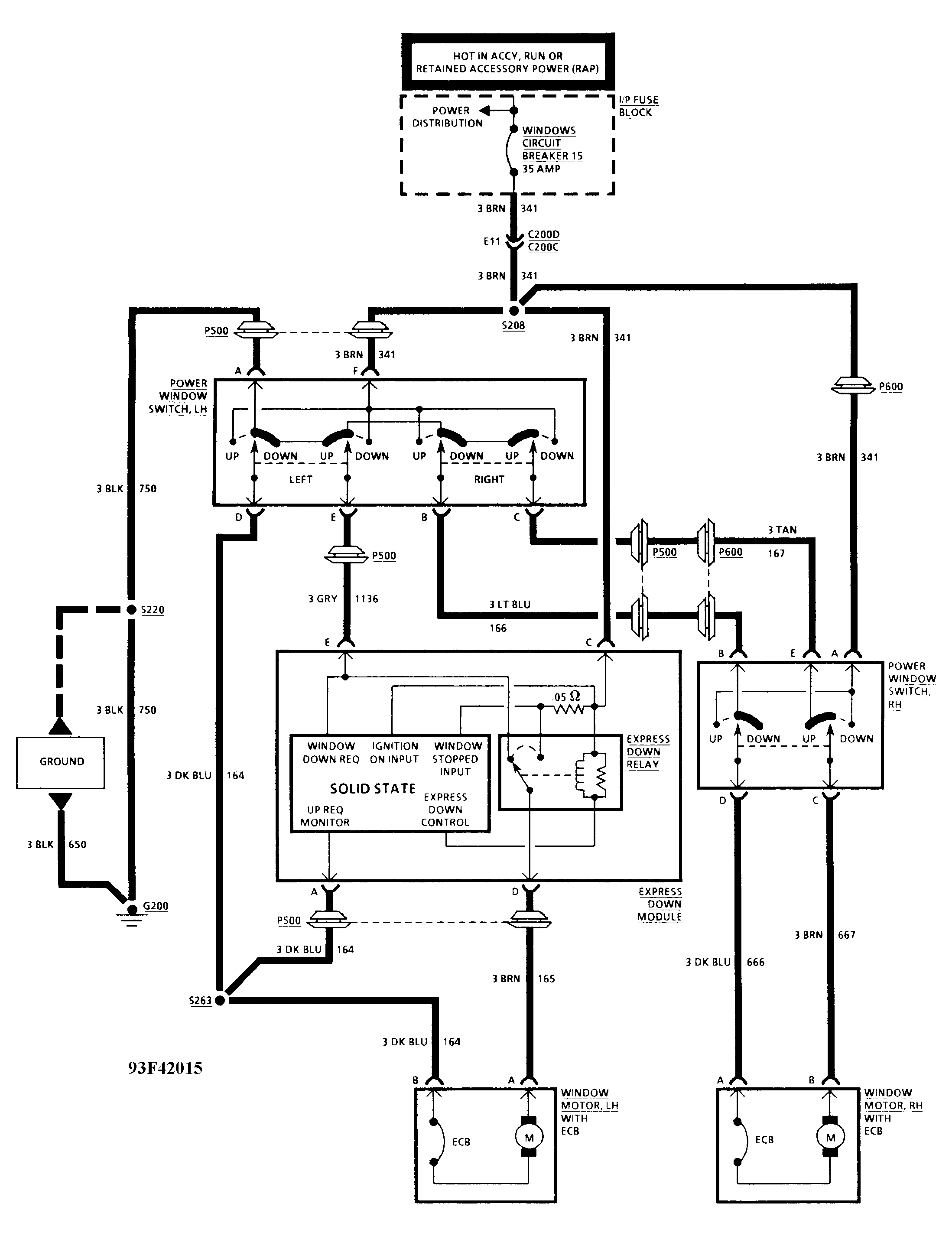

Fig 1: Power Windows Wiring Diagram (Camaro & Firebird)

G93F42015

Courtesy of GENERAL MOTORS CORP.
