Test E: Neither Mirror Is Operational

If neither mirror is operational, see Fig 1 .

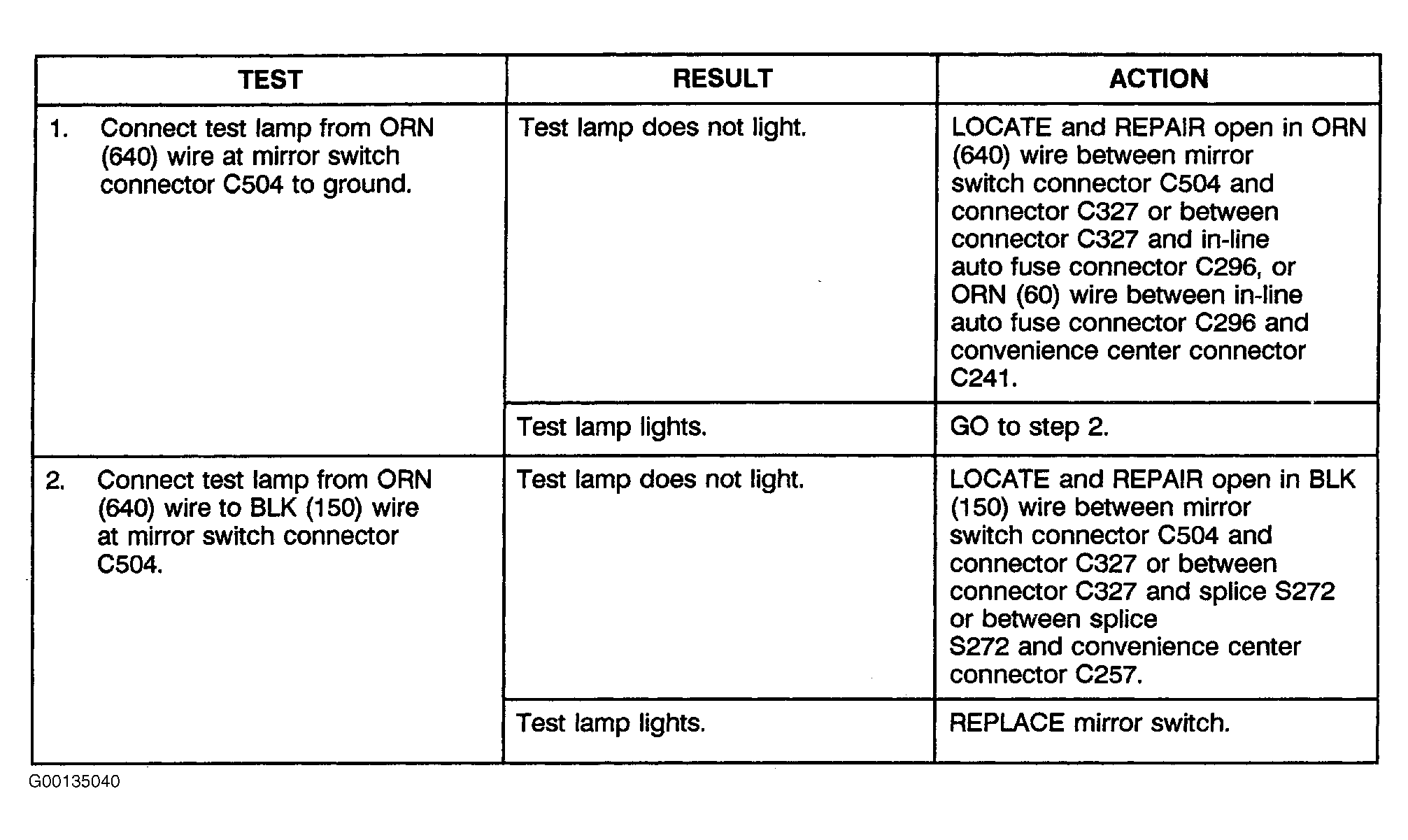

Fig 1: Test E: Neither Mirror Is Operational

G00135040

Courtesy of GENERAL MOTORS CORP.
