Window Regulator Handle: Installation

  1. Install bearing plate.
  2. Place the window in the raised position.

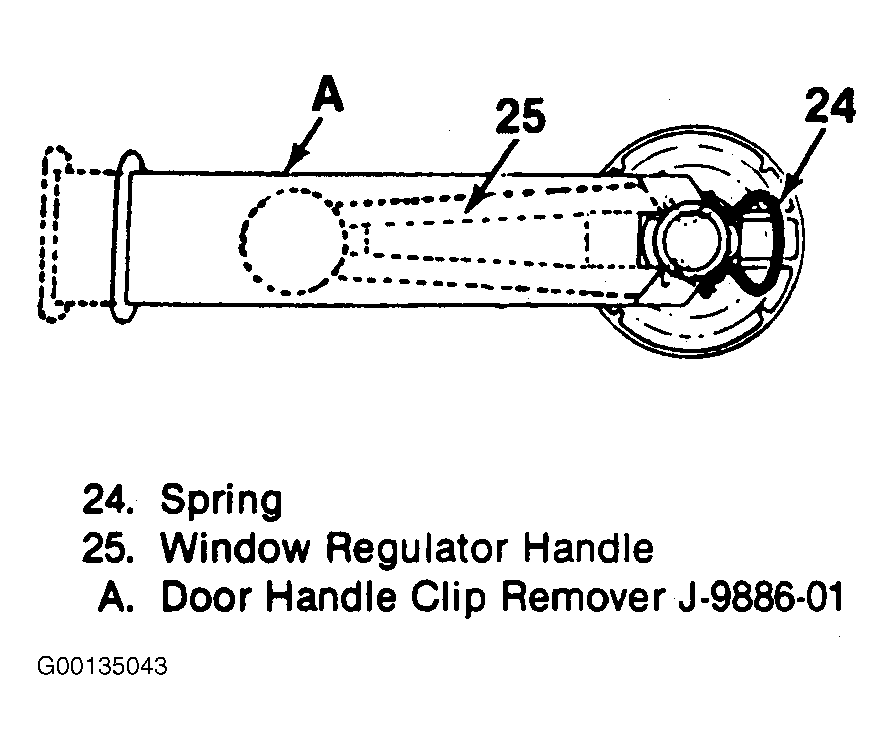

  3. Put the spring clip (24) onto the handle (25). See Figure .
  4. Insert the handle onto the door so that the handle is pointing toward the front of the door.
  5. Push on the handle (25) until the spring clip (24) engages the window regulator shaft.
