Power Window/Power Lock Switch: Removal

1. Disconnect ground cable from the battery.
2. Remove door trim panel. See DOOR TRIM PANEL  .
3. Disconnect harness connector. See Fig 1 .
4. Remove switch.

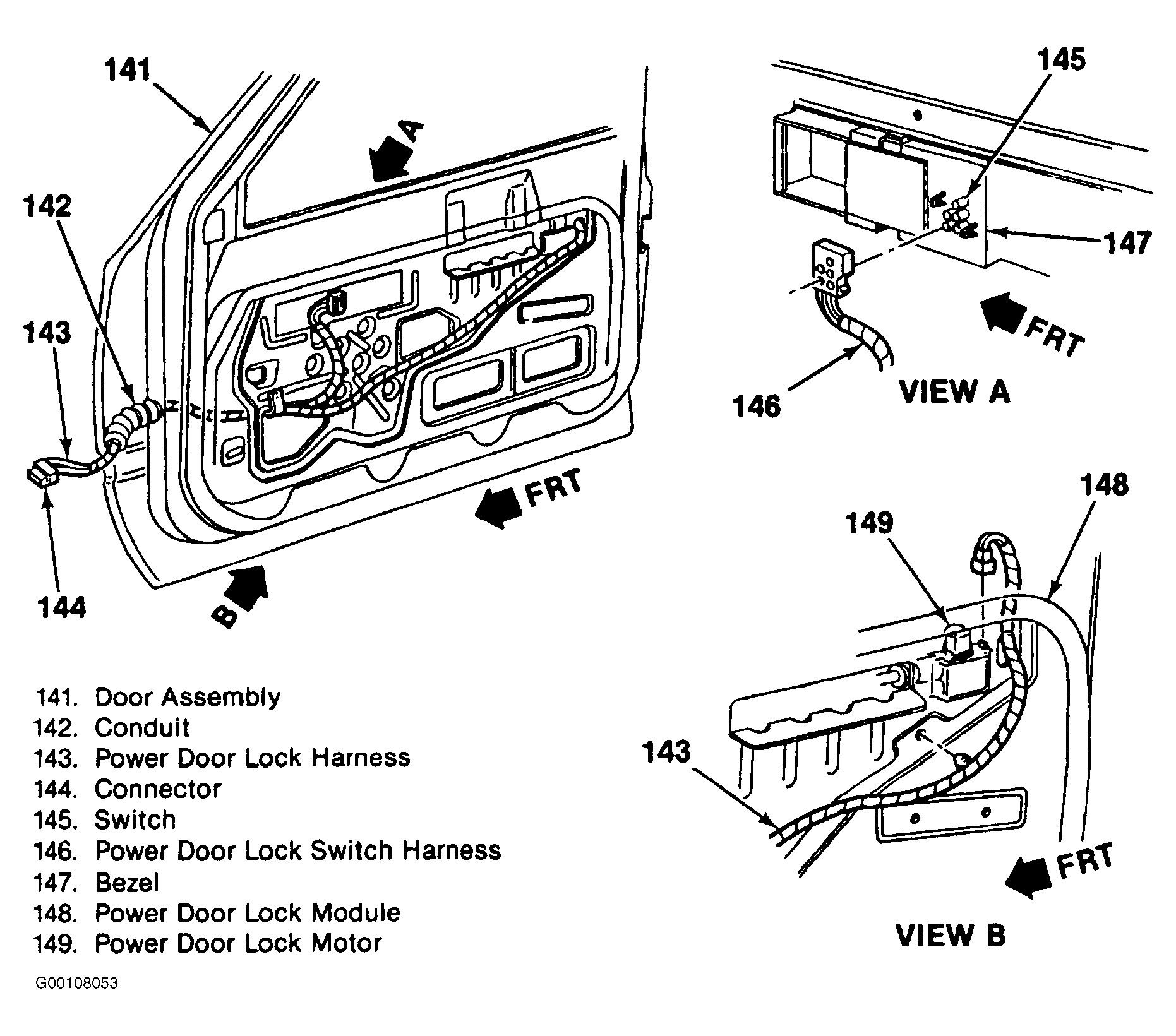

Fig 1: Identifying Power Door Lock Switch

Courtesy of GENERAL MOTORS CORP.
