Test D: Right Power Window Does Not Operate From Either Switch
Test D: Right Power Window Does Not Operate From Either Switch
For testing procedure, see
Fig 1
.

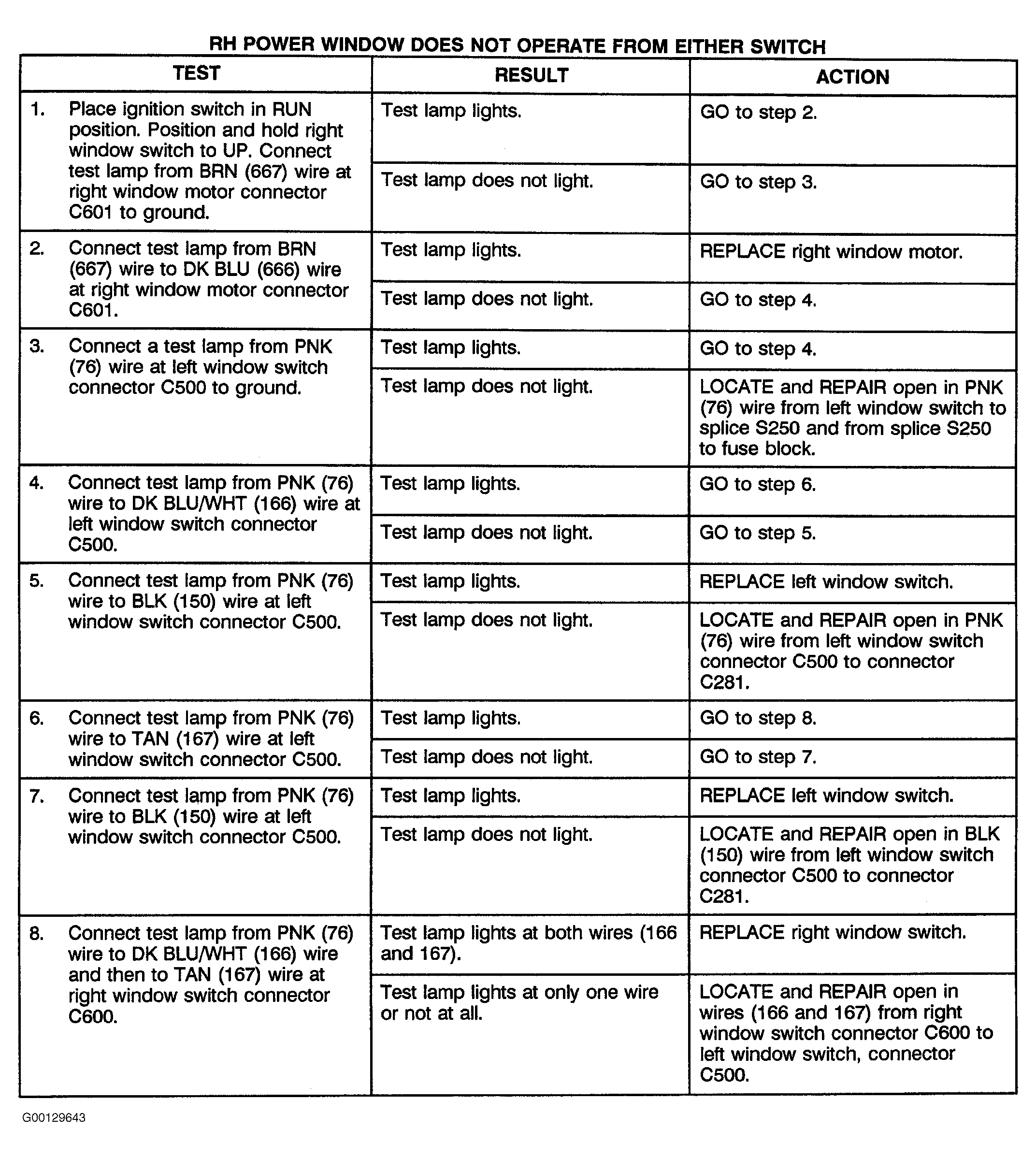

Fig 1: Test D: Right Window Does Not Operate From Either Switch
Courtesy of GENERAL MOTORS CORP.
