Wiring Diagrams

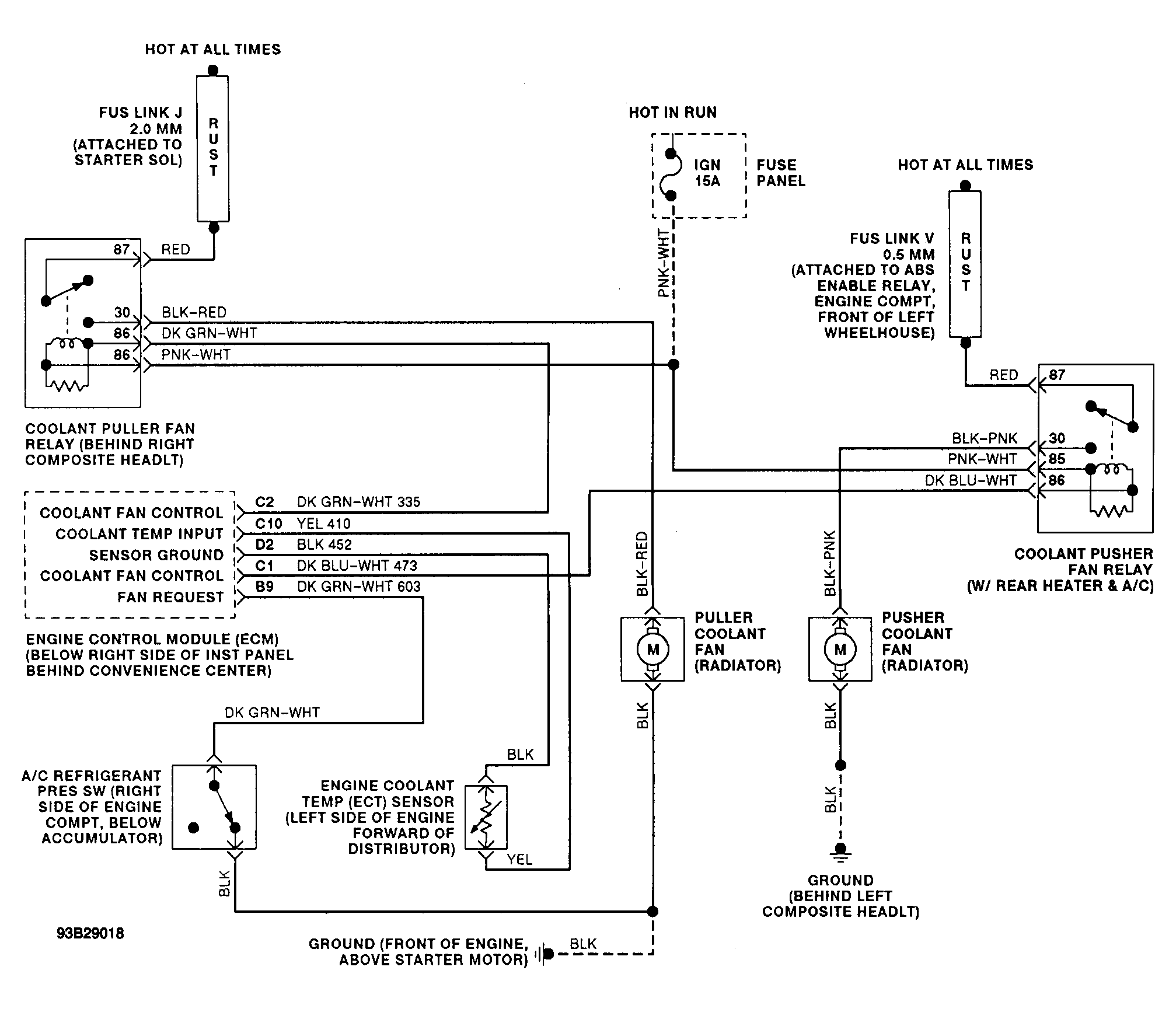

Fig 1: Cooling Fan Circuit Wiring Diagram (3.1L - VIN D)

G93B29018

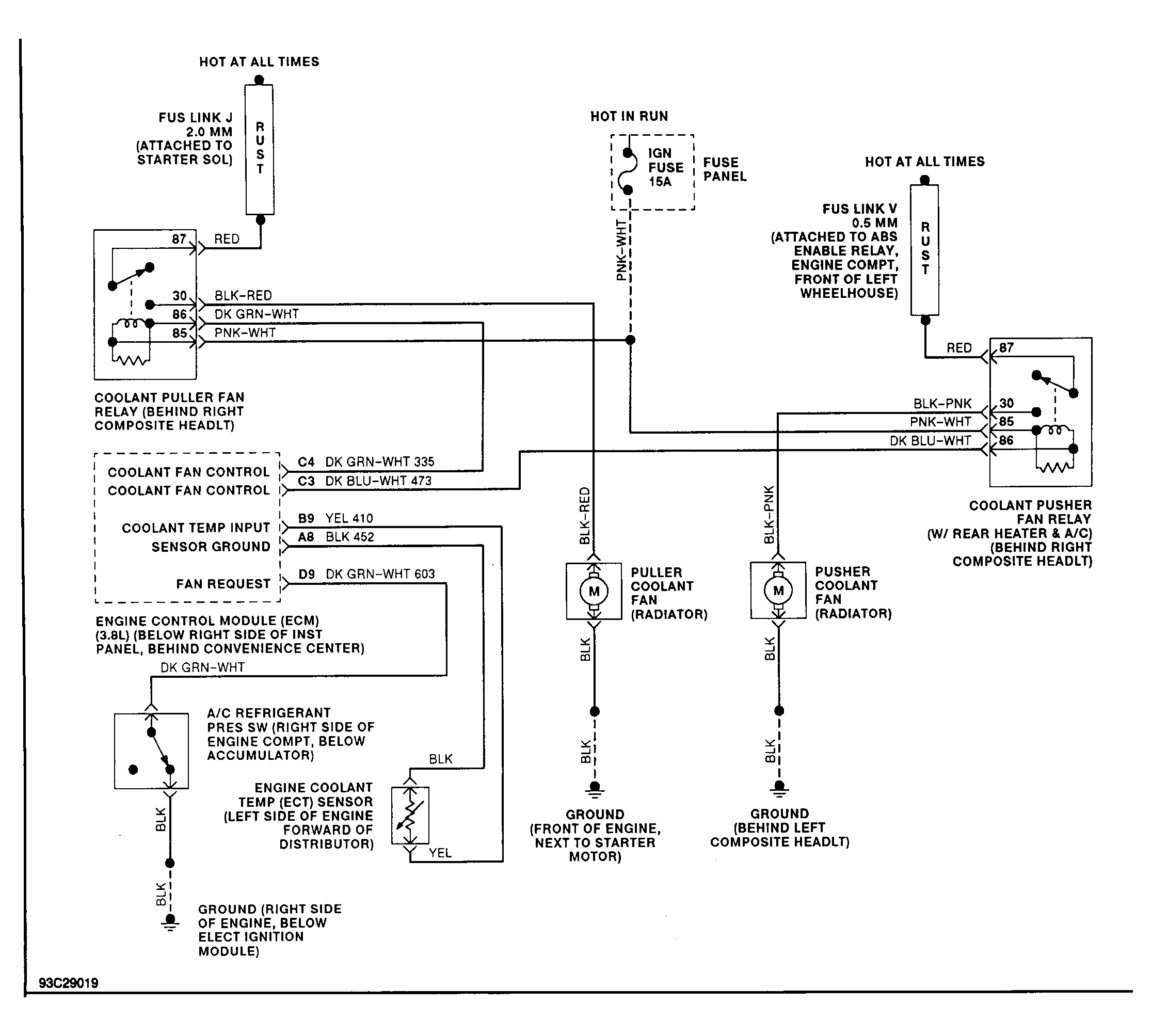

Fig 2: Cooling Fan Circuit Wiring Diagram (3.8L - VIN L)

G93C29019
