Door Trim Panel: Removal

  1. Remove power window and lock controls.
  2. Remove door handle bezel. See Fig 1 .
  3. Remove fasteners to armrest and lower panel.
  4. Feed power controls through panel.
  5. Remove trim panel retainers from the door. Pry the trim panel from the door frame at the window seal. See Fig 2 .

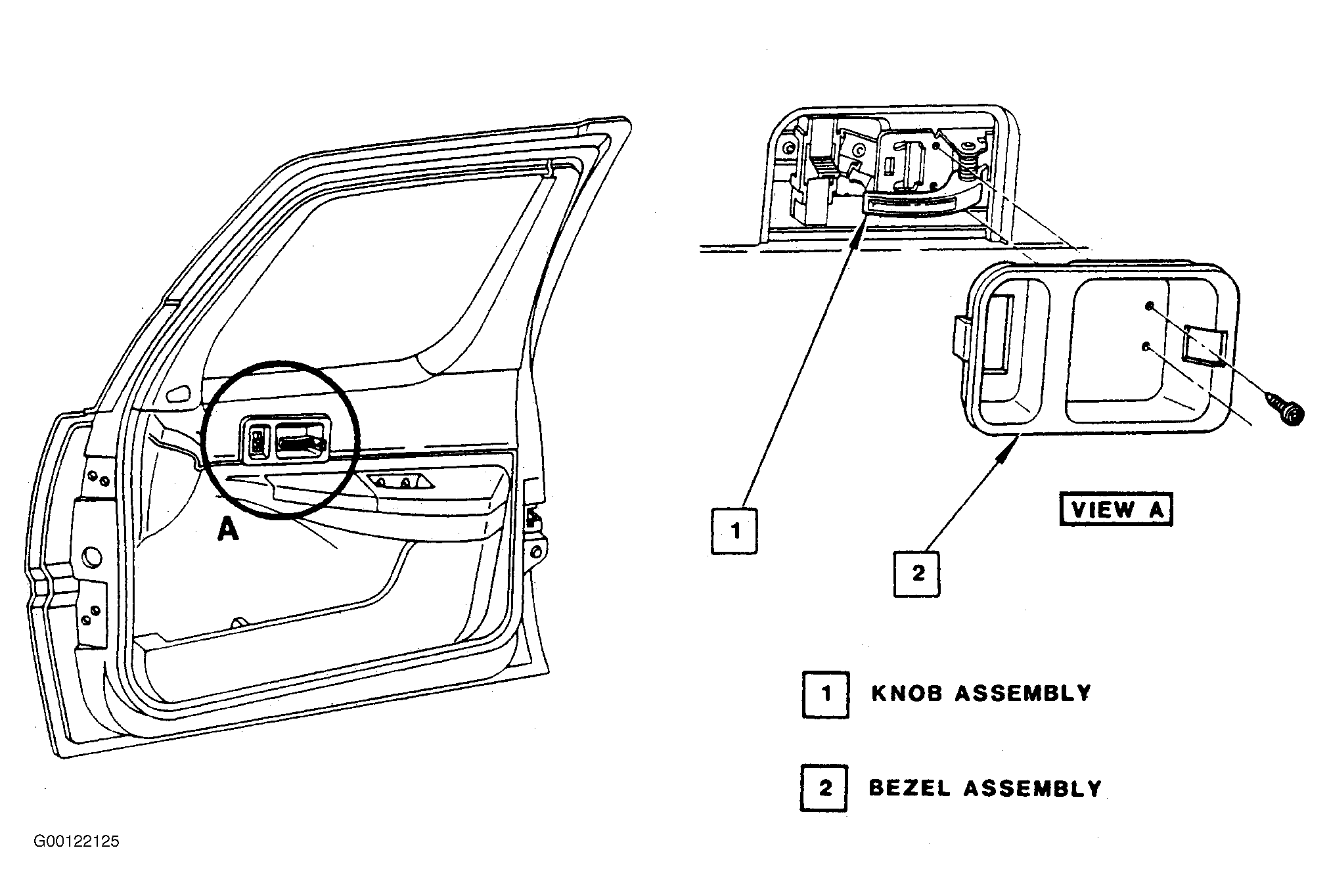

Fig 1: RemovingDoor Handle Bezel
G00122125Courtesy of GENERAL MOTORS CORP.

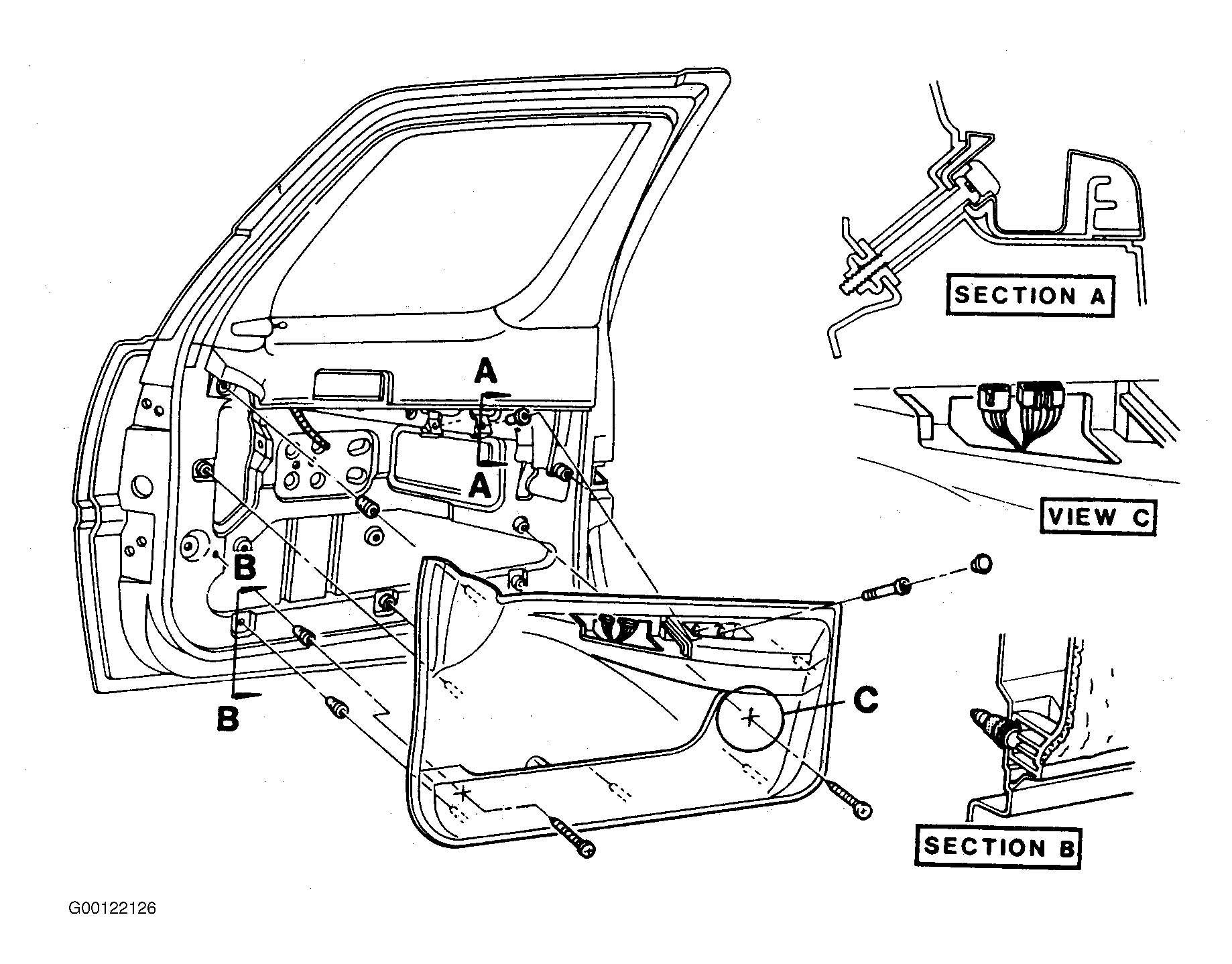

Fig 2: Removing Front Door Trim Panel
G00122126Courtesy of GENERAL MOTORS CORP.
