Test 1A- Testing System Function

WARNING: This page is about a different car, the 1995 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

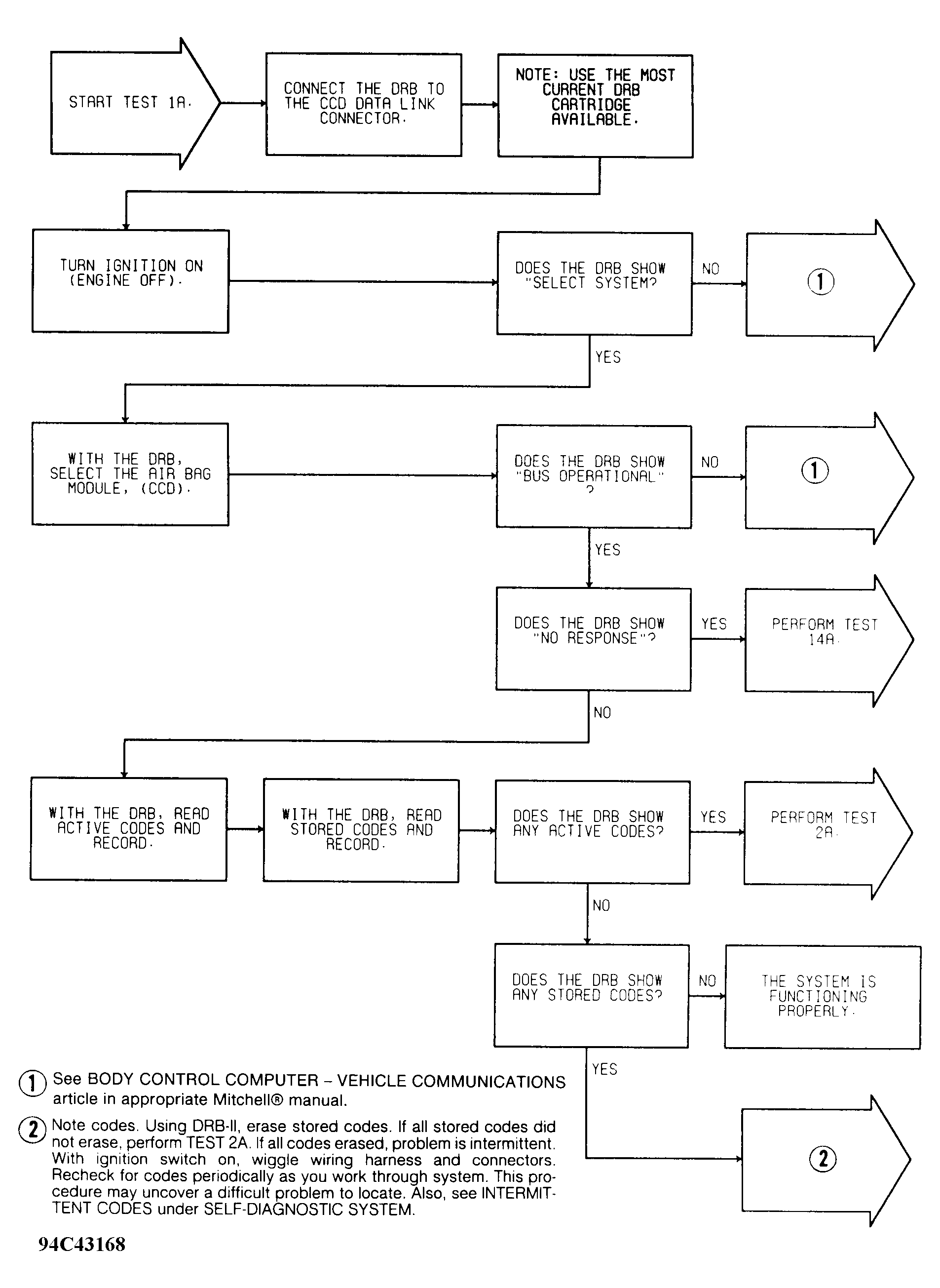

Fig 1: Test 1A - Testing System Function
G94C43168Courtesy of CHRYSLER CORP.
