PCV Diagram

This engine does not use the "typical" PCV valve but rather, a PCV orifice.

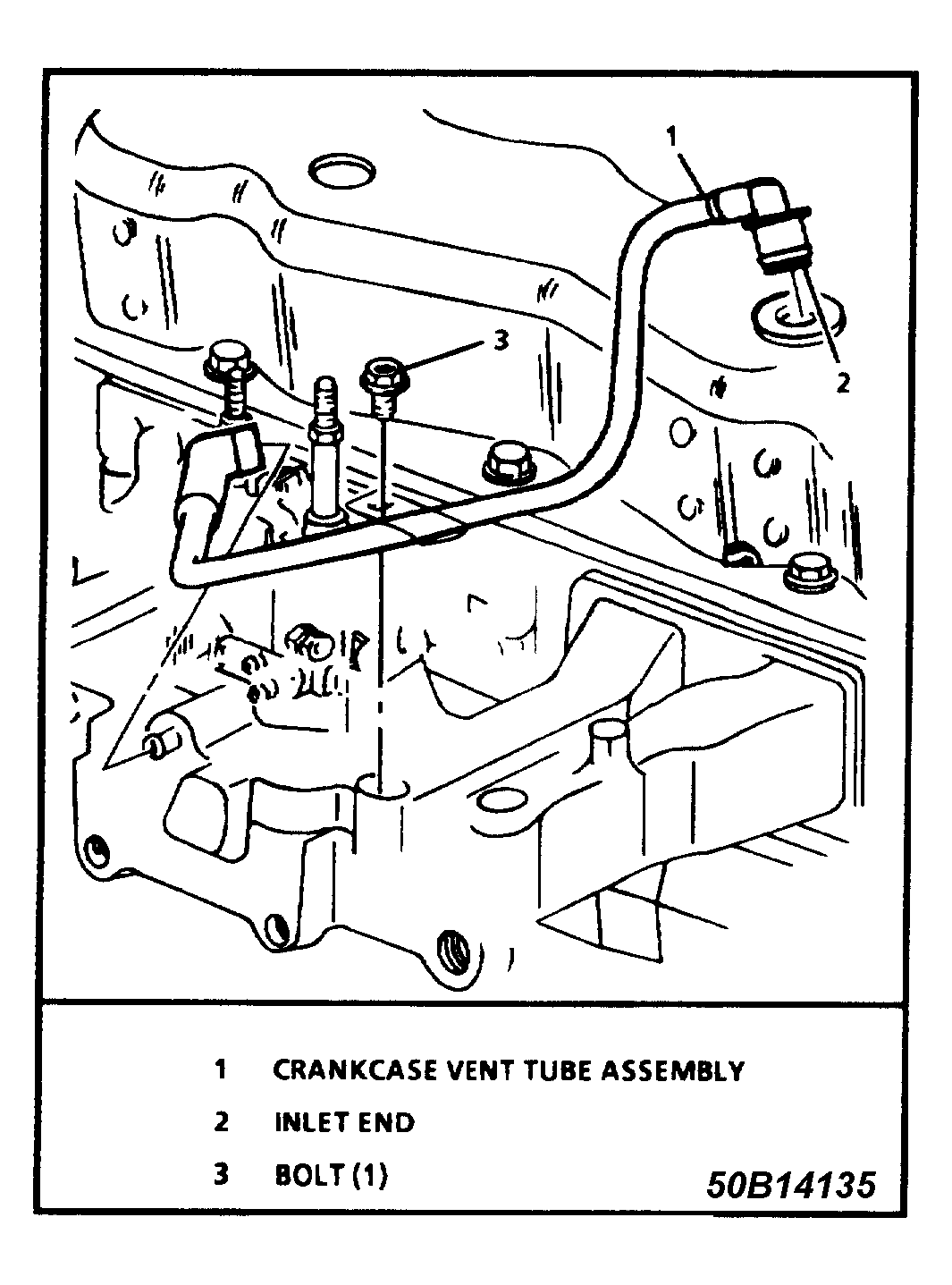

Fig 1: PCV Valve Location (2.5L VIN R)

G50B14135

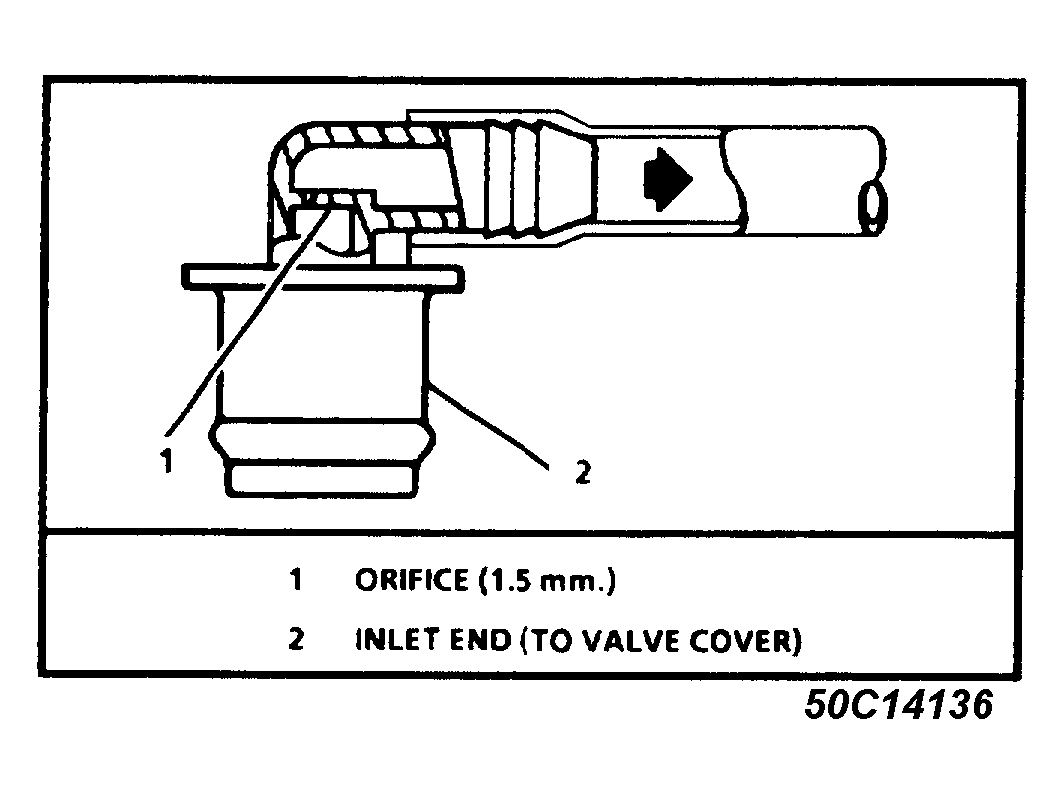

Fig 2: PCV Valve Orifice X-Ray View (2.5L VIN R)

G50C14136
