Test E: Right Power Window Only Operates From Driver's Side Window Switch

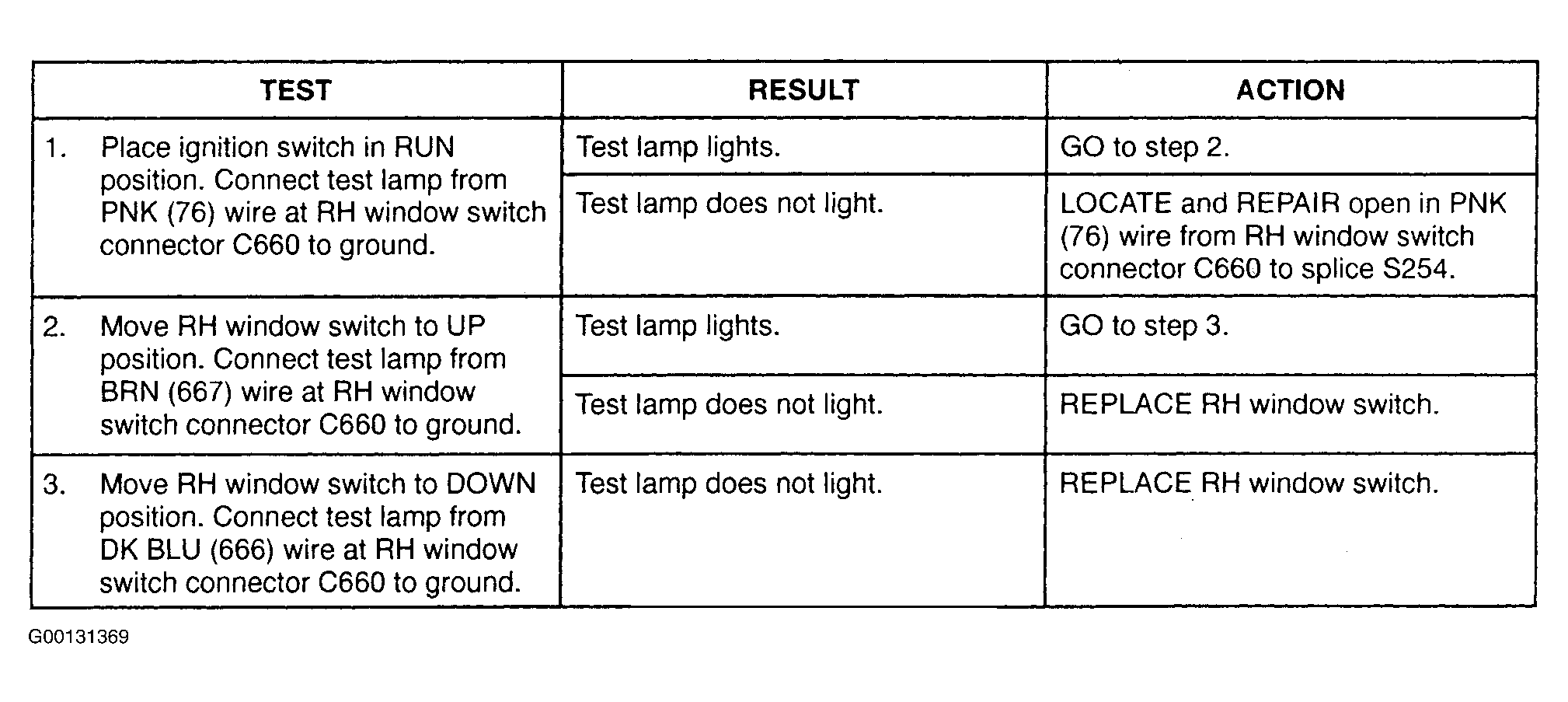

Fig 1: Right Power Window Only Operates From Driver's Side Window Switch

G00131369

Courtesy of GENERAL MOTORS CORP.
