Test D: Right Power Window Does Not Operate From Either Switch

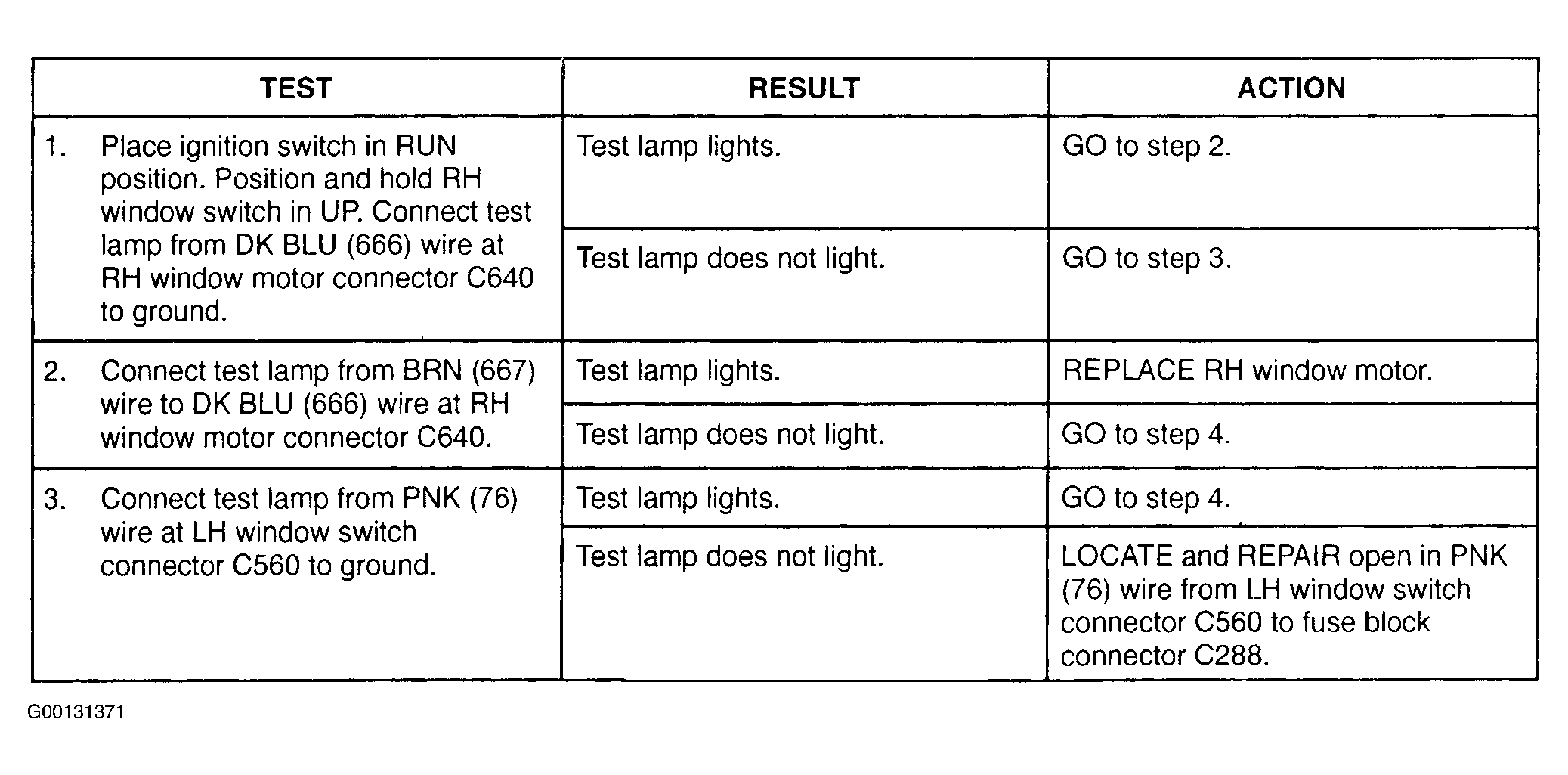

Fig 1: Right Power Window Does Not Operate From Either Switch (1 Of 2)
G00131371Courtesy of GENERAL MOTORS CORP.

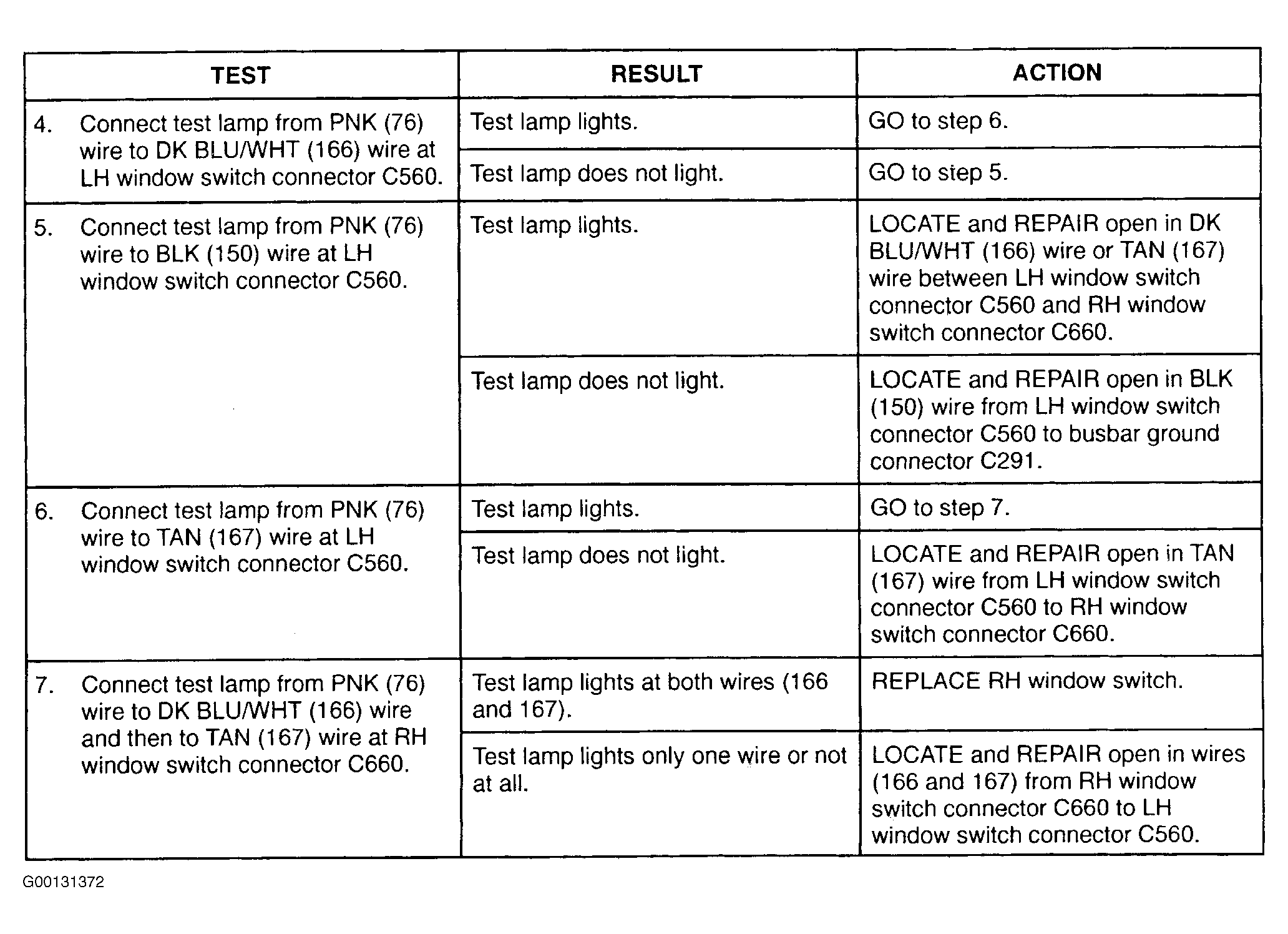

Fig 2: Right Power Window Does Not Operate From Either Switch (2 Of 2)
G00131372Courtesy of GENERAL MOTORS CORP.
