Trim Panel: Installation

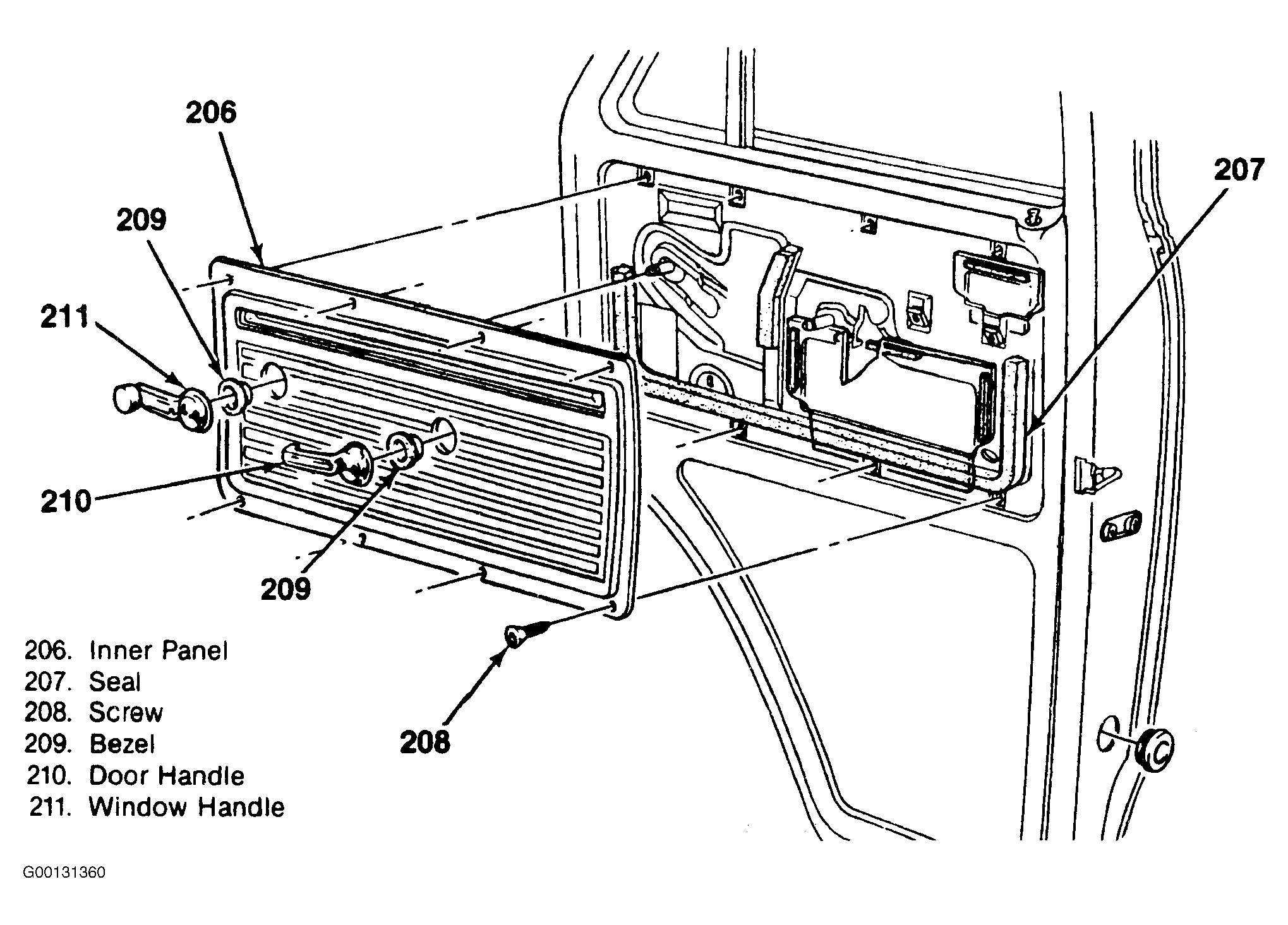

  1. Install door trim inner panel (206). See Figure .
  2. Install door trim inner panel screws (208). See Figure .

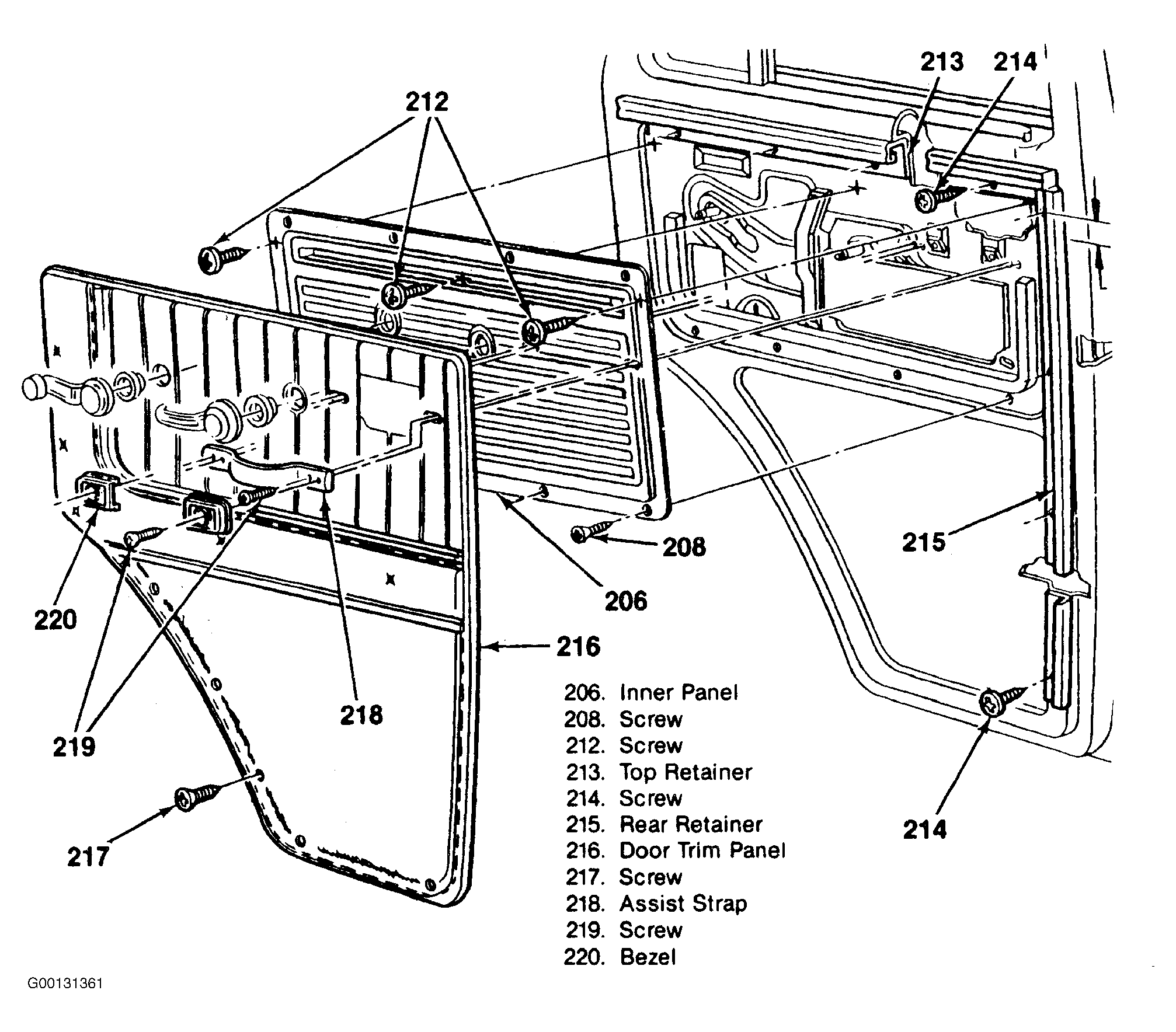

  3. Install door trim outer panel (216), if equipped. Push the retainers into the door. See Figure .
  4. Install door trim outer panel screws (217), if equipped. See Figure .

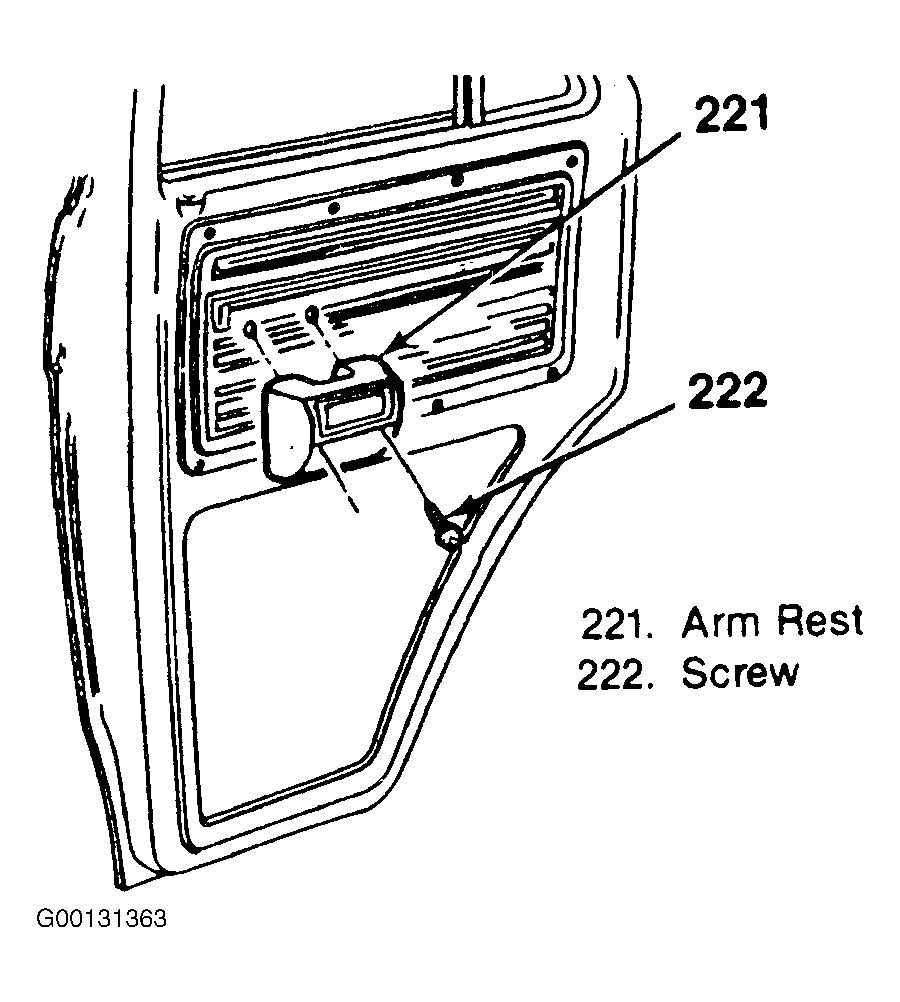

  5. Install arm rest, if equipped. See Figure .
  6. Install assist strap (218), if equipped. See Figure .
  7. Install Inside door control assembly handle bezel (209). See Figure .
  8. Install door handle bezel (209). See Figure .
  9. Install the clips to the door handle and the door lock control assembly handle.
  10. Install door handle. Push the handle onto the shaft.
