EXPERTEC TSB (92C11)

WARNING: This page is about the Corvette ZR-1, which is a different variant/trim than selected.
Publication date: 1992-06-15
Reference number: 92C11

EXPERTEC TSB

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 92C11, Date of Issue:  06/15/92

CAMPAIGN: OPTI-SPARK DIST. (REPLACE WITH NEW P/N)

Chevrolet 92C11

06/15/1992

BULLETIN ILLUSTRATION LIST

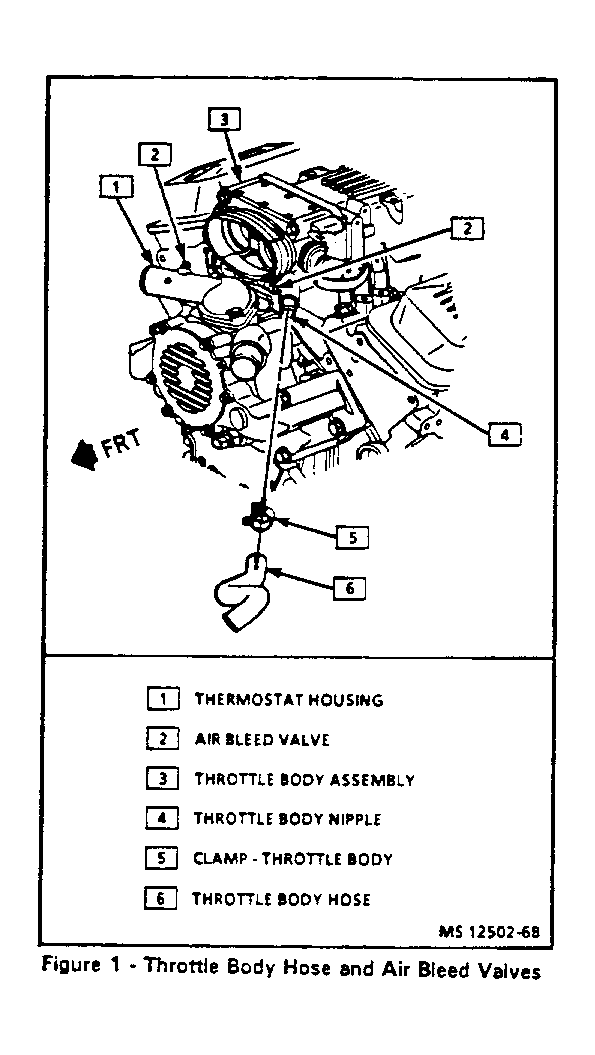

Fig 1: Graphic
GE00W009318

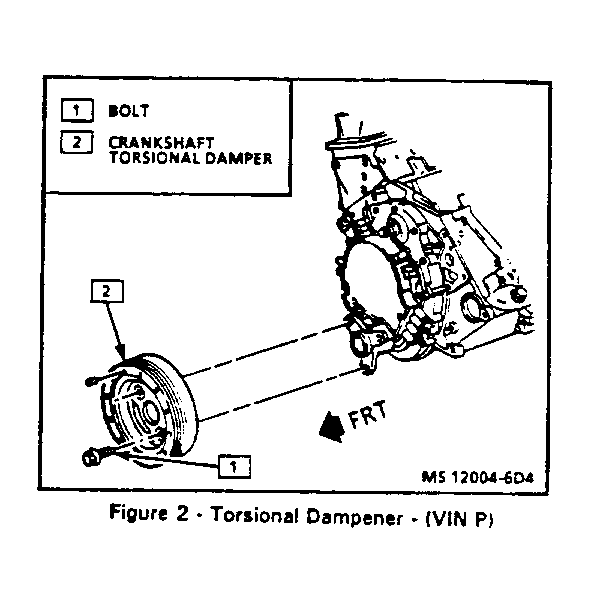

Fig 2: Graphic
GE01W009318

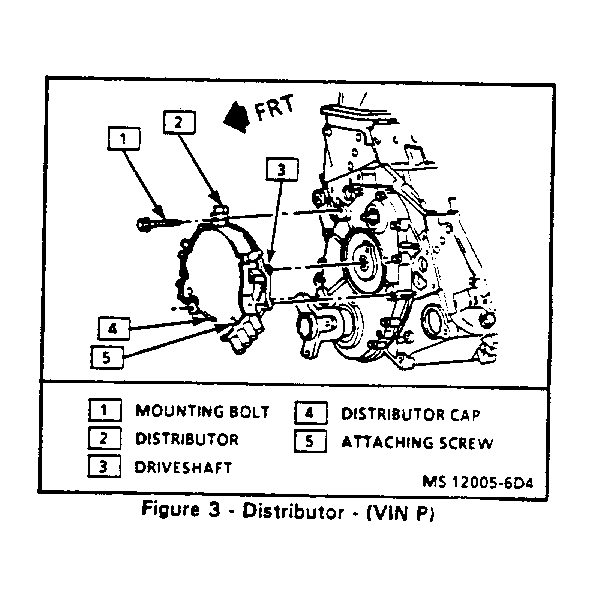

Fig 3: Graphic
GE02W009318

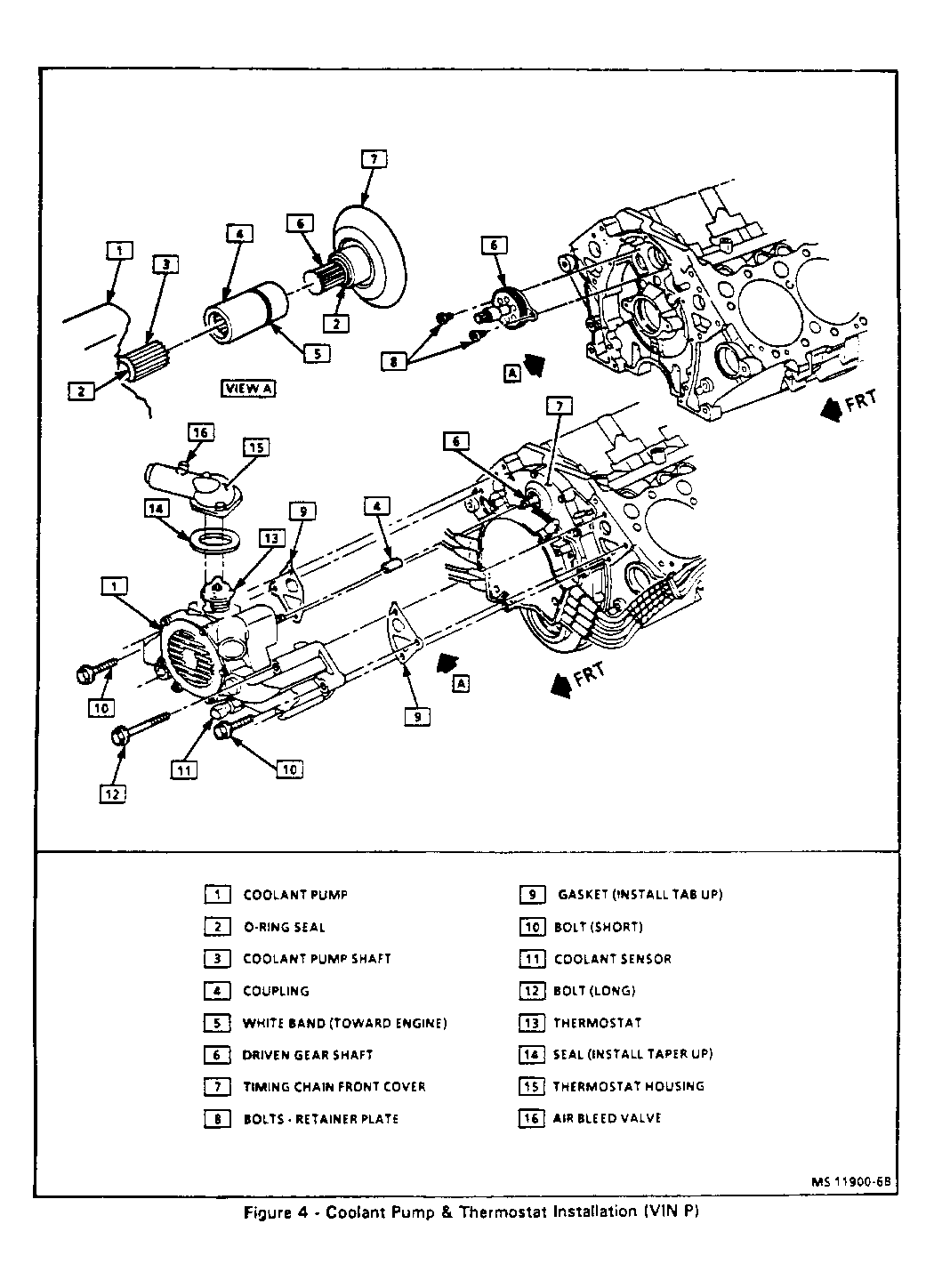

Fig 4: Graphic
GE03W009318

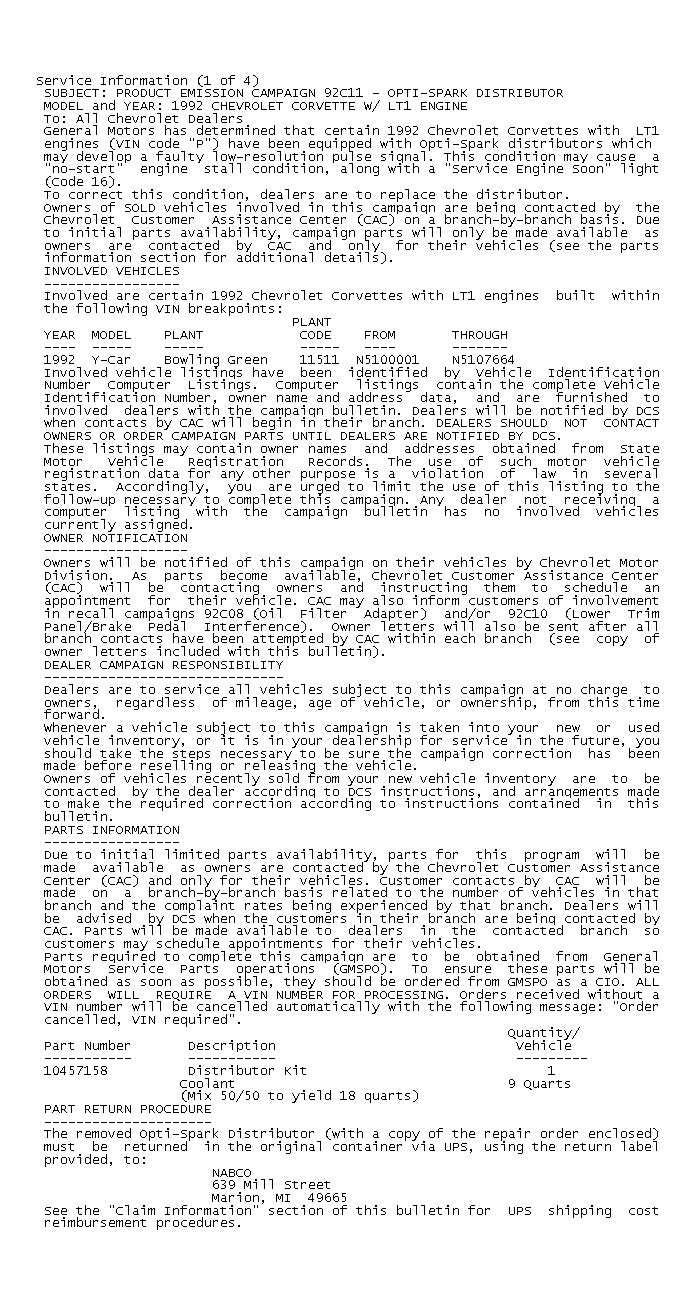

Fig 5: Service Information (1 of 4)
GB0025704

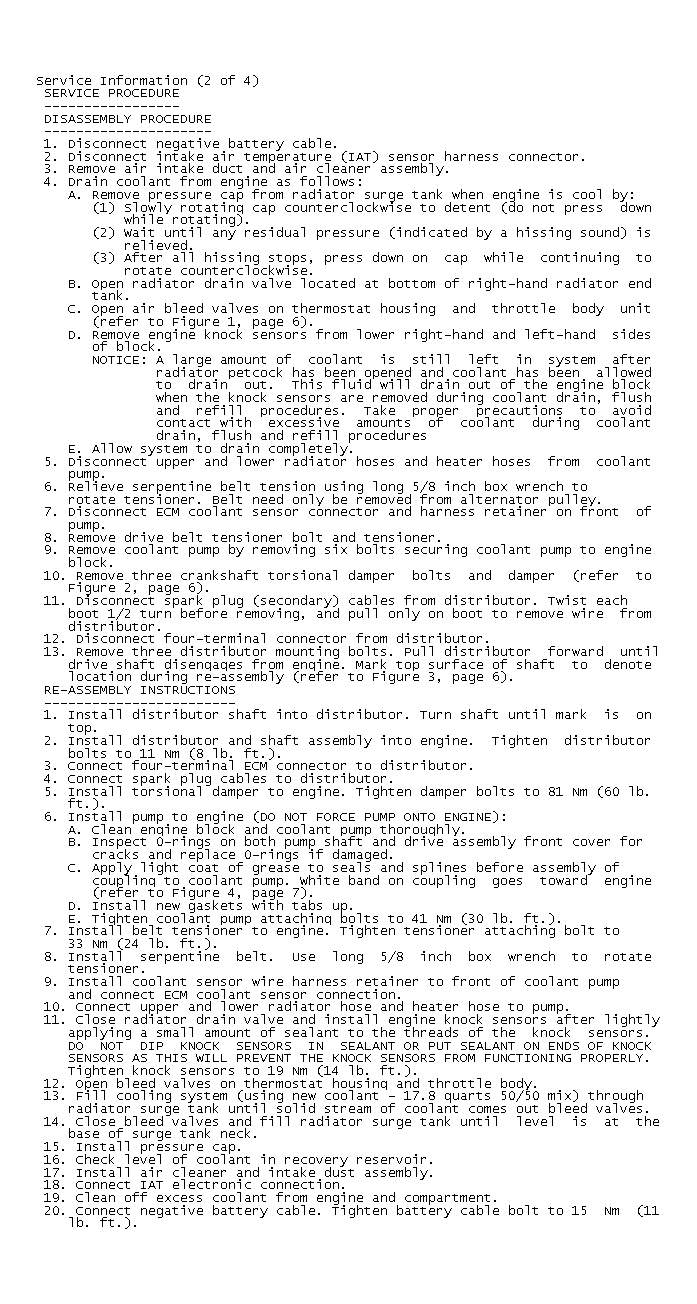

Fig 6: Service Information (2 of 4)
GB0025705

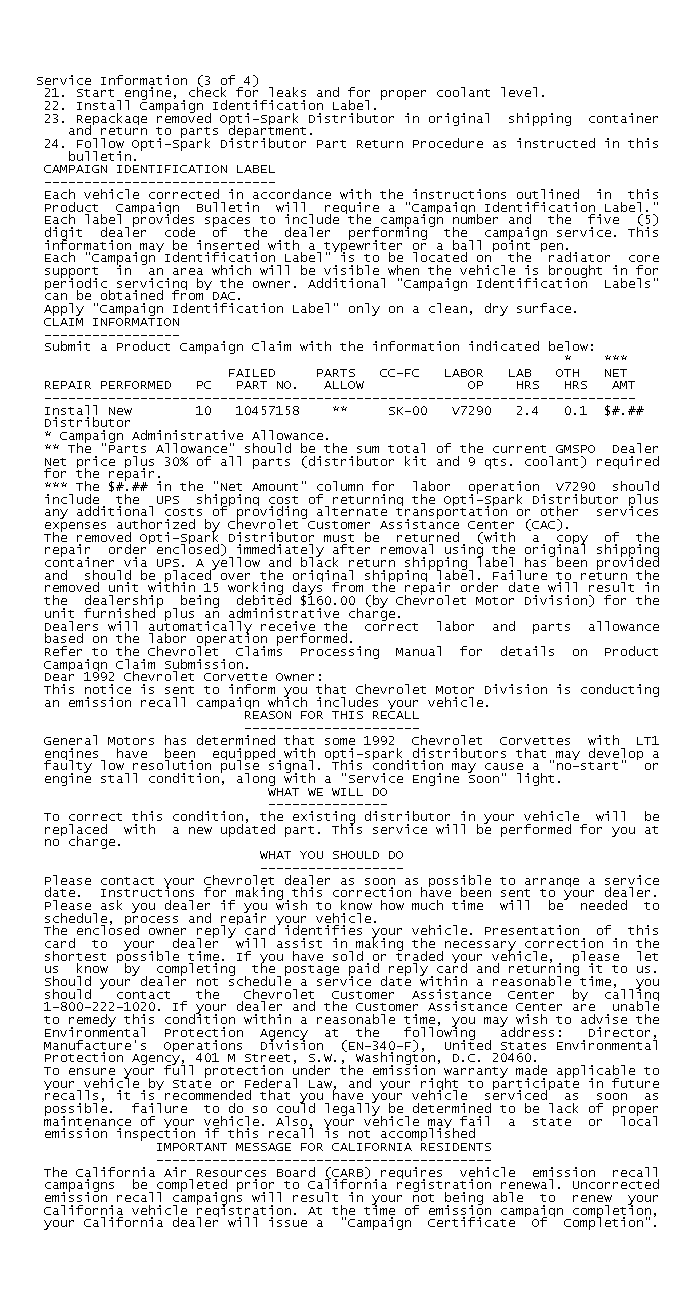

Fig 7: Service Information (3 of 4)
GB0025706

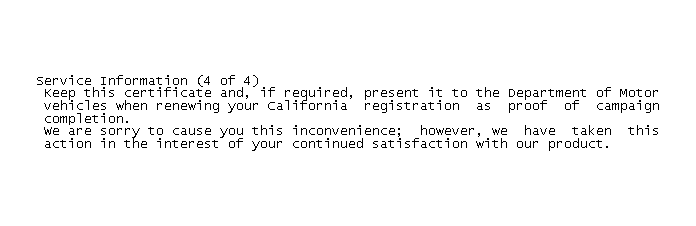

Fig 8: Service Information (4 of 4)
GB0025707
